With Manufacturer's Scan Tool

DTC Clearance




Using SUZUKI Scan Tool
1. Turn ignition switch to OFF position.

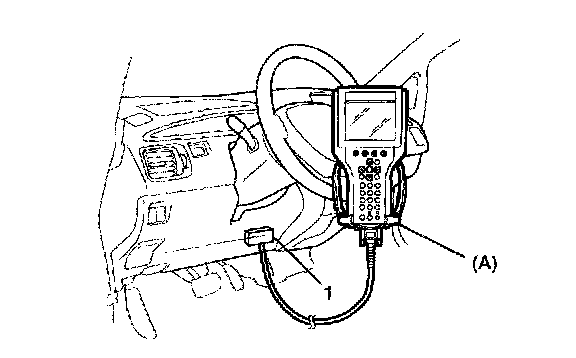

2. Connect SUZUKI scan tool to data link connector (DLC) (1) in the same manner as when making this connection for DTC check.

Special tool
(A): SUZUKI scan tool

3. Turn ignition switch to ON position.
4. Erase DTC according to instructions displayed on SUZUKI scan tool. Refer to SUZUKI scan tool operator's manual for further details.
5. After completing the check, turn ignition switch to OFF position and disconnect SUZUKI scan tool from DLC.
6. Perform "DTC Check"and confirm that normal DTC (NO CODES) is displayed and not malfunction DTC.

NOTE: If DTC B1051, B1058 or B1071 is stored in SDM, it is not possible to clear it.
