Throttle Body: Diagrams

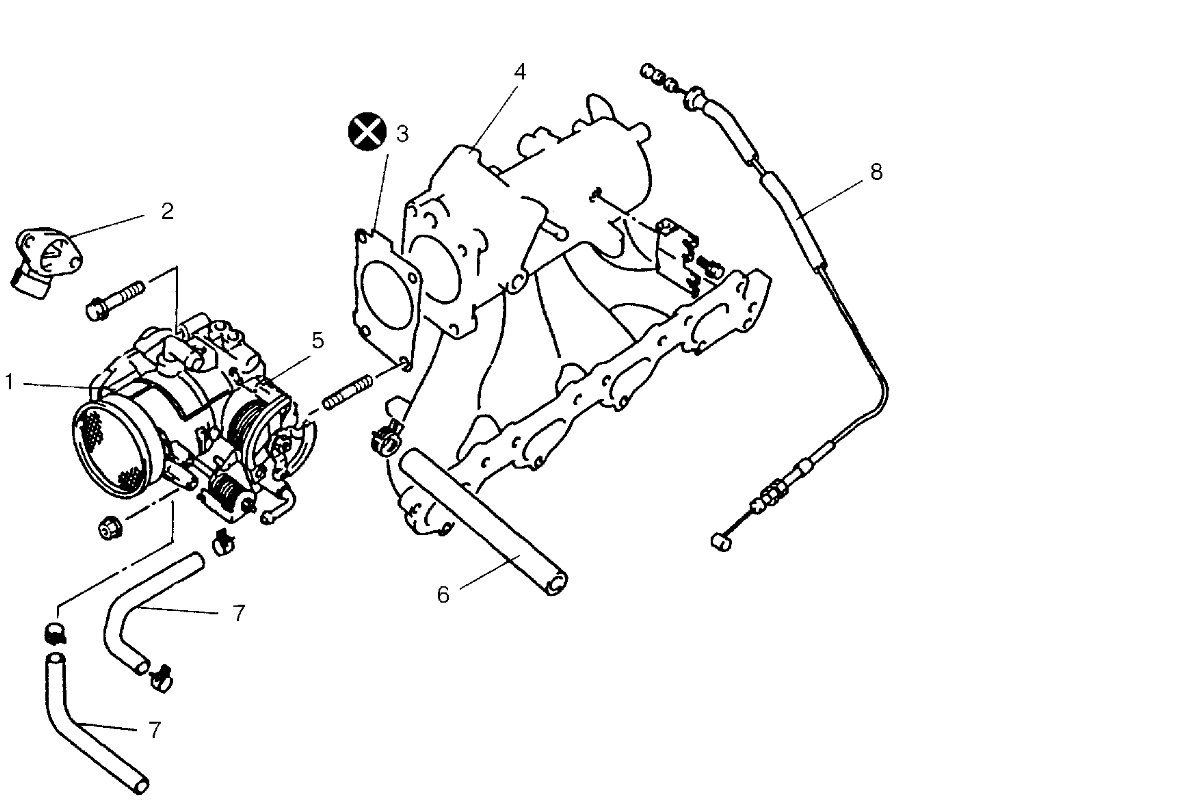

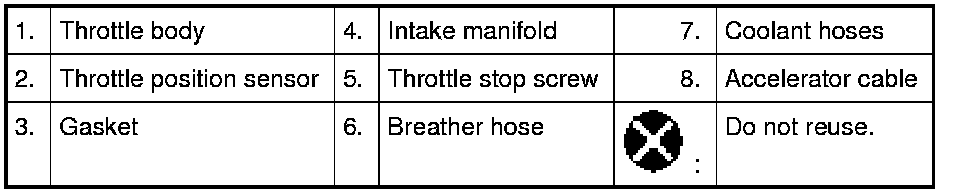

Throttle Body Components
CAUTION:
- Do not remove or adjust throttle stop screw as it is factory adjusted precisely.
- Do not put finger or any other object into MAF sensor and keep away from net.
- Do not remove MAF sensor from throttle body. These spoil its original performance.
