OBD System Description - Comprehensive Component Monitor (AT Output)

OBD System Description - Comprehensive Component Monitor (AT Output)

DTC Description / Detecting Condition / Confirmation Procedure

P2763

Refer to P2763 DTC P2763 (No.25): TCC Pressure Control Solenoid Control Circuit High.

P2764

Refer to P2764 DTC P2764 (No.26): TCC Pressure Control Solenoid Control Circuit Low.

P0973, P0976

Refer to P0973 DTC P0973 / P0976 (No.22 / No.24): Shift Solenoid-A (No.1) Control Circuit Low / Shift Solenoid-B (No.2) Control Circuit Low.

P0974, P0977

Refer to P0974 DTC P0974 / P0977 (No.21 / No.23): Shift Solenoid-A (No.1) Control Circuit High / Shift Solenoid-B (No.2) Control Circuit High.

P0741, P0742

Refer to P0741 DTC P0741 / P0742 (No.28): TCC Circuit Performance or Stuck OFF / Stuck ON.

P0751, P0752, P0756, P0757

Refer to P0751 DTC P0751 / P0752 / P0756 / P0757 (No.17 / No.17 / No.28 / No.28): Shift Solenoid-A (No.1) Performance or Stuck OFF / Shift Solenoid-A (No.1) Stuck ON / Shift Solenoid-B (No.2) Performance or Stuck OFF / Shift Solenoid-B (No.2) Stuck ON.

TCC Solenoid Circuit Monitor

Operation





Enable condition





Typical malfunction thresholds

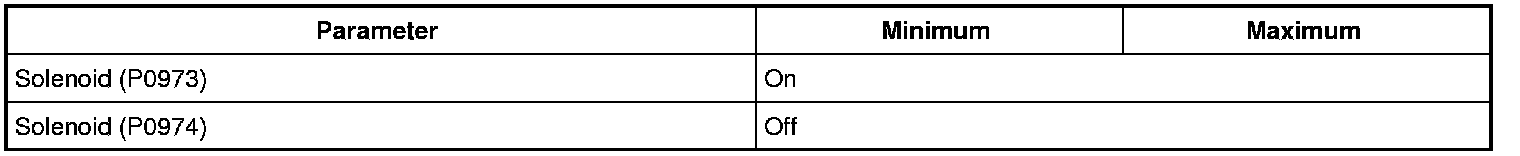

Shift Solenoid #1 Circuit Monitor

Operation





Enable condition

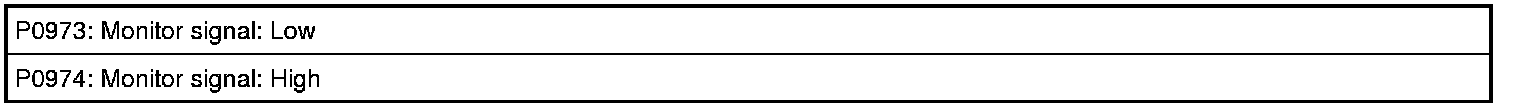

Typical malfunction thresholds

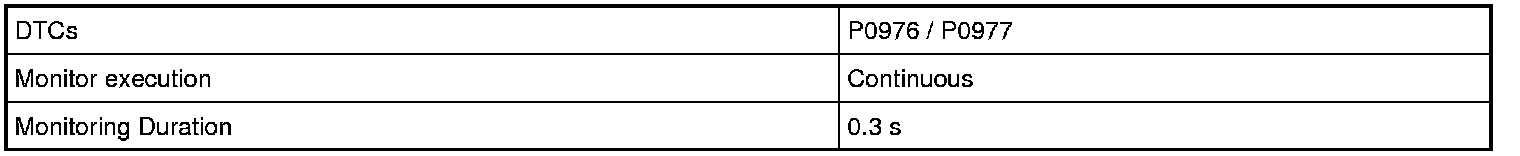

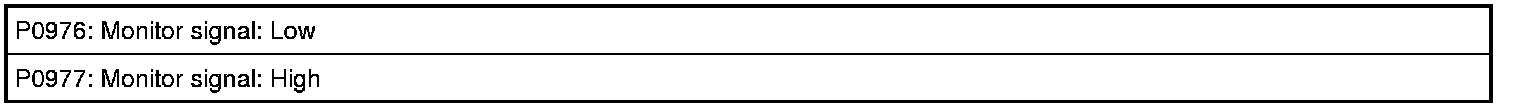

Shift Solenoid #2 Circuit Monitor

Operation





Enable condition





Typical malfunction thresholds

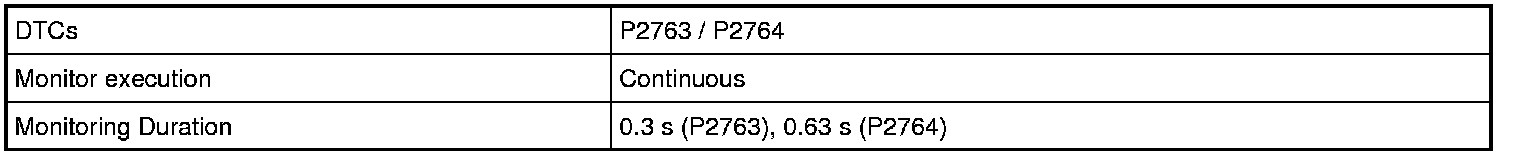

Pressure Control Solenoid Circuit Monitor

Operation





Enable condition

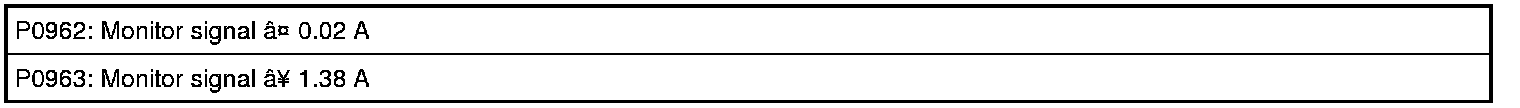

Typical malfunction thresholds

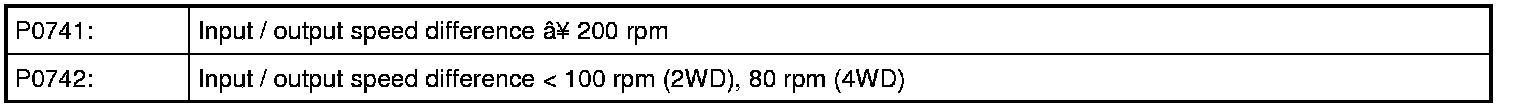

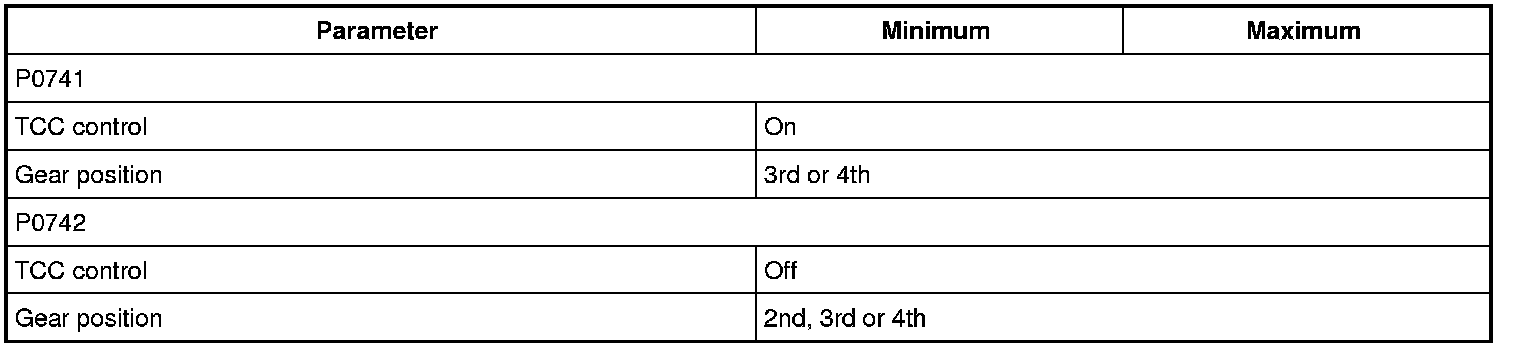

TCC Solenoid Rationality Monitor

Monitoring procedure

TCM (PCM) monitors operation (engagement condition) of TCC in response to ON/OFF command to the TCC solenoid using input and output speed sensor signals.

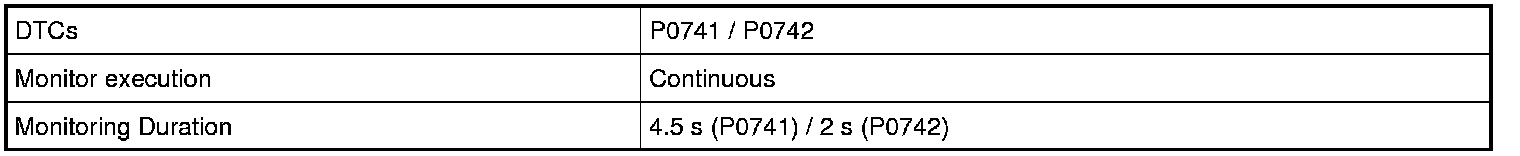

Operation

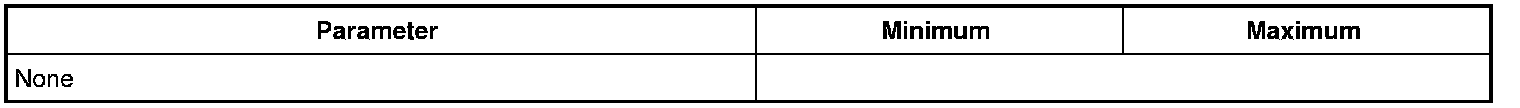

Enable condition





Typical malfunction thresholds






Shift Solenoid #1 Rationality Monitor

Monitoring procedure

TCM (PCM) calculates the actual transmission gear ratio from input and output speed sensor signals and monitor it. TCM (PCM) detects a trouble when the actual transmission gear ratio is not equal to the ratio of each gear as commanded by TCM (PCM).

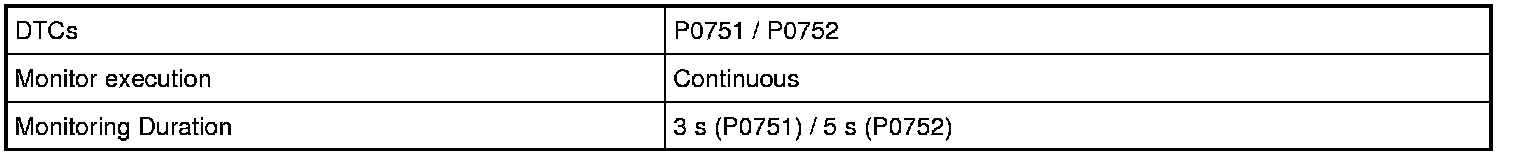

Operation





Enable condition

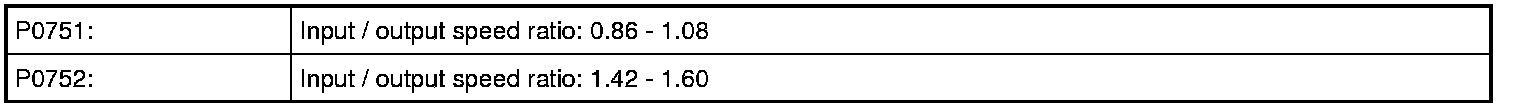

Typical malfunction thresholds

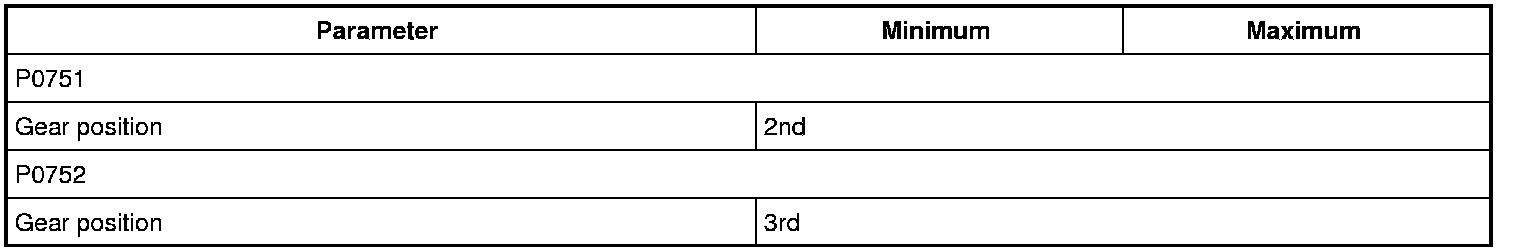

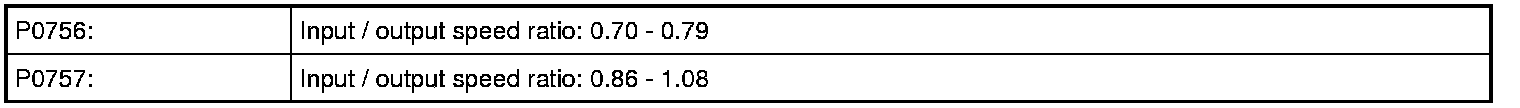

Shift Solenoid #2 Rationality Monitor

Monitoring procedure

TCM (PCM) calculates the actual transmission gear ratio from input and output speed sensor signals and monitor it. TCM (PCM) detects a trouble when the actual transmission gear ratio is not equal to the ratio of each gear as commanded by TCM (PCM).

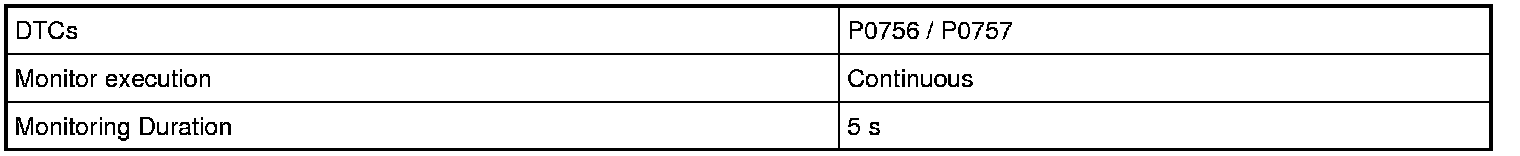

Operation





Enable condition





Typical malfunction thresholds
