Control Assembly: Testing and Inspection

Heater Controller Inspection

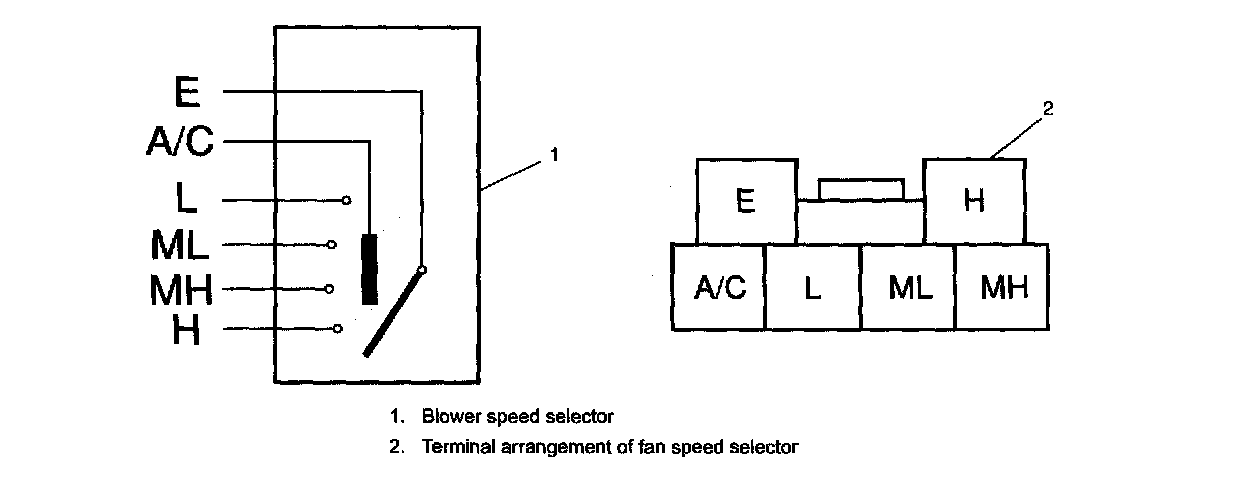

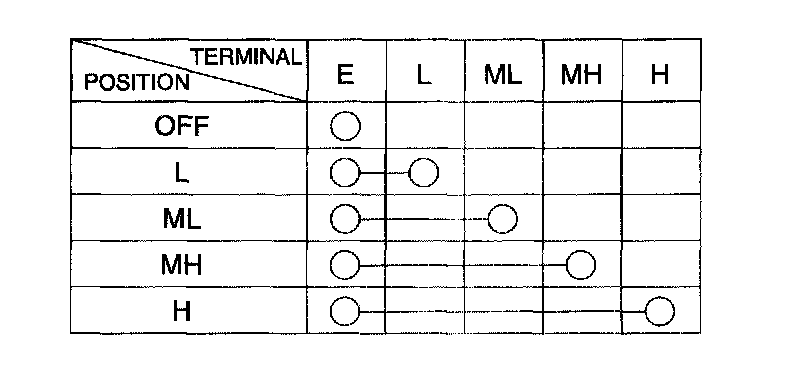

- Check blower speed selector for each terminal to terminal continuity. If check result is not as specified, replace.

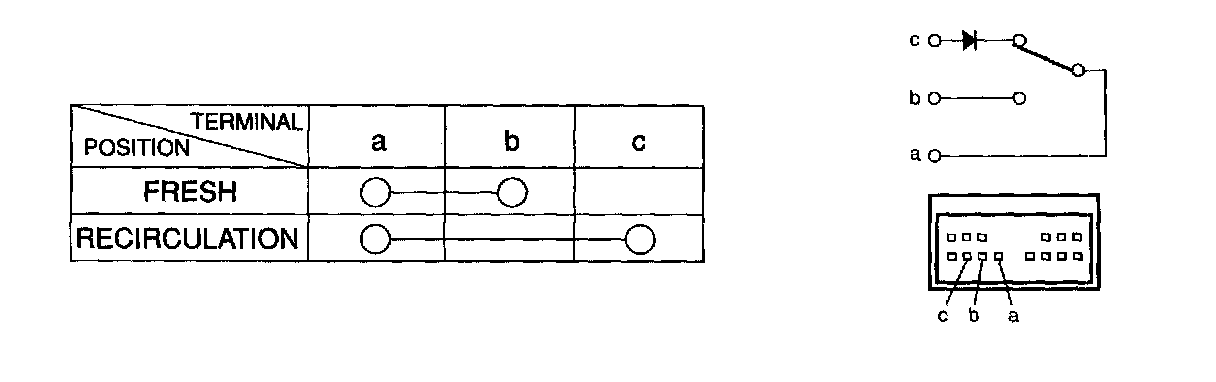

- Check air inlet selector for each terminal to terminal continuity. If check result is not as specified, replace.
