Air Door Actuator / Motor: Service and Repair
Air Inlet Actuator Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove blower unit by referring to "Blower Unit-Removal and Installation:".

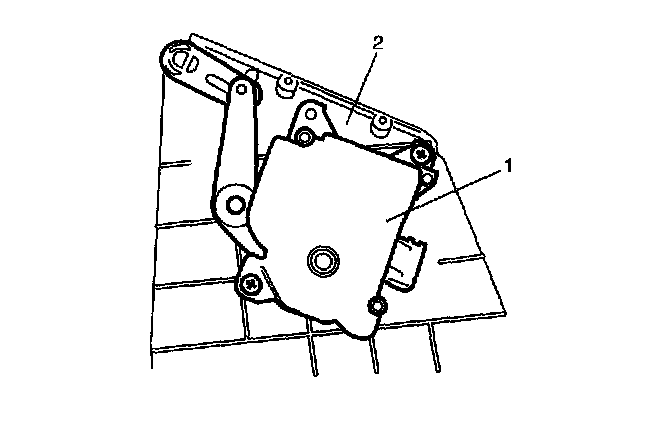

3. Remove air inlet actuator (1) from blower unit (2).
Installation
Reverse removal procedure for installation.
