Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Lamps and Indicators - Cooling System >> Temperature Gauge >> Testing and Inspection

Temperature Gauge: Testing and Inspection

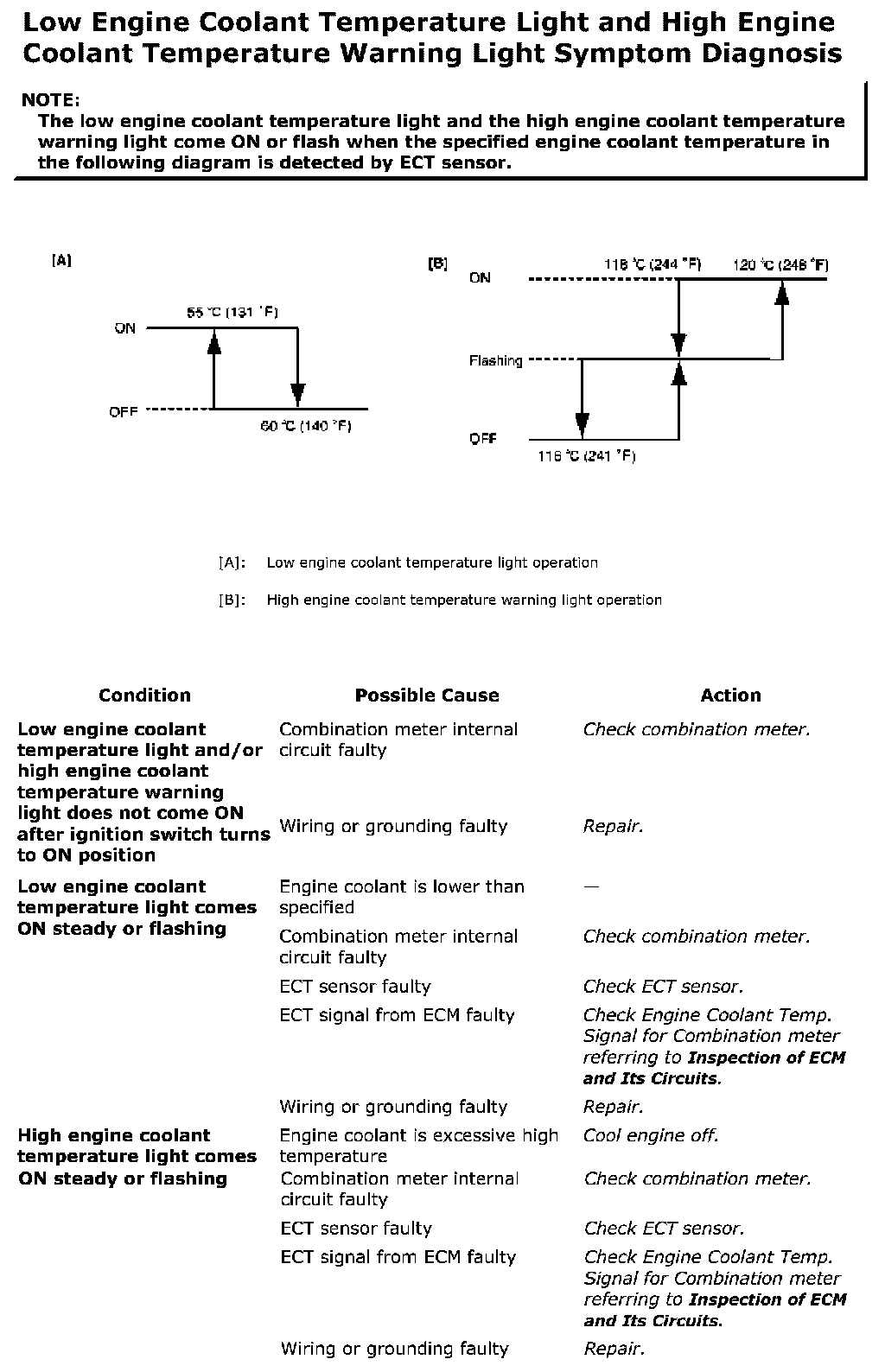

Low Engine Coolant Temperature Light And High Engine Coolant Temperature Warning Light Symptom Diagnosis:
