Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Rear Cross-Member

Rear Cross-Member

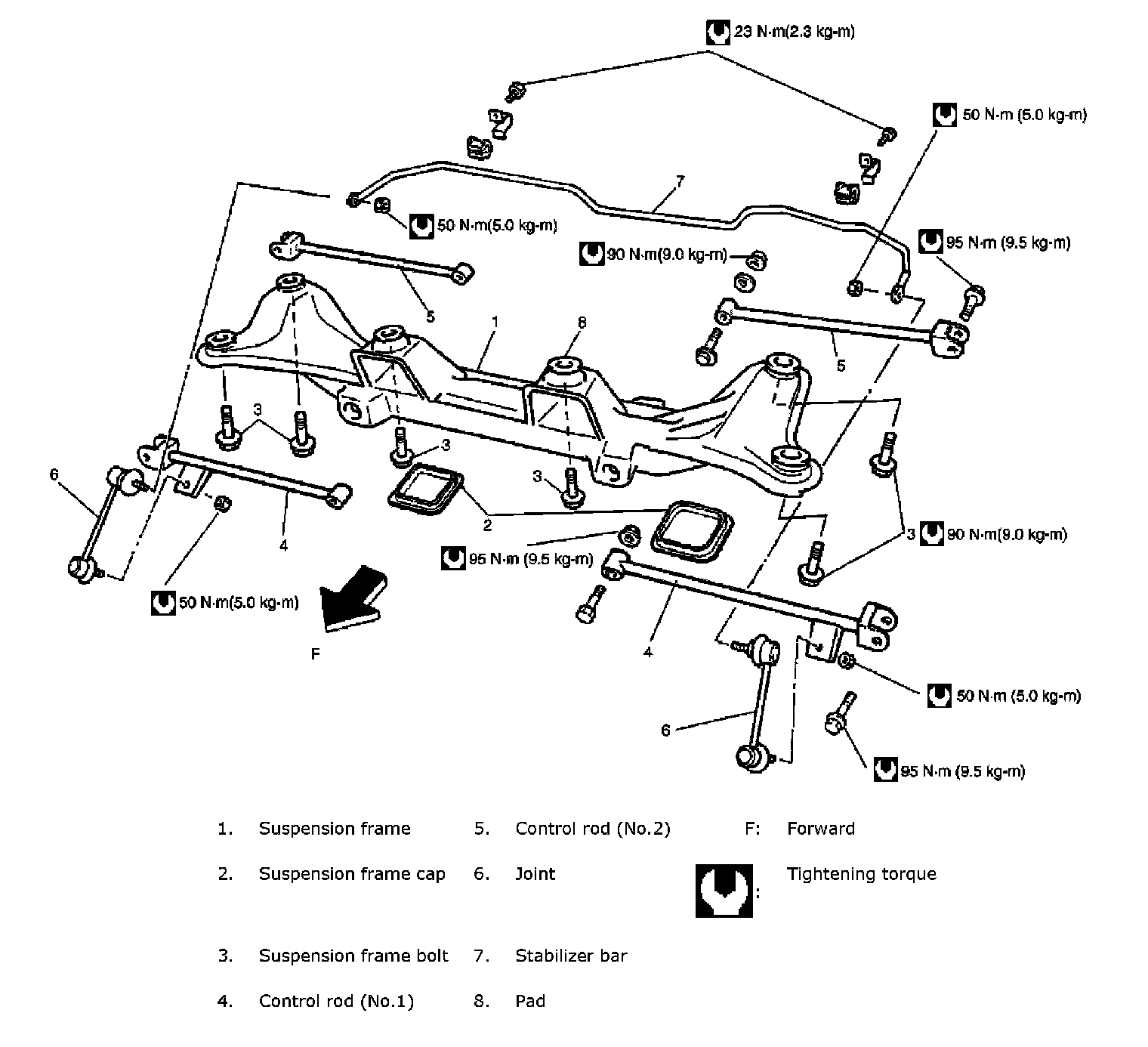

Rear Suspension Frame Components





2WD Model





4WD Model
