Aerio AWD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
G Connectors

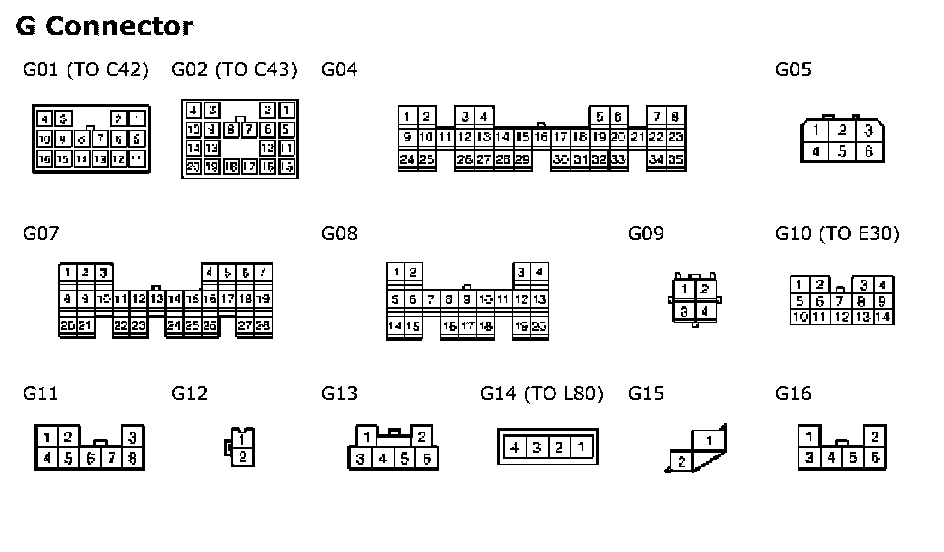

G01 (To C42) - G16:

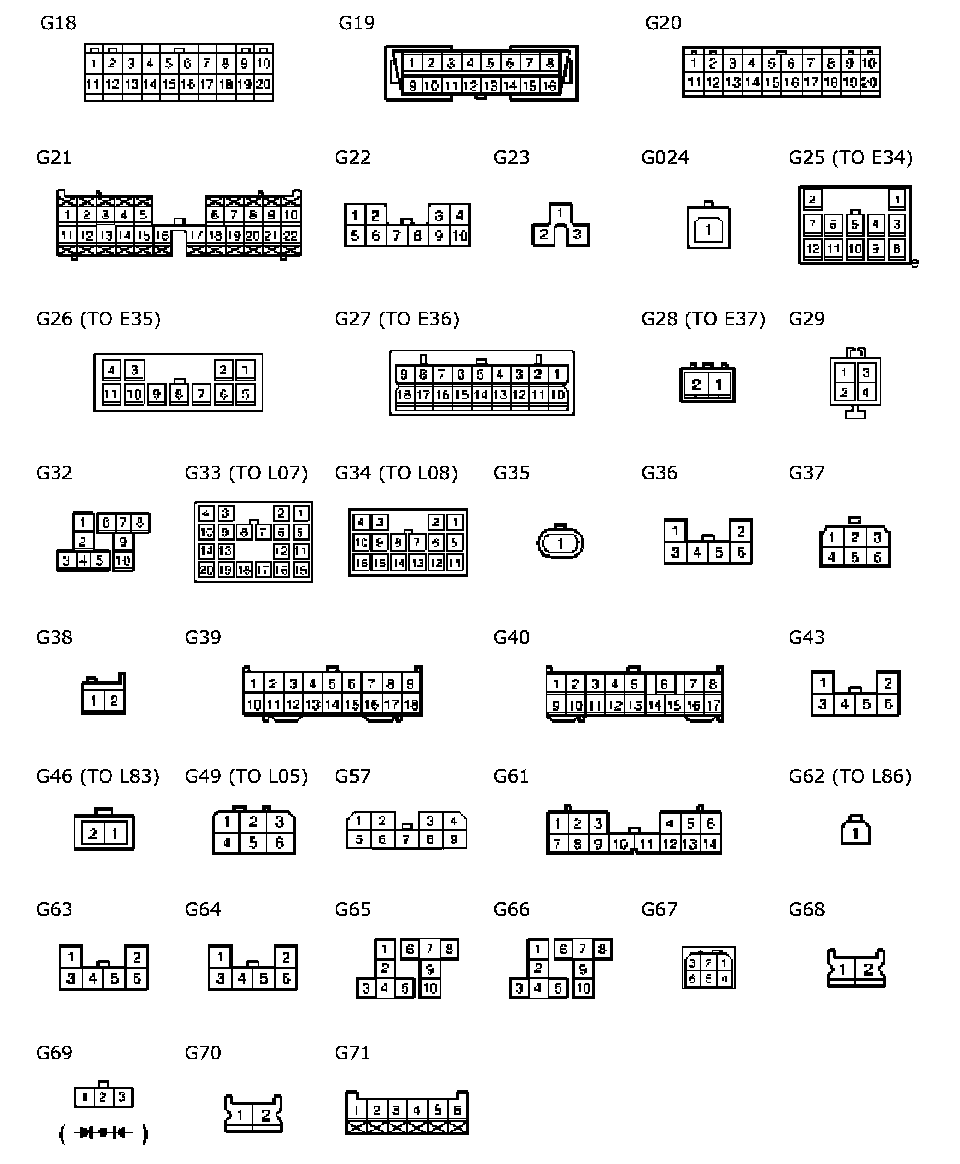

G18 - G71:
