Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> Stop Lamp Switch With Pedal Position Switch Circuits Check

Stop Lamp Switch With Pedal Position Switch Circuits Check

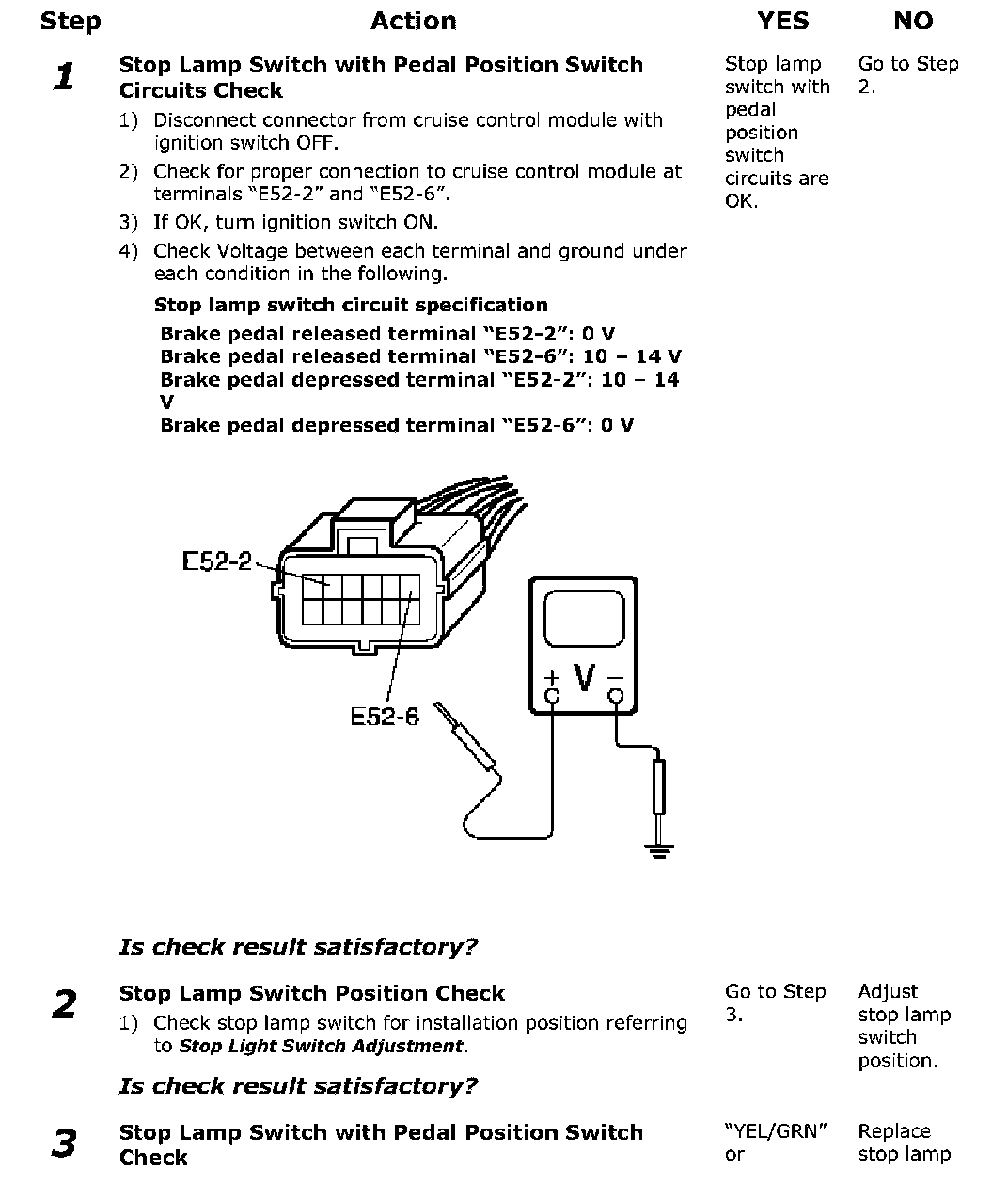

Step 1 - 3:

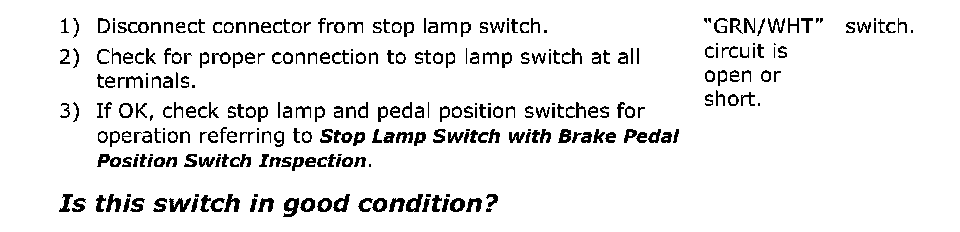

Step 3 (Cont'd):
