Cruise ON/OFF, Set/Coast, Resume/Accel and Cancel Switches
Cruise ON/OFF, Set/Coast, Resume/Accel and Cancel Switches

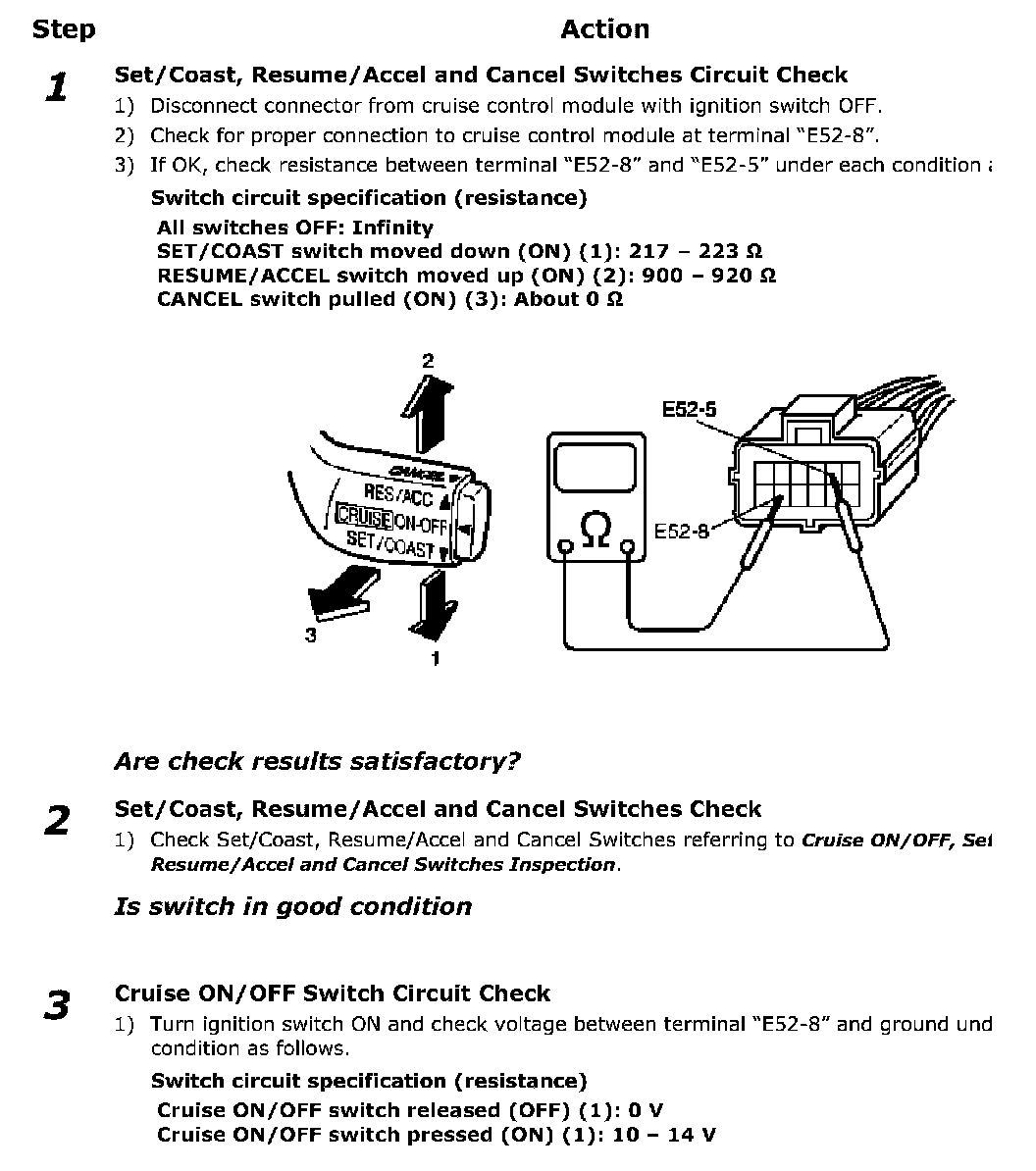

Step 1 - 3:

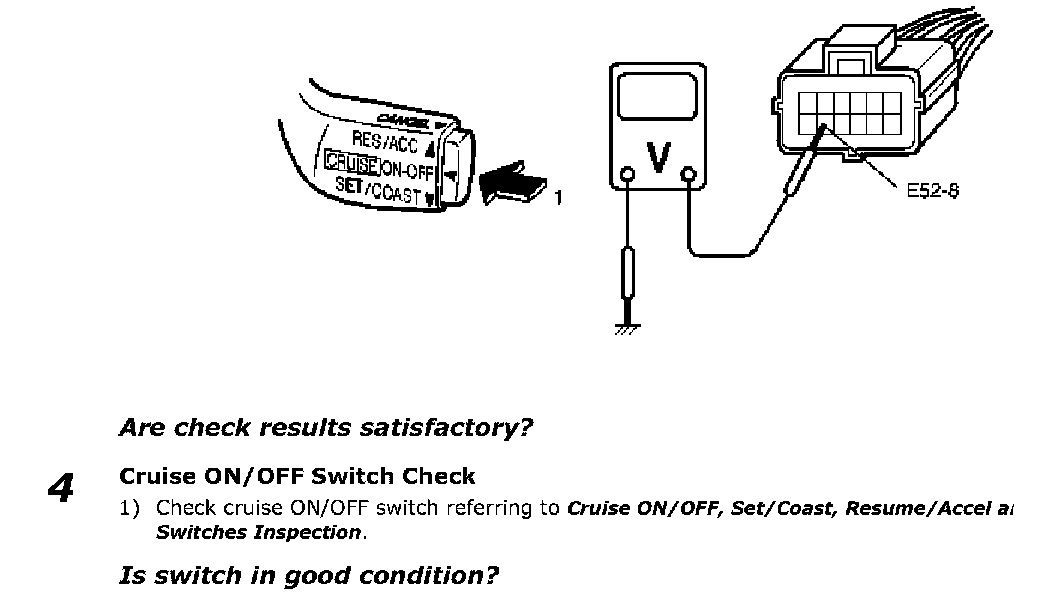

Step 3 (Cont'd) - 4:
Cruise ON/OFF, Set/Coast, Resume/Accel and Cancel Switches Circuits Check
