Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

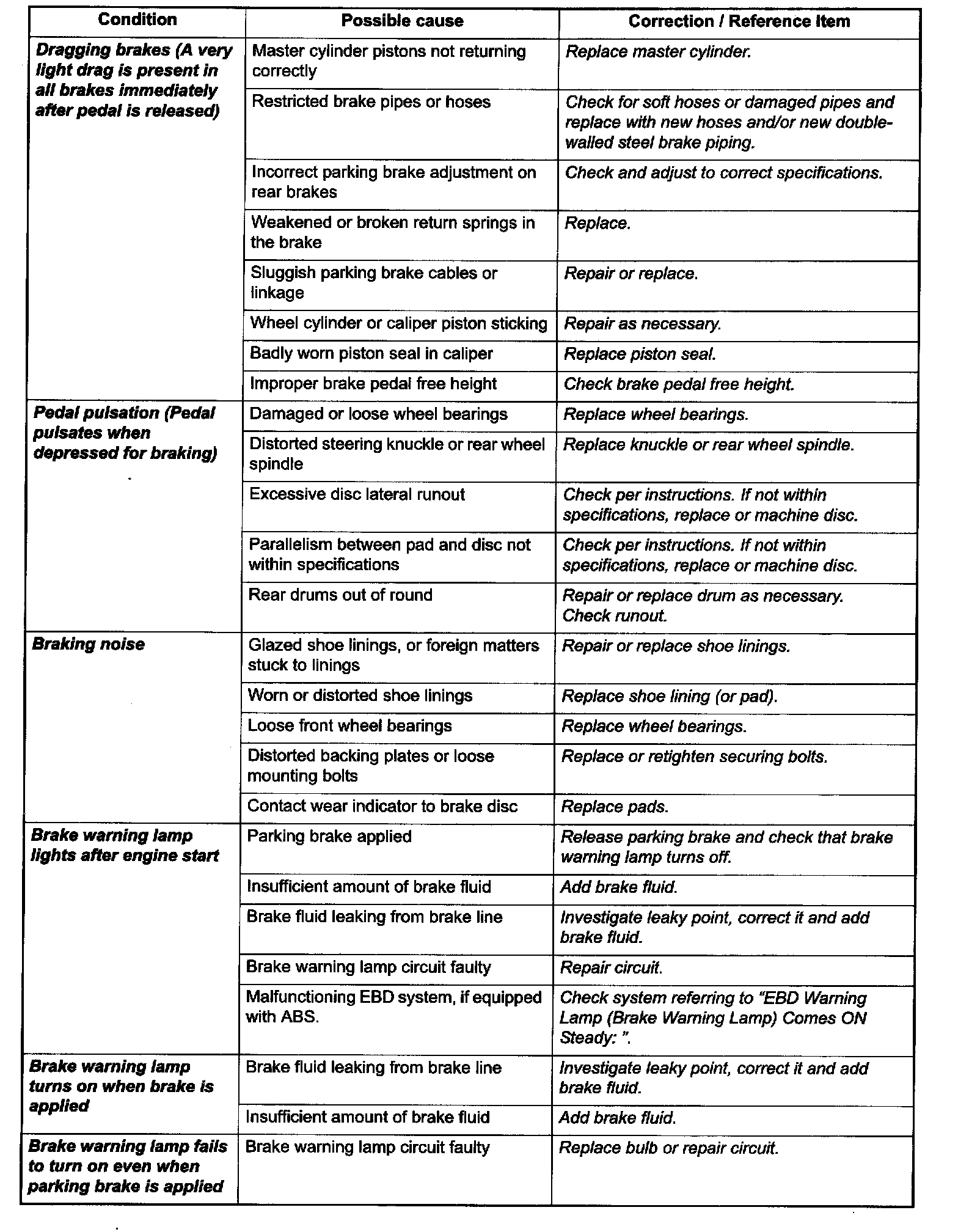

Brakes Symptom Diagnosis





Part 1 of 4





Part 2 of 4





Part 3 of 4





Part 4 of 4
