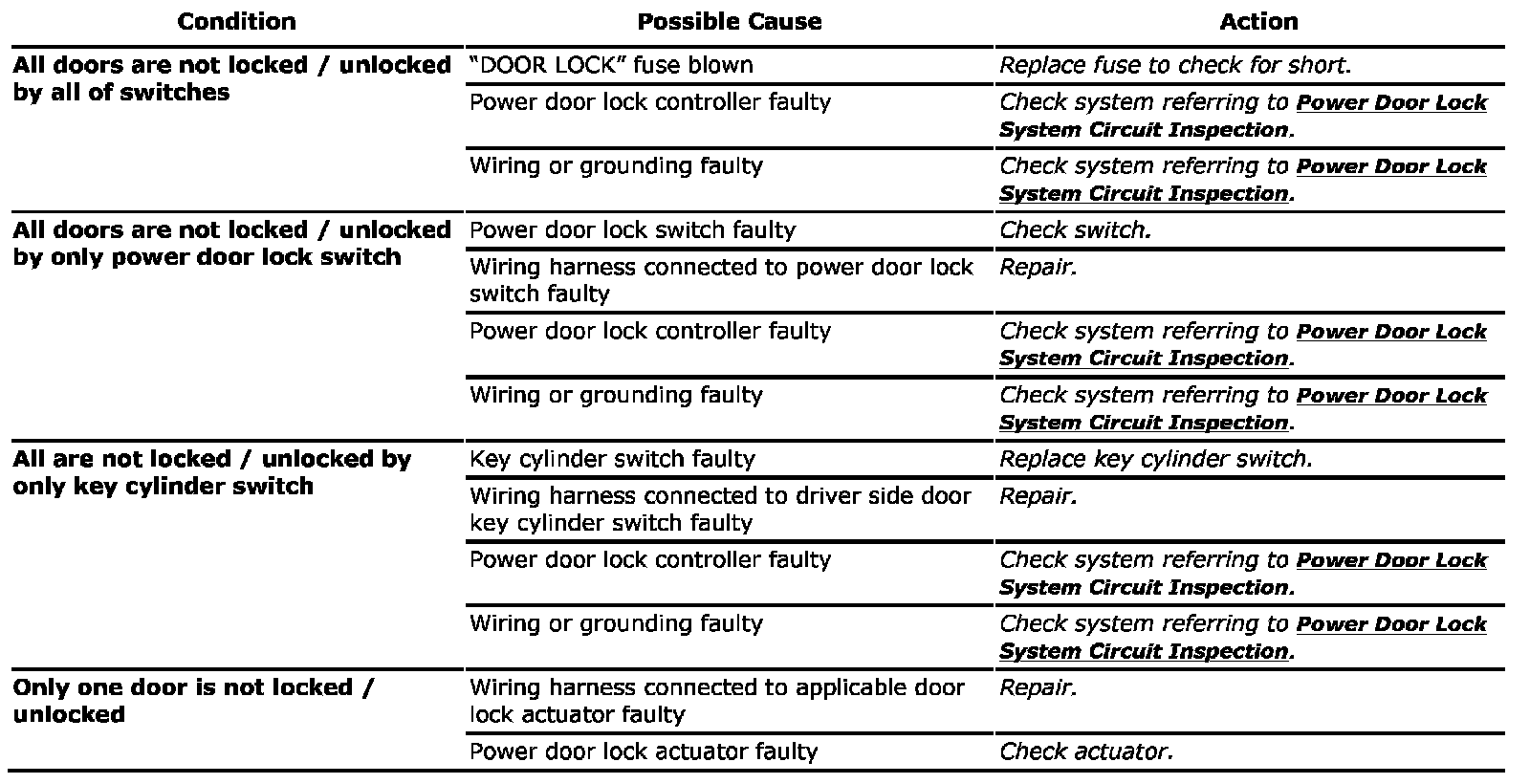

Power Door Lock System (If Equipped) Symptom Diagnosis
NOTE:
Fuse name (" ") is shown on the fuse box cover.
