Right Case

DISASSEMBLY





1. Remove differential gear assembly from right case.

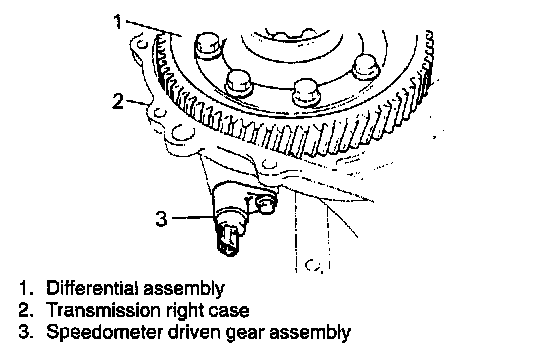

2. Remove bolt and then pull out speedometer driven gear.

CAUTION: Be careful not to damage speedometer driven gear case when removing it.

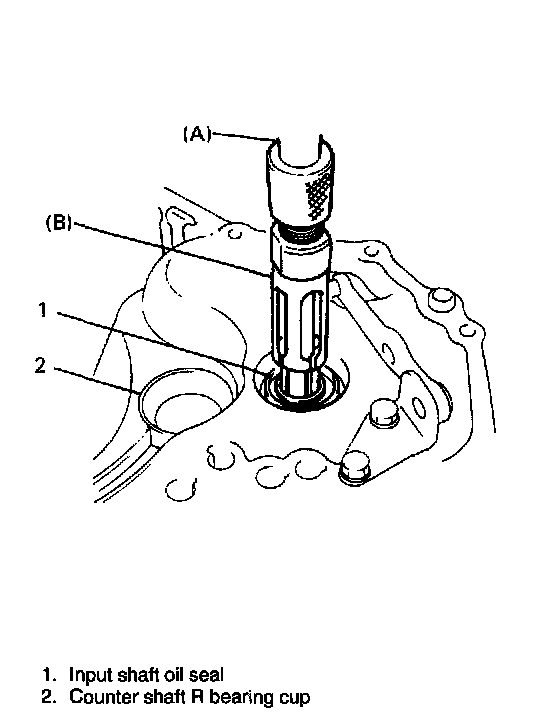

3. Remove input shaft oil seal by using special tools (combination of bearing remover and sliding shaft).
Special Tools
(A): 09930-30102
(B): 09923-74510
4. Also pull out counter shaft R bearing cup by using bearing remover 09941-64511 with sliding shaft 09930-30102.

NOTE: If input shaft R bearing has been left in right case, pull it out by using bearing remover 09923-73210 with sliding shaft 09930-30102.

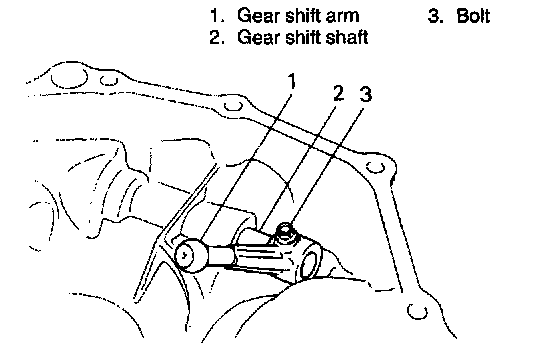

5. Remove bolt and then pull out gear shift arm.

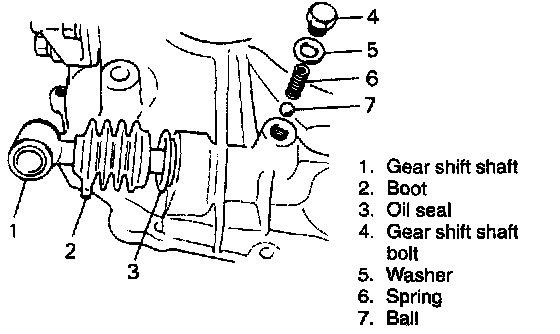

6. Remove gear shift shaft bolt with washer, then take out spring and steel ball.
7. Remove gear shift shaft, boot and oil seal.
8. Remove differential side R oil seal from right case.
