Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom to Diagnosis Table-2 (Valve Mechanism Diag. Table)

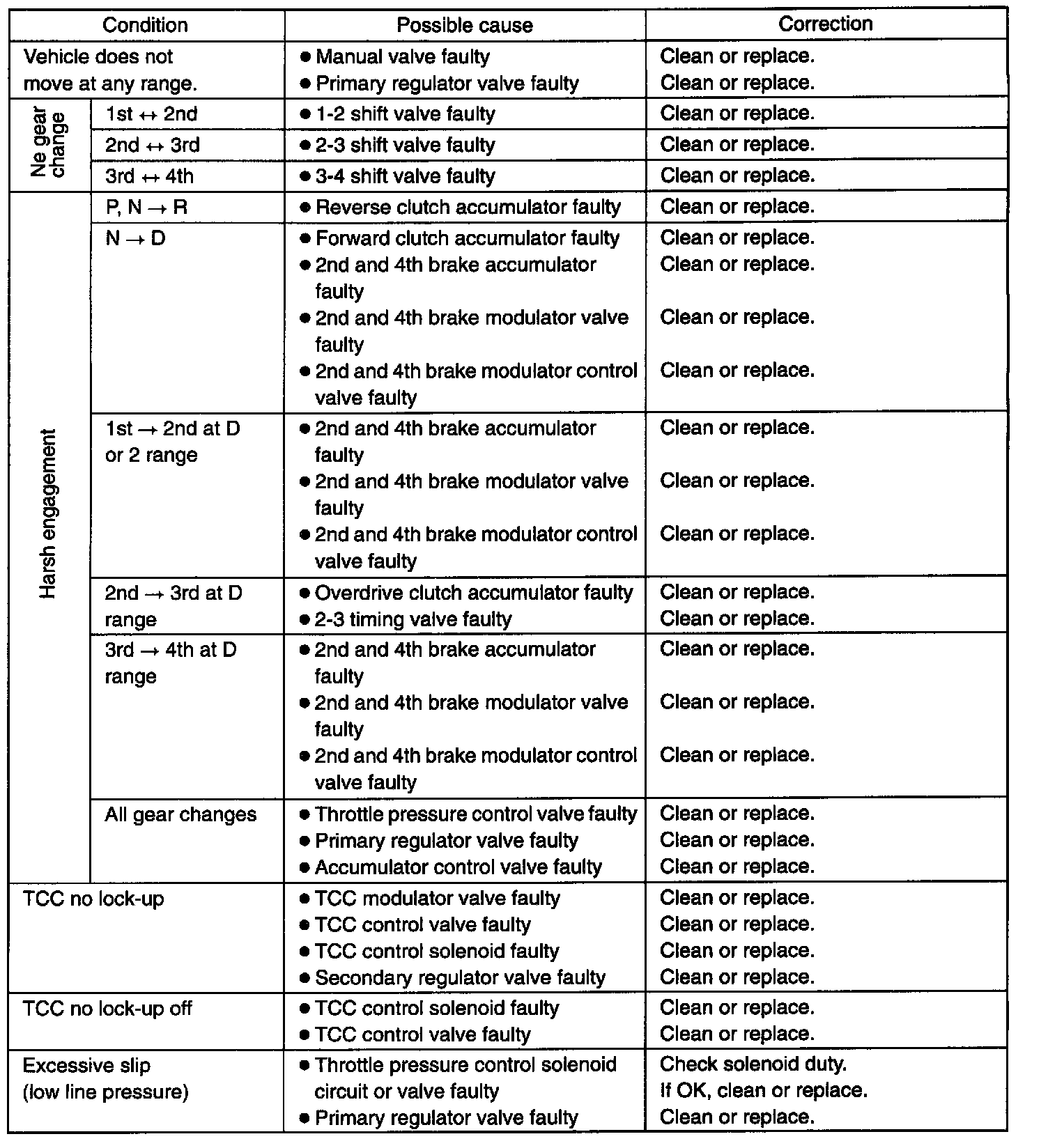

Symptom to Diagnosis Table-2 (Valve Mechanism Diag. Table)
