Symptom to Diagnosis Table-1 (Electrical Circuit Diag. Table)

SYMPTOM-TO-DIAGNOSIS TABLE
Perform troubleshooting referring to the following tables, according to Automatic transmission basic flow table when ECM and TCM have detected no malfunction DTC and no abnormality has been found in visual inspection. There are 3 tables, Table-1 (Electrical circuit diag. table), Table-2 (valve mechanism diag. table) and Table-3 (Clutches, brake, etc. diag. table). If malfunction part is not found in Table-1, proceed to Table-2 and then Table-3.

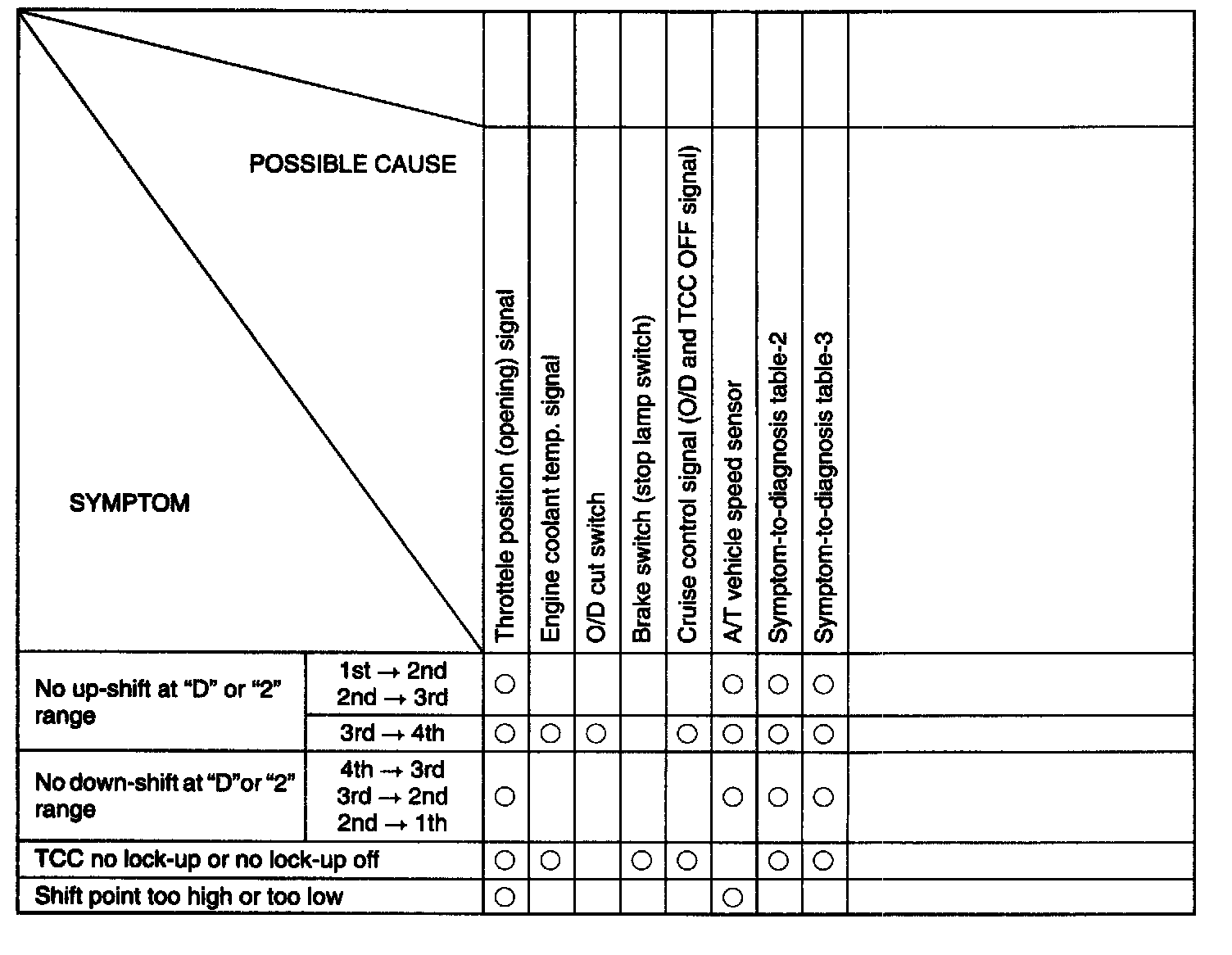

SYMPTOM-TO-DIAGNOSIS TABLE-1 (Electrical Circuit Diag. Table)
