Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Description of On-Board Diagnostics >> Fail Safe Operation

Fail Safe Operation

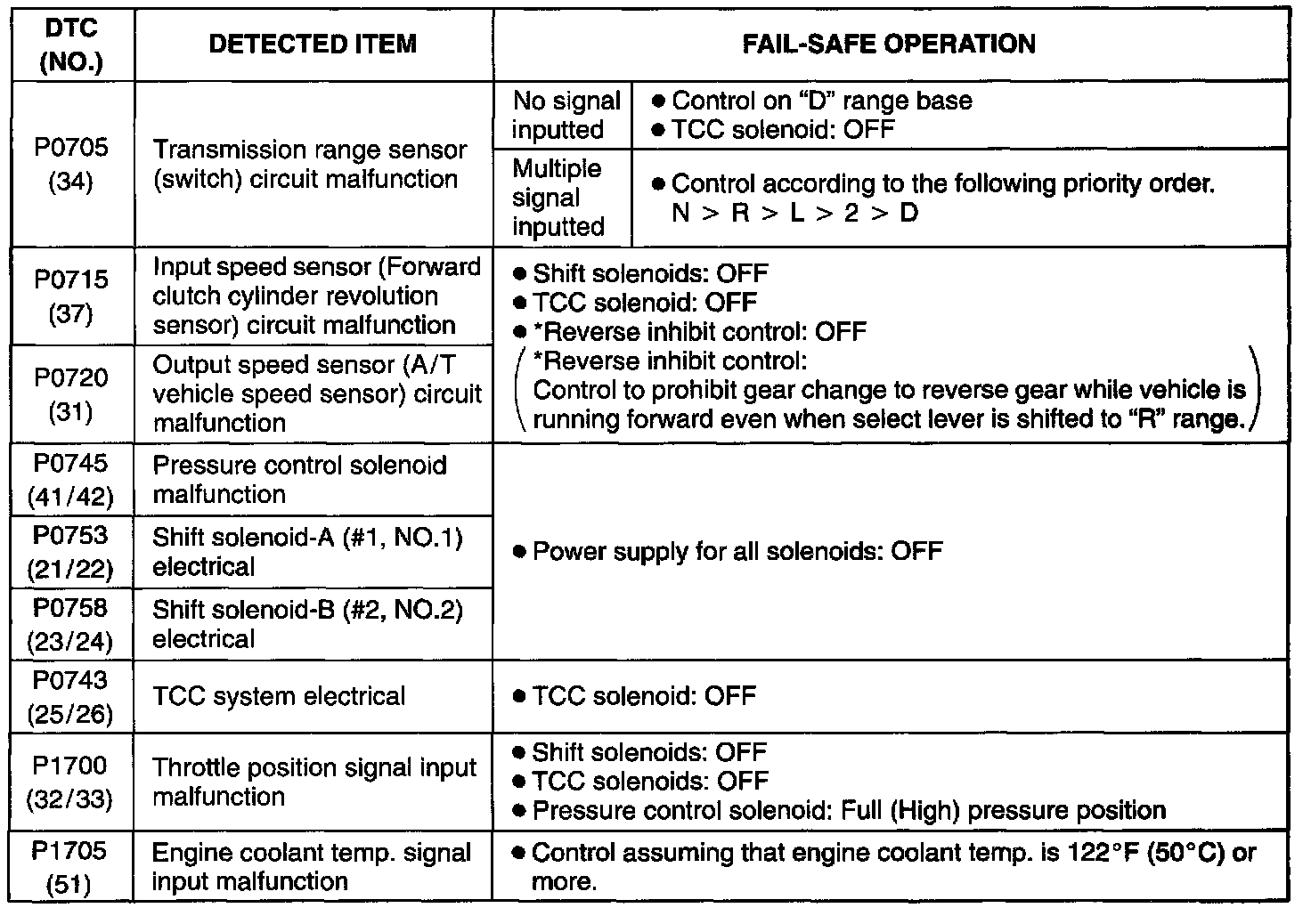

FAIL-SAFE TABLE
