Automatic Transmission Basic Check

AUTOMATIC TRANSMISSION BASIC CHECK

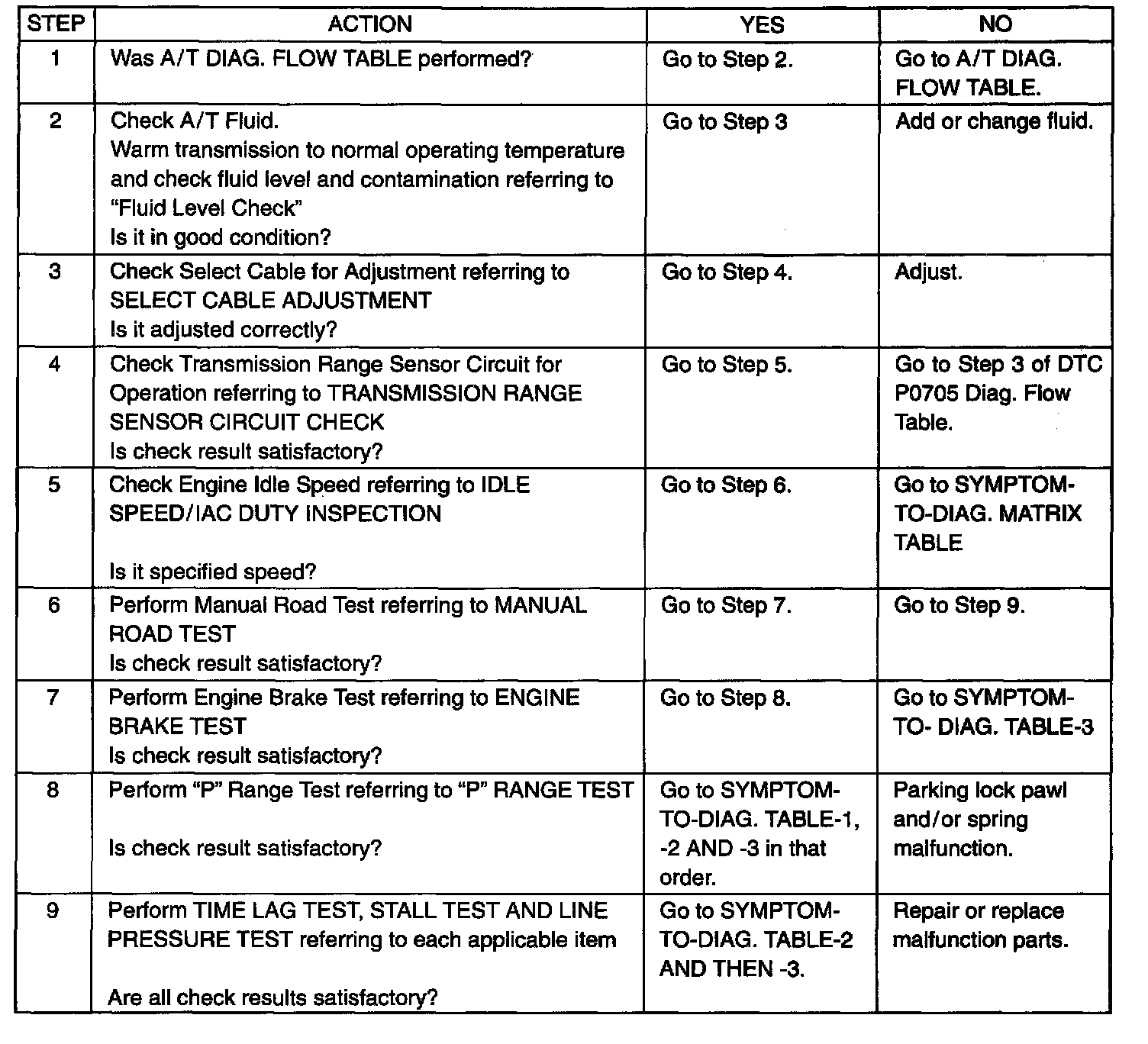

This check very important for troubleshooting when TCM and ECM has detected no malfunction DTC and no abnormality has been found in visual inspection. Follow the flow table carefully.
