Table B-3 Cruise Control Signal (O/D & TCC Off Signal) Check
Table B-3 Cruise Control Signal (O/D & TCC Off Signal) Check
TABLE B-3 CRUISE CONTROL SIGNAL (O/D AND TCC OFF SIGNAL) CIRCUIT CHECK, IF EQUIPPED

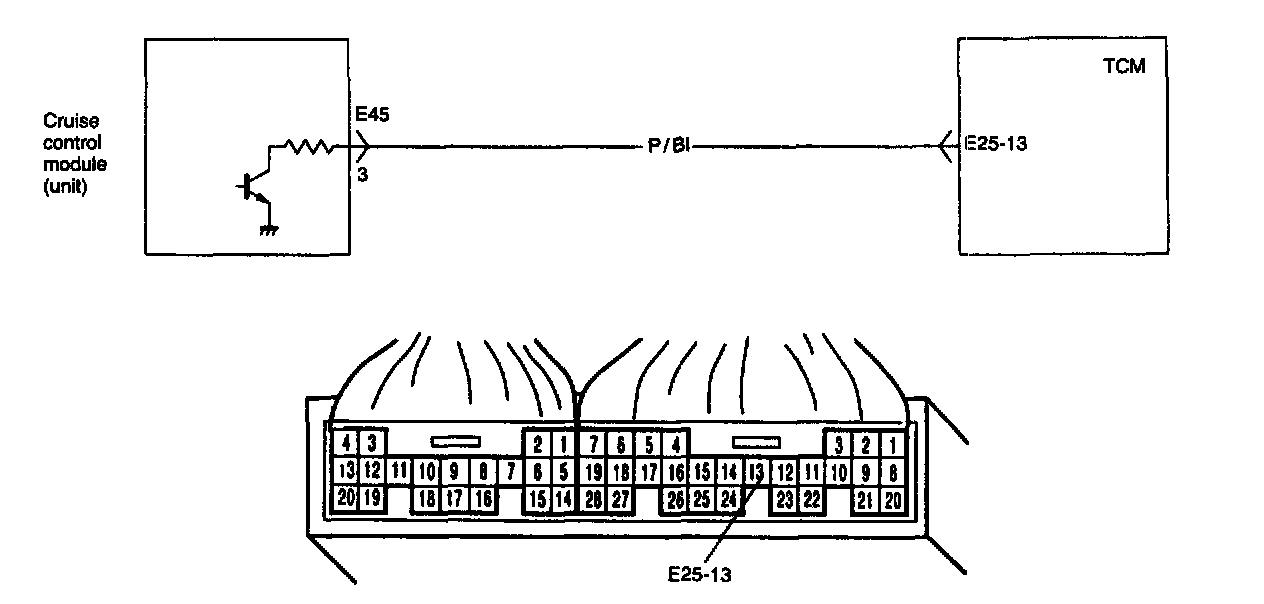

WIRING DIAGRAM

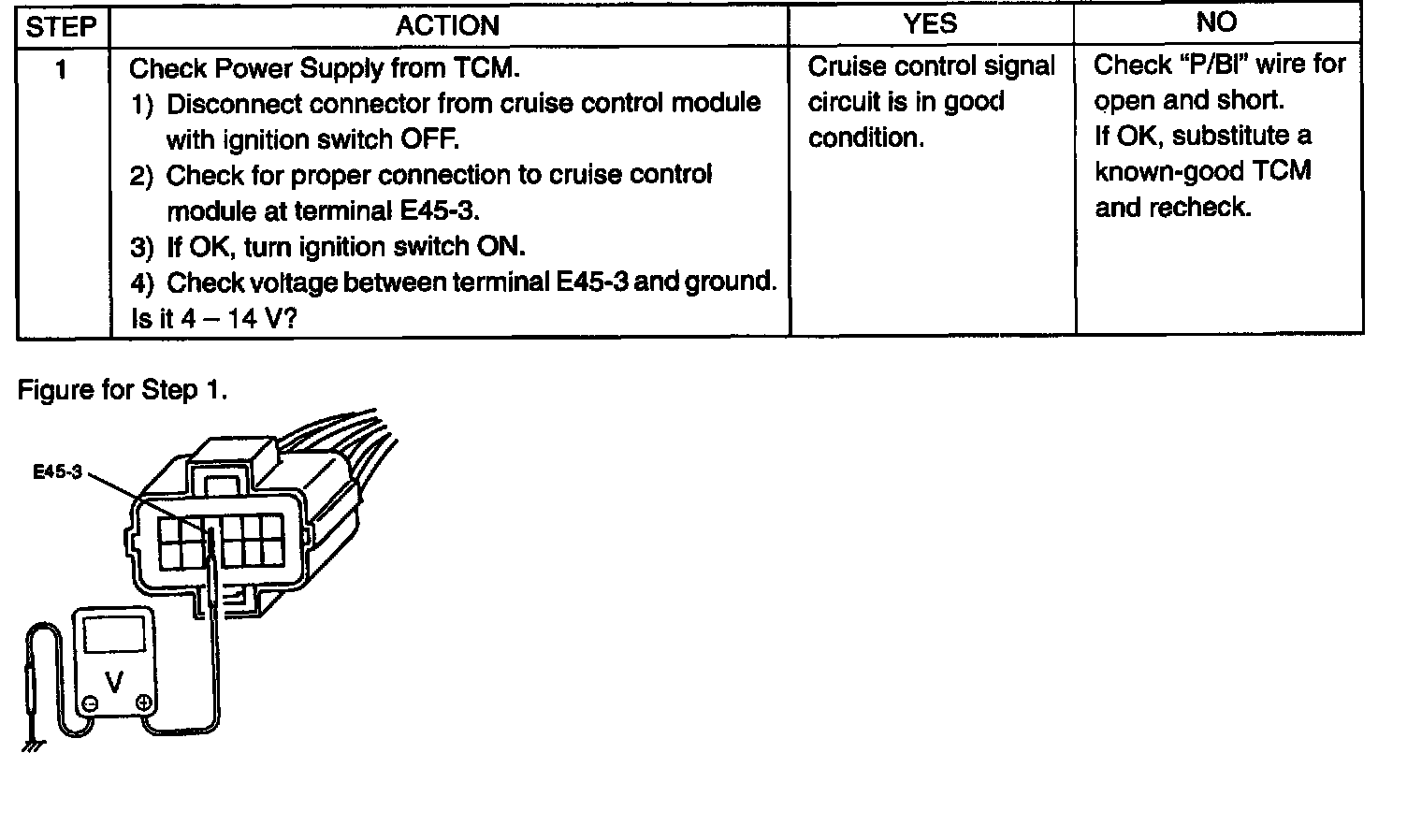

INSPECTION
