Table B-1 Overdrive (O/D) Cut Switch Circuit Check
Table B-1 Overdrive (O/D) Cut Switch Circuit Check
TABLE B-1 OVER-DRIVE (O/D) CUT SWITCH CIRCUIT CHECK

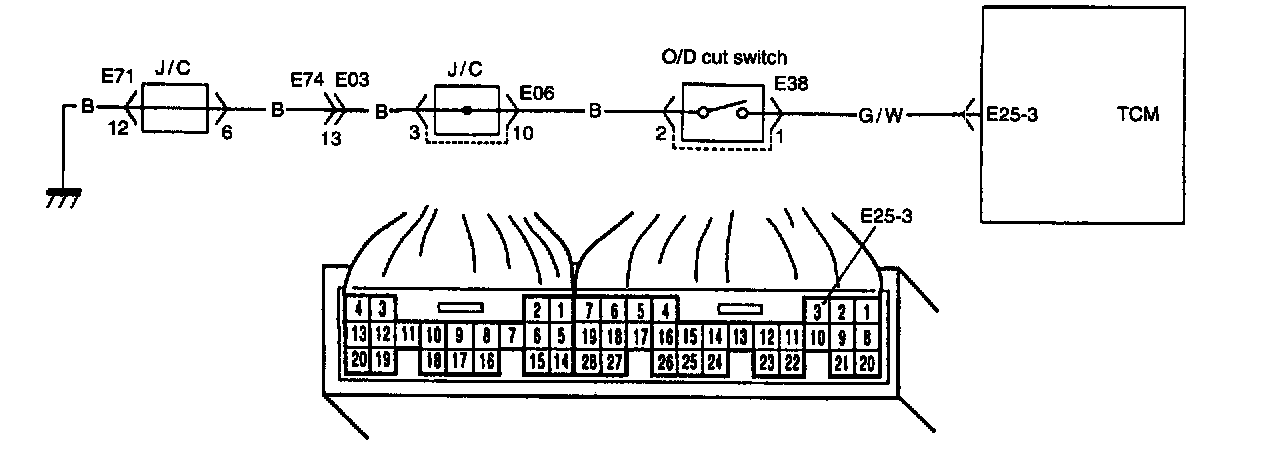

WIRING DIAGRAM

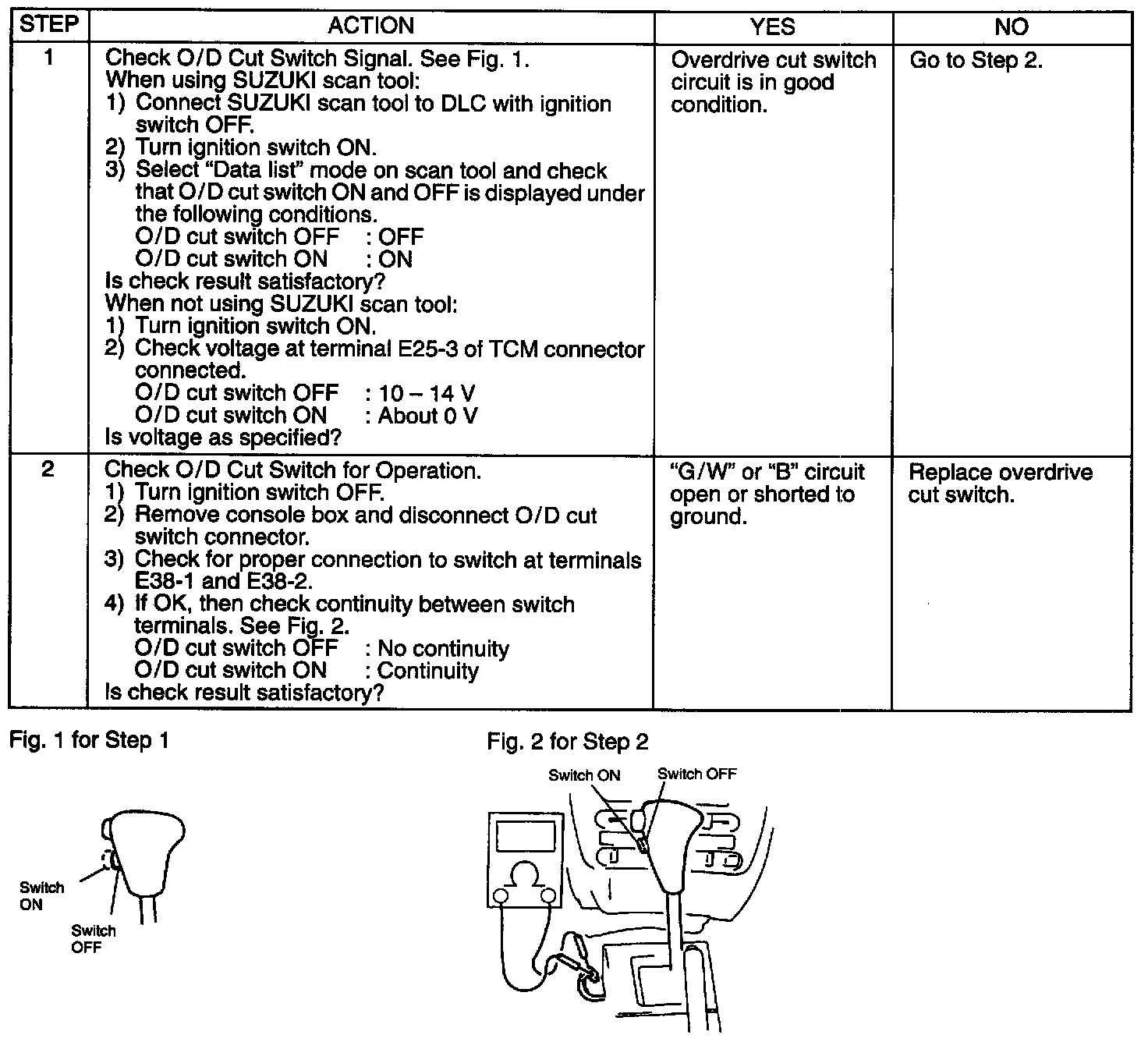

INSPECTION
