Brake Fluid Level Sensor/Switch: Testing and Inspection
BRAKE FLUID LEVEL SWITCH

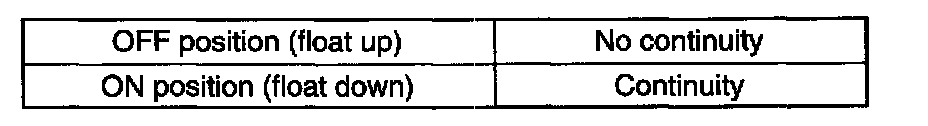

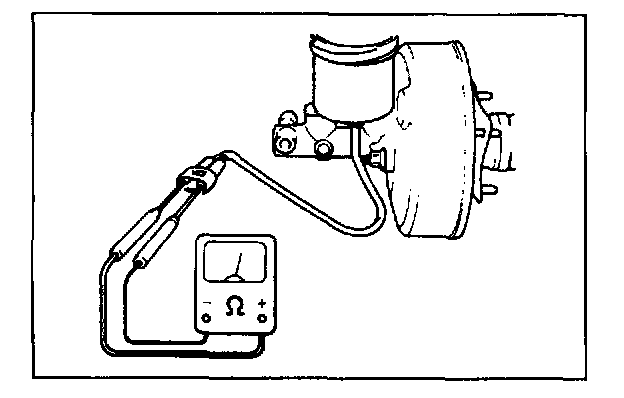

Use an ohmmeter to check switch for continuity.
If found defective, replace switch (reservoir).
