Sunroof / Moonroof Switch: Testing and Inspection

SLIDING ROOF SWITCH

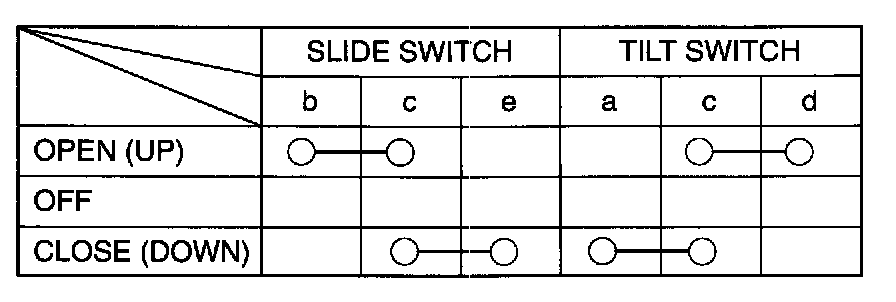

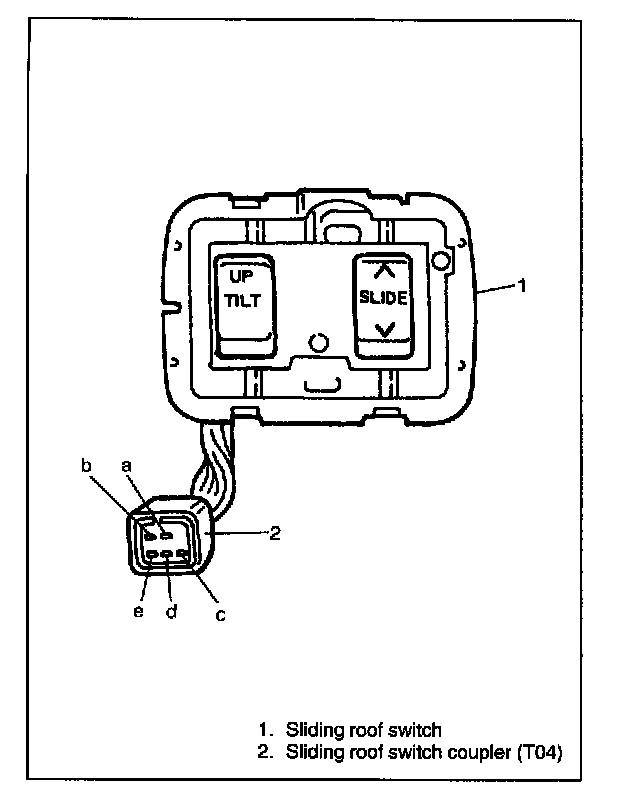

Inspect switch continuity between terminals shown in figure.
If any of continuity is not obtained, replace sliding roof switch.
