Without Scan Tool

[Not using SUZUKI scan tool]
1. Turn "ON" ignition switch and wait about 20 seconds.

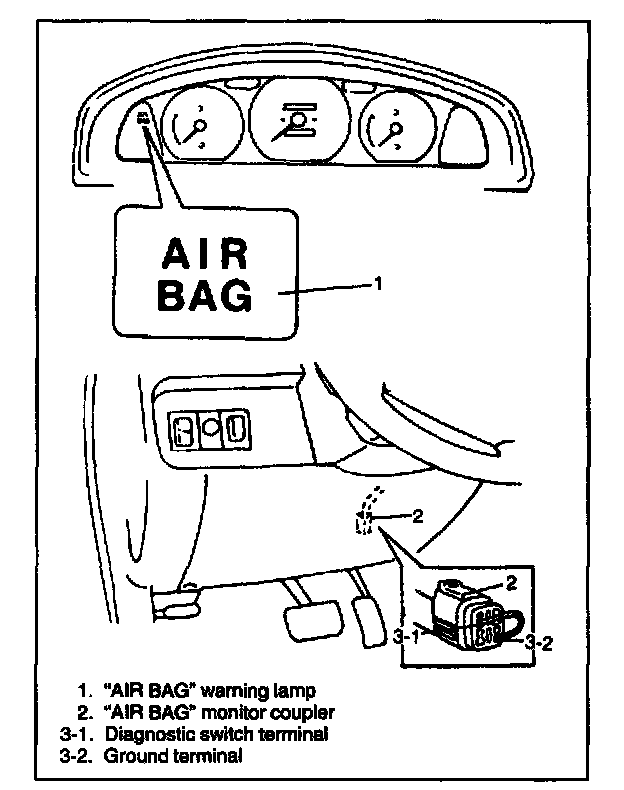

2. By using service wire, connect diag. switch and ground terminals on "AIR BAG" monitor coupler.

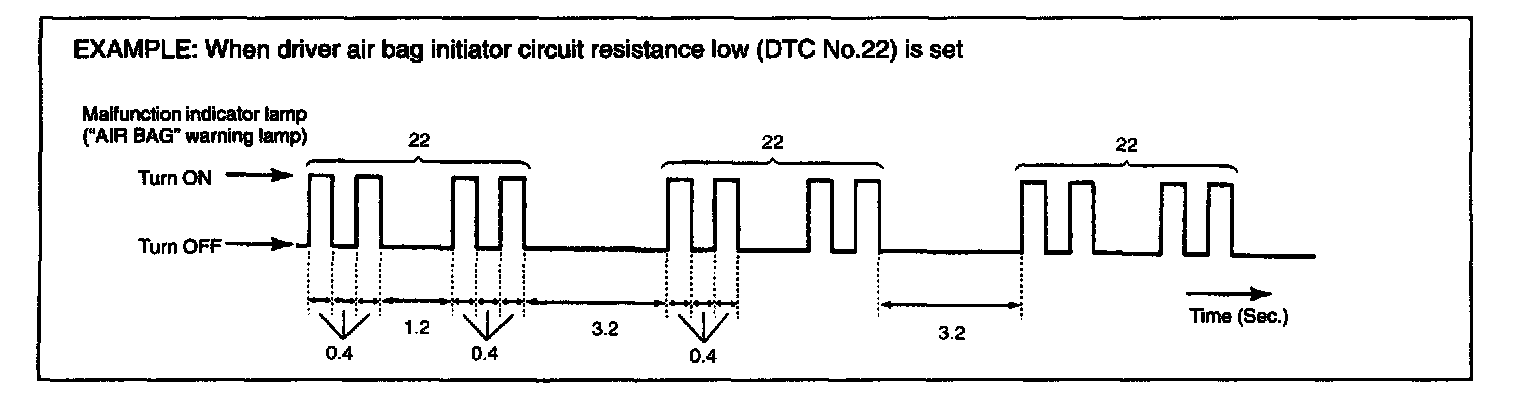

3. To read diagnostic trouble code, watch "AIR BAG" warning lamp.
(For frequency of code signal, refer to DIAGNOSTIC TROUBLE CODE CHECK.)
If diagnostic trouble code is not indicated, check diagnosis switch circuit according to TABLE F.

NOTE: When there are 2 or more diagnostic trouble codes, all applicable code will be indicated from smaller number to large number in order.
