Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations >> Component Locations >> Components and Wiring Location View and Connectors

Components and Wiring Location View and Connectors

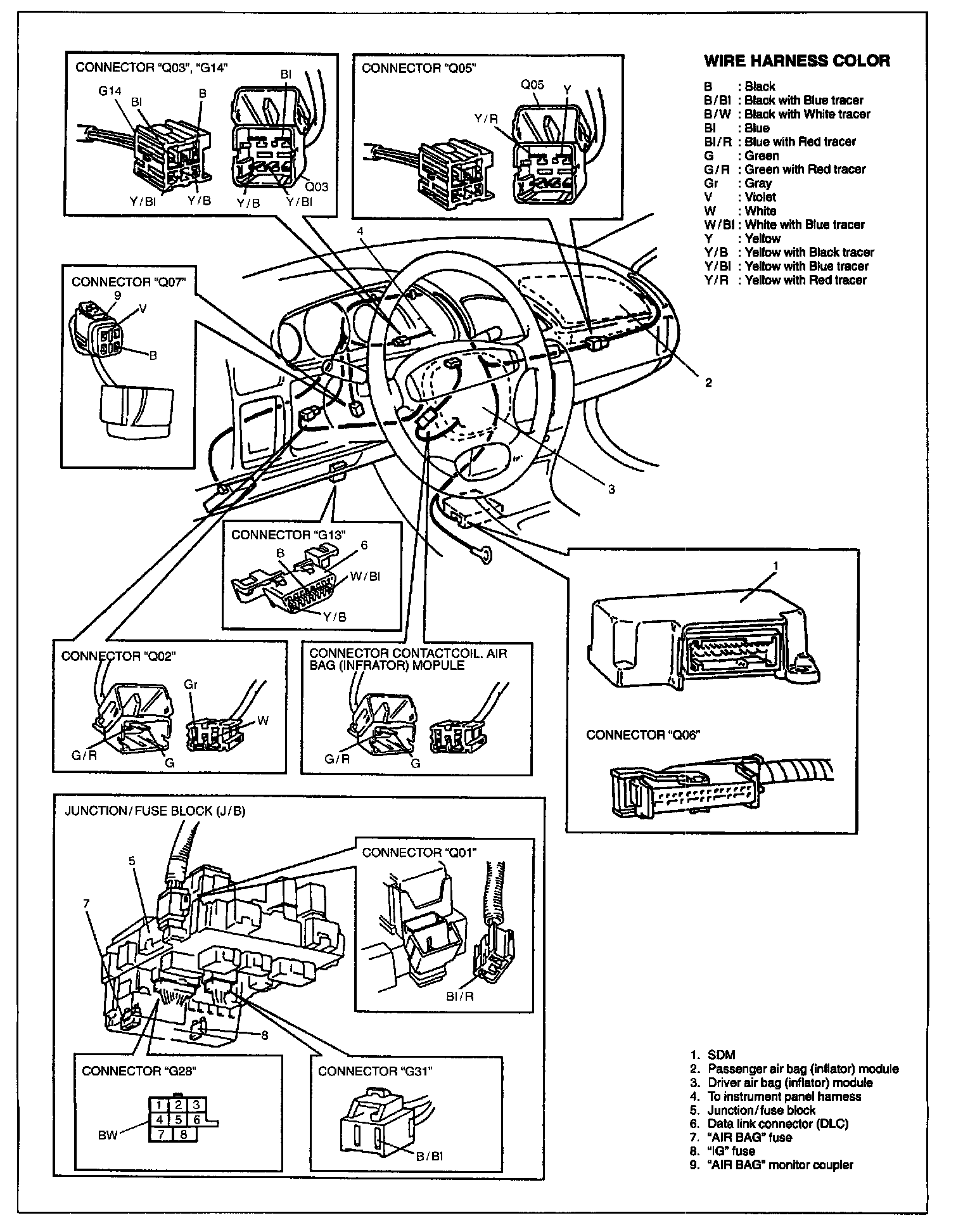

Wiring Location View And Connectors:
