Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Description of On-Board Diagnostics >> Fail Safe Operation >> Engine General Information and Diagnosis

Engine General Information and Diagnosis

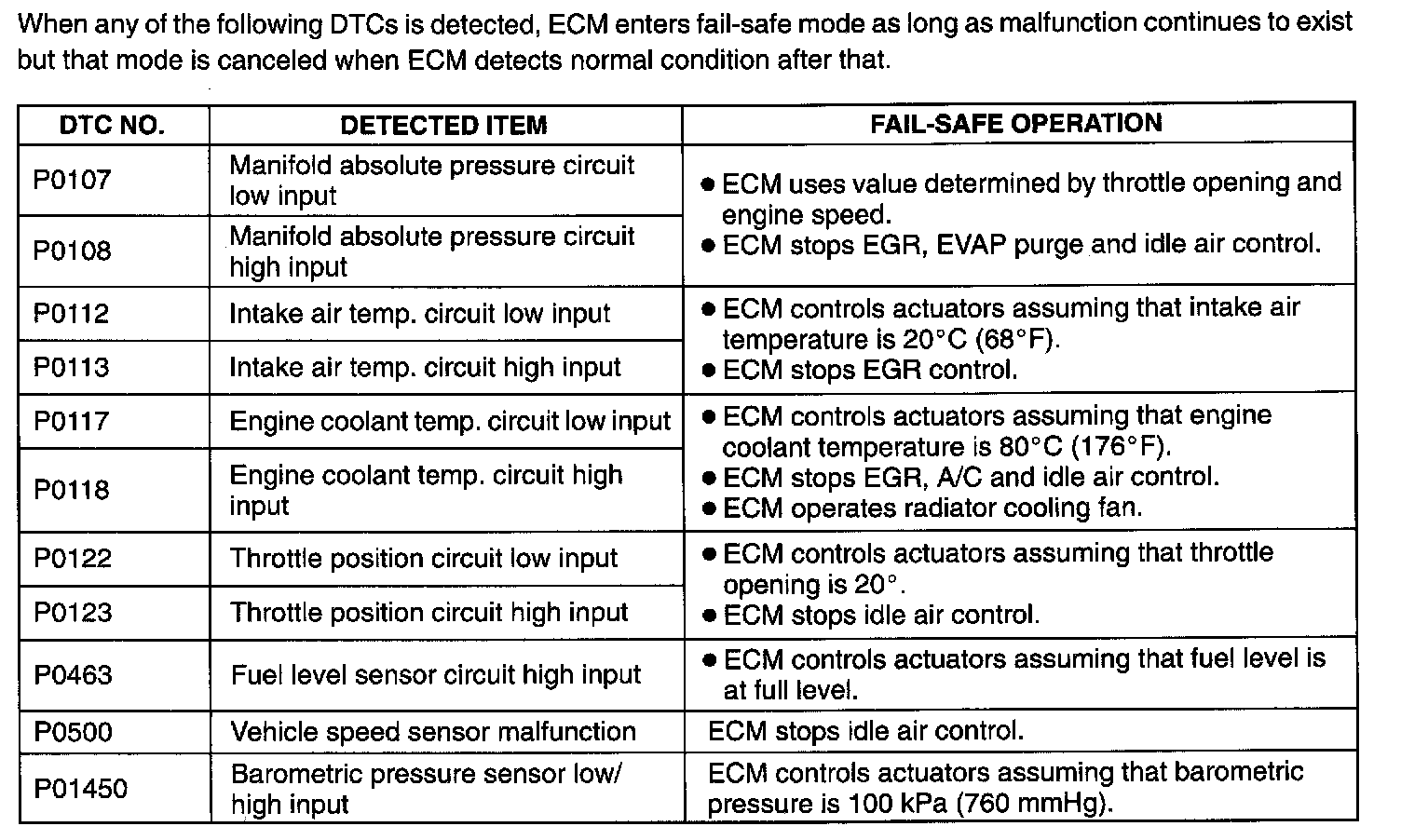

Fail-Safe Table (P0107 - P01450):
