B-6 Power Steering Pressure Switch Circuit Check (If Equipped)

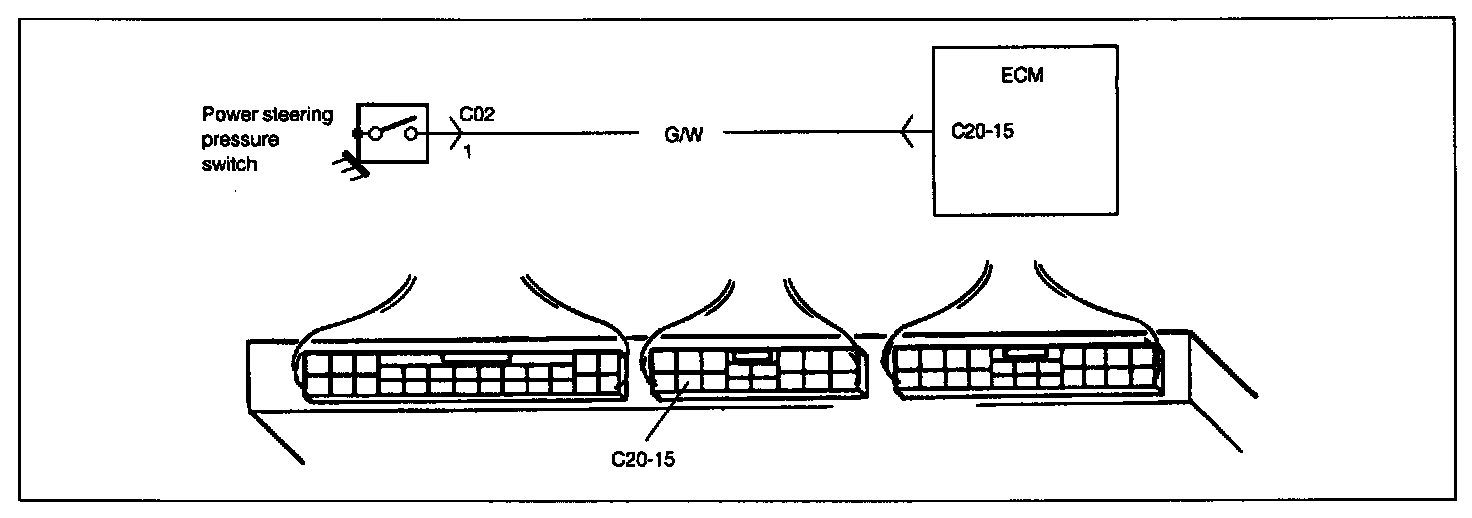

Wiring Diagram:

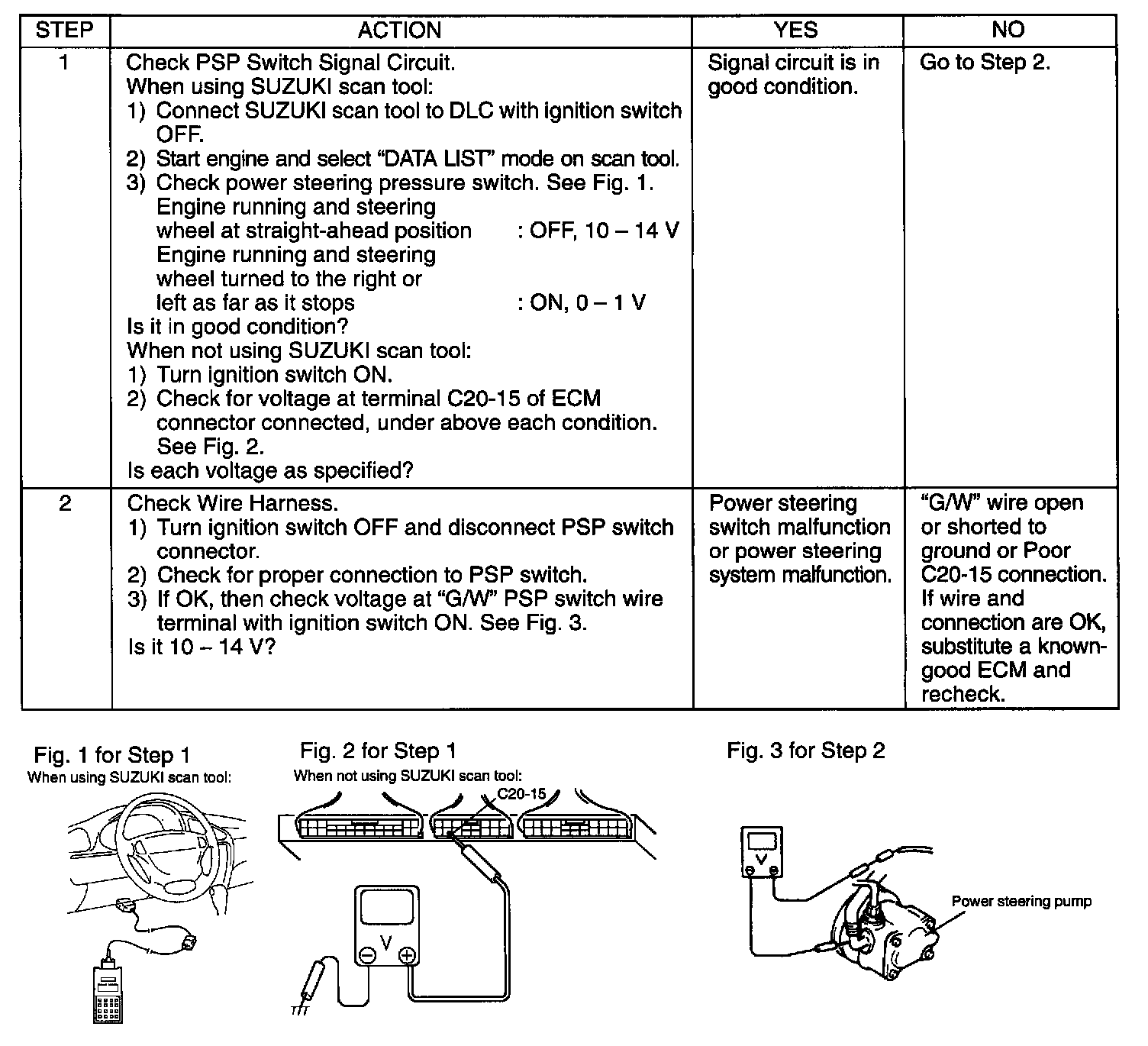

Inspection (Steps 1 - 2):
