B-2 Fuel Pump Circuit

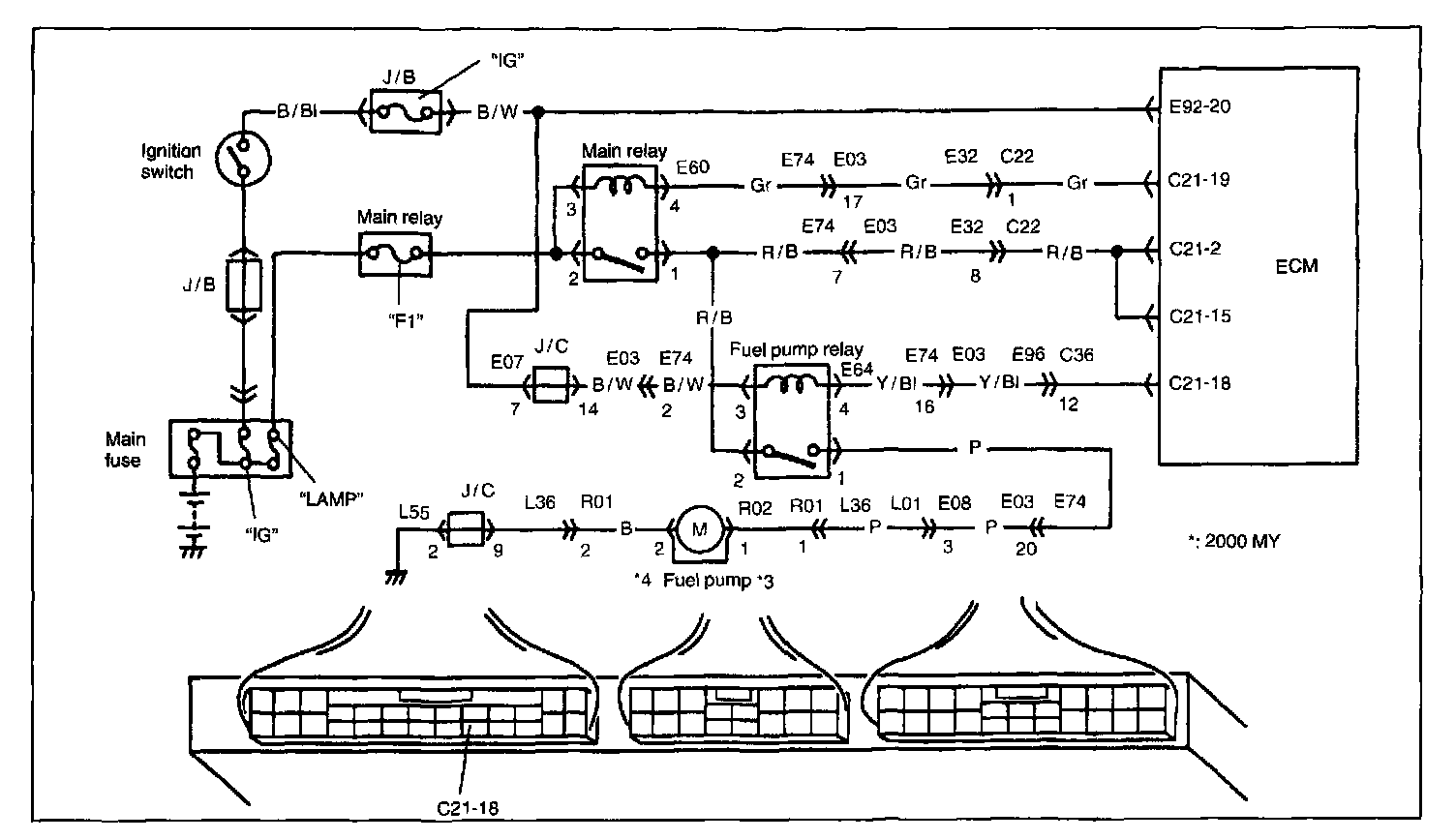

Wiring Diagram:

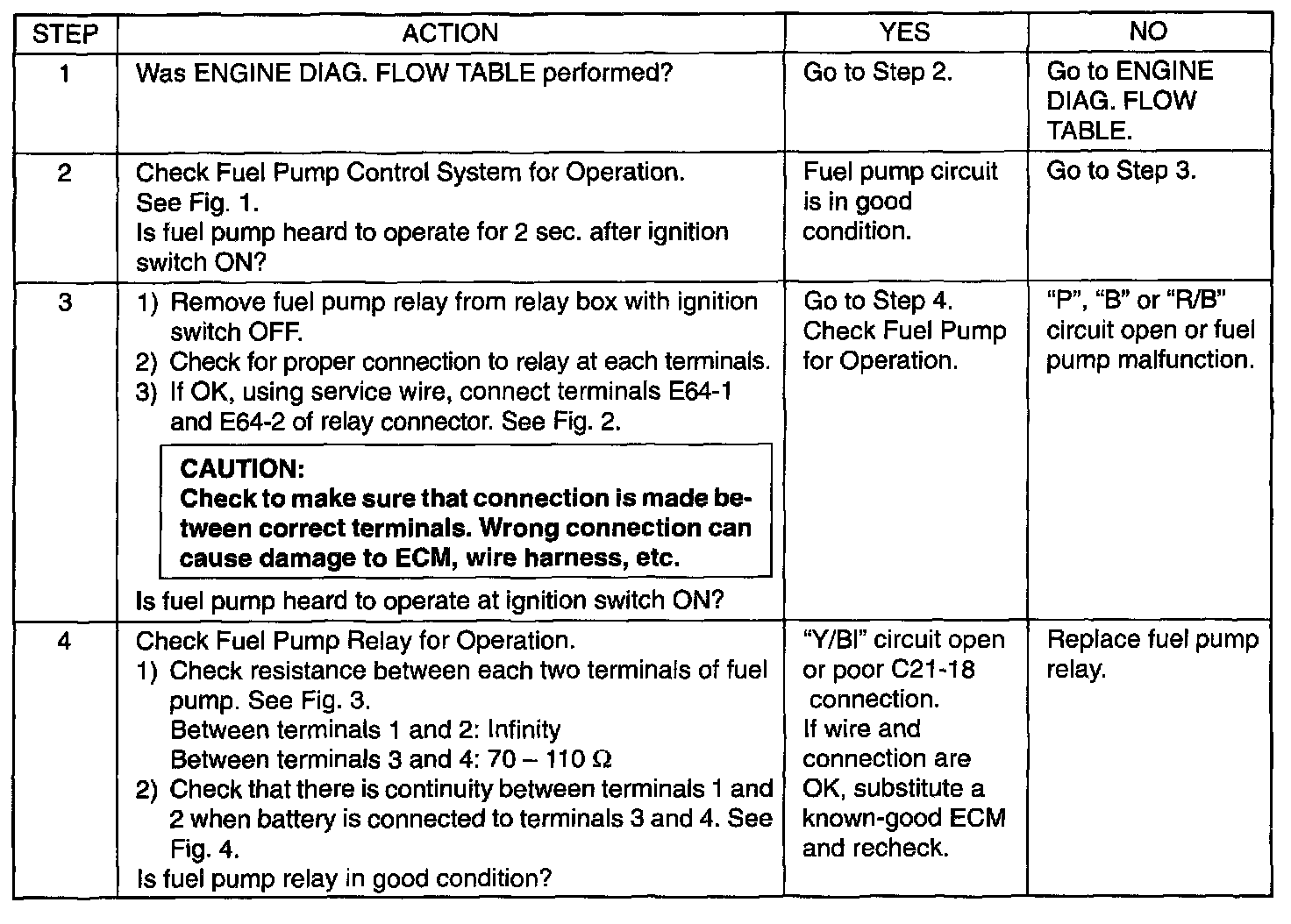

Inspection (Steps 1 - 4):

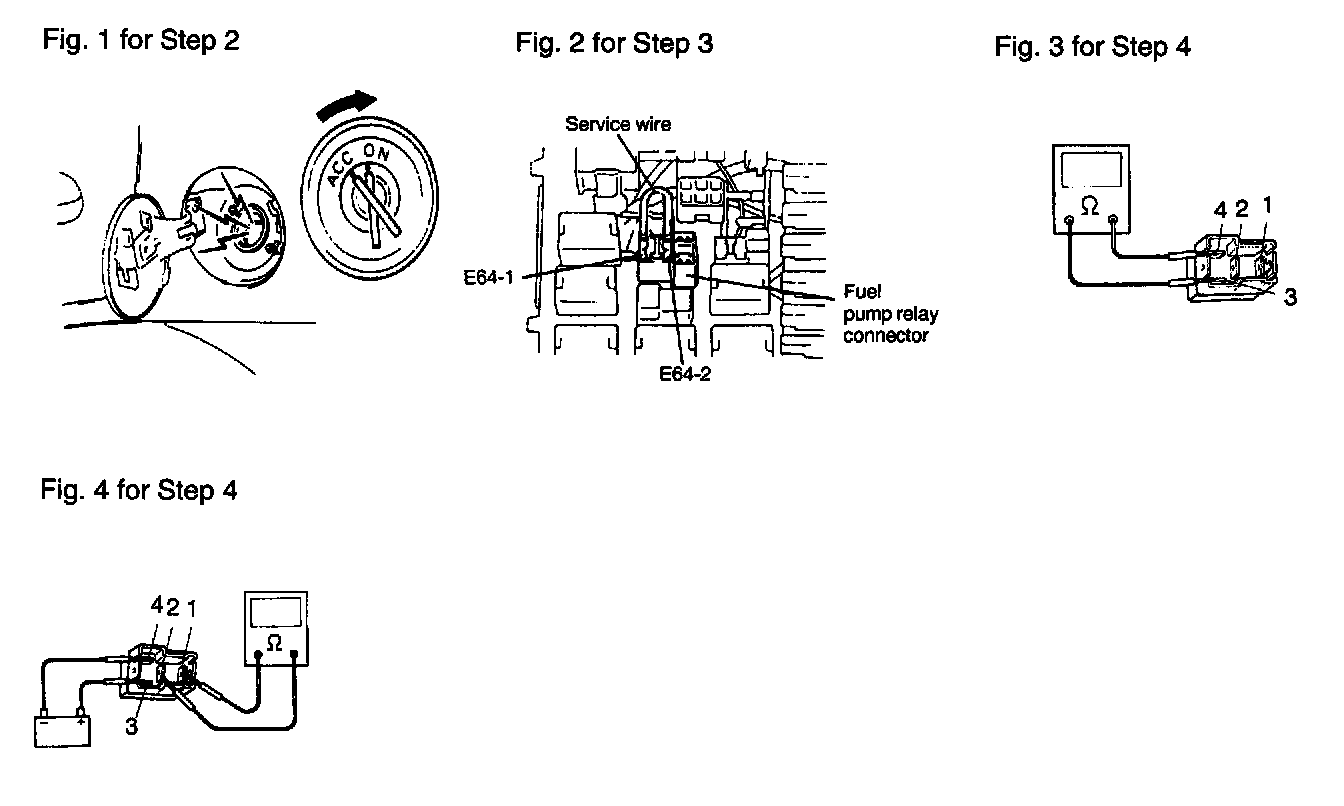

Figure 1, 2, 3, 4 For Steps 2, 3 And 4:
