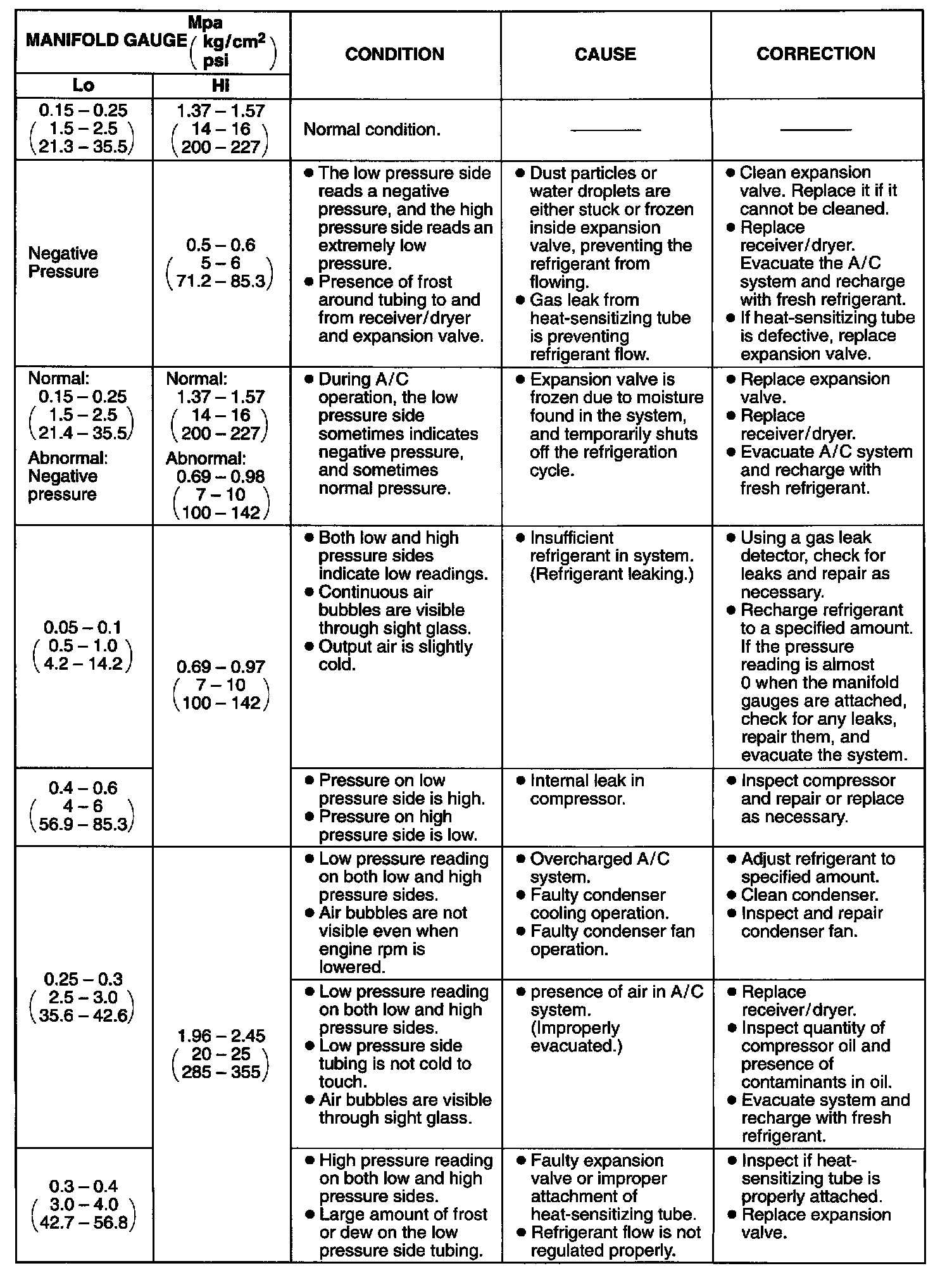

Gauge Readings For Malfunction Symptoms




Gauge readings, conditions, causes, and measures (classified according to malfunction symptoms) will be discussed.
