D-5 Interior Light Vehicle With Keyless Entry

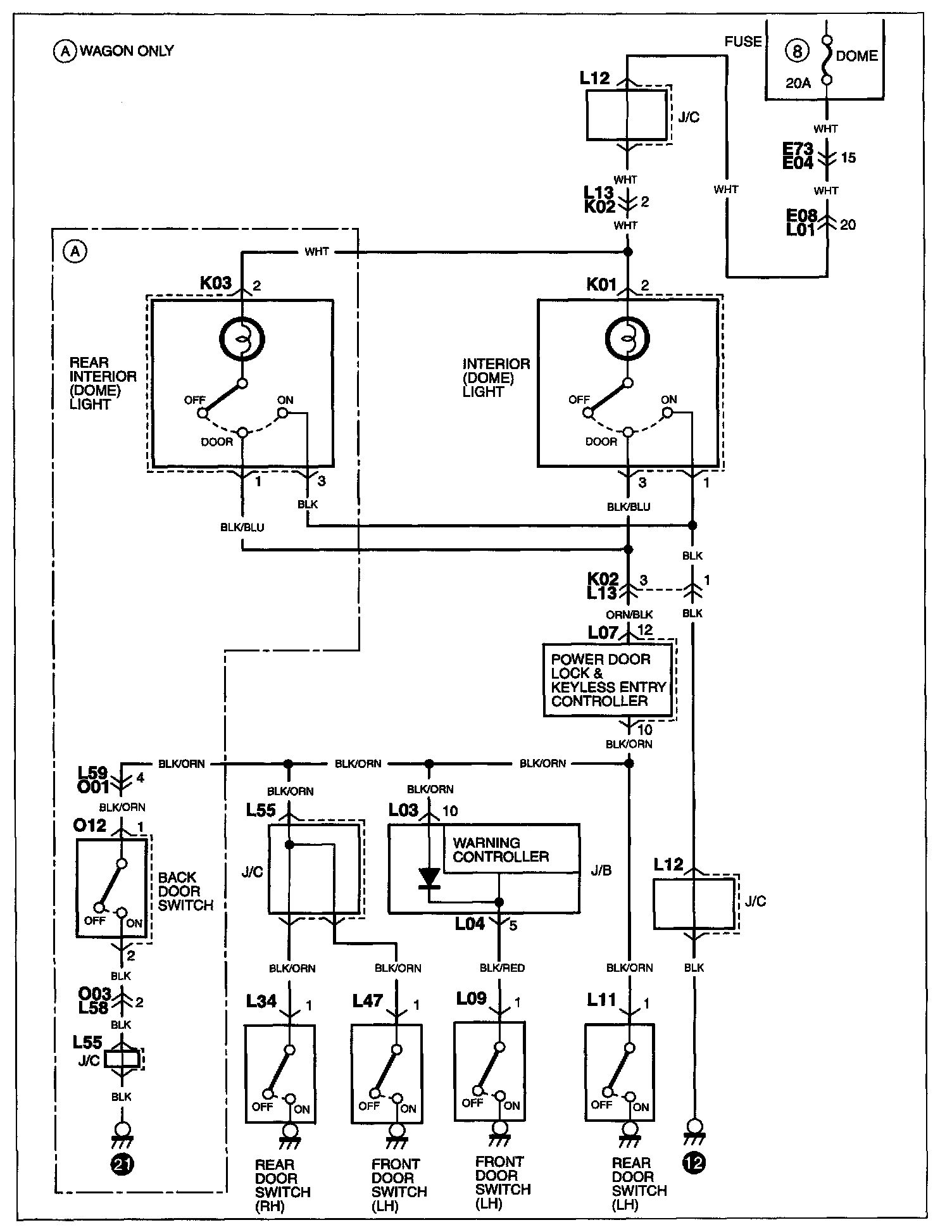

D-5 Interior Light <Vehicle With Keyless Entry As Standard Equipment>:
