Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> System Circuit Diagrams By Letter (A Thru Z) >> D-1 Headlight

D-1 Headlight

D-1 Headlight Part 1:

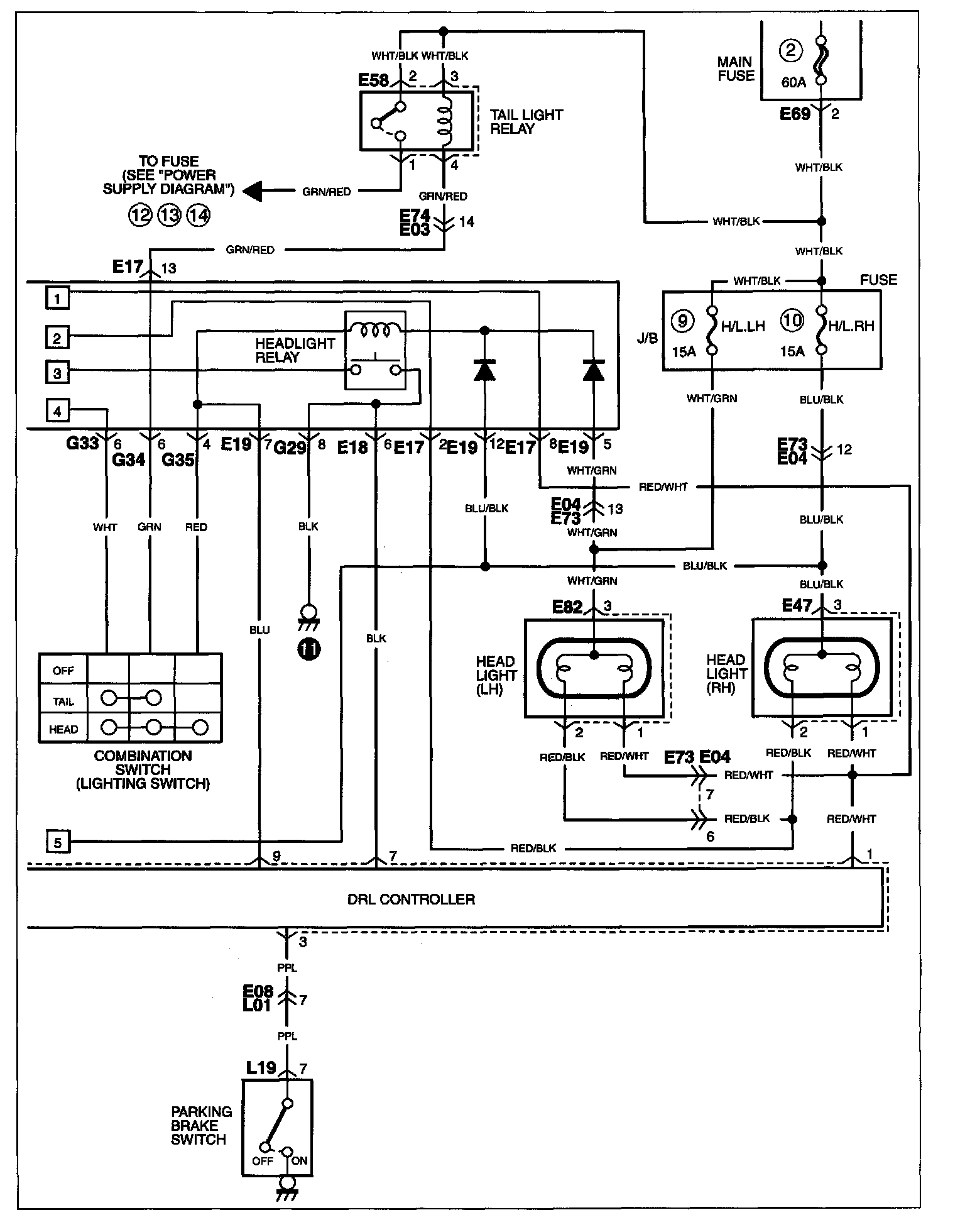

D-1 Headlight Part 2:
