Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> System Circuit Diagrams By Letter (A Thru Z) >> C-1 Meter and Gauge <Vehicle With Tachometer>

C-1 Meter and Gauge

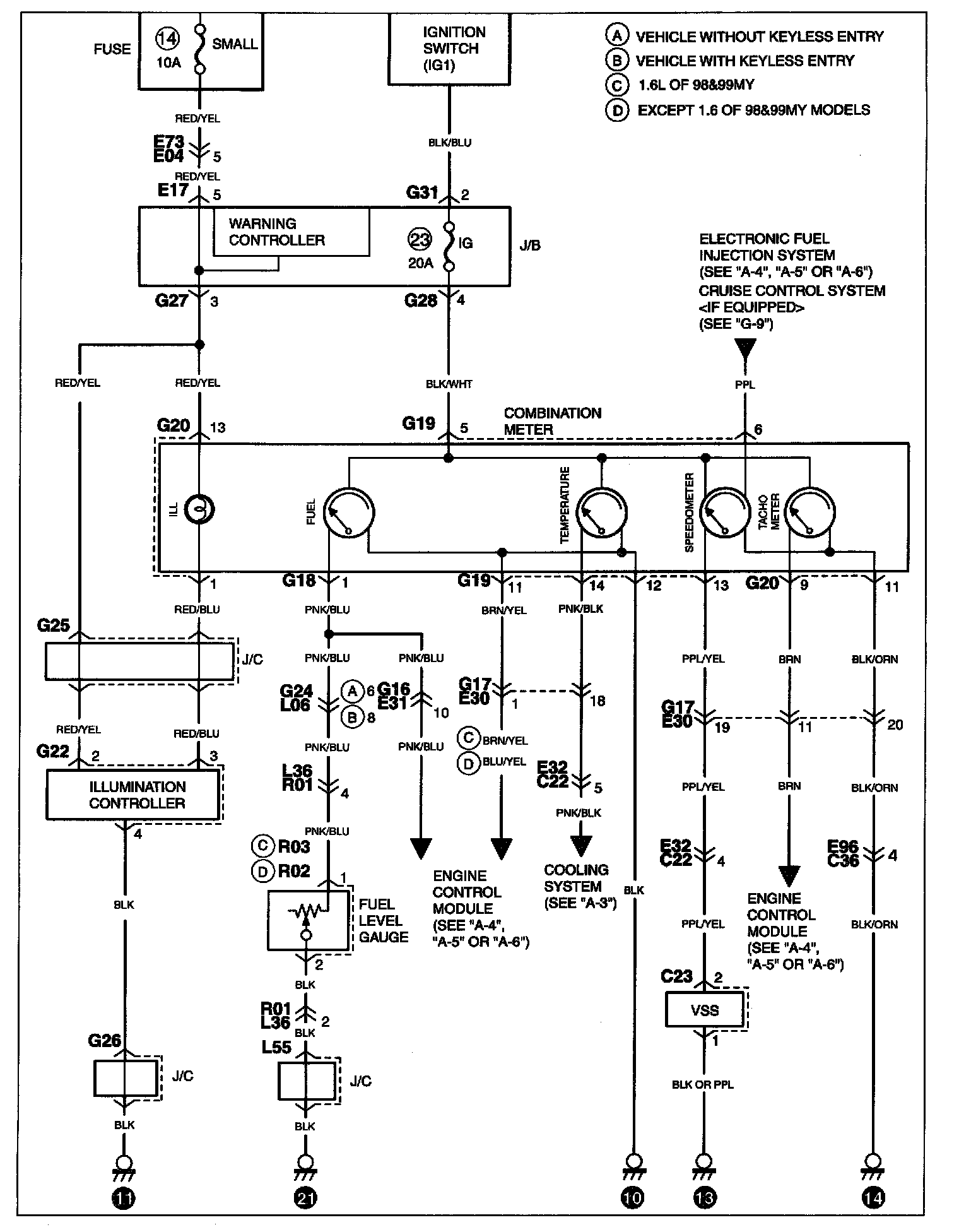

C-1 Meter And Gauge <Vehicle With Tachometer>:
