Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> System Circuit Diagrams By Letter (A Thru Z) >> B-3 Rear Window Defogger

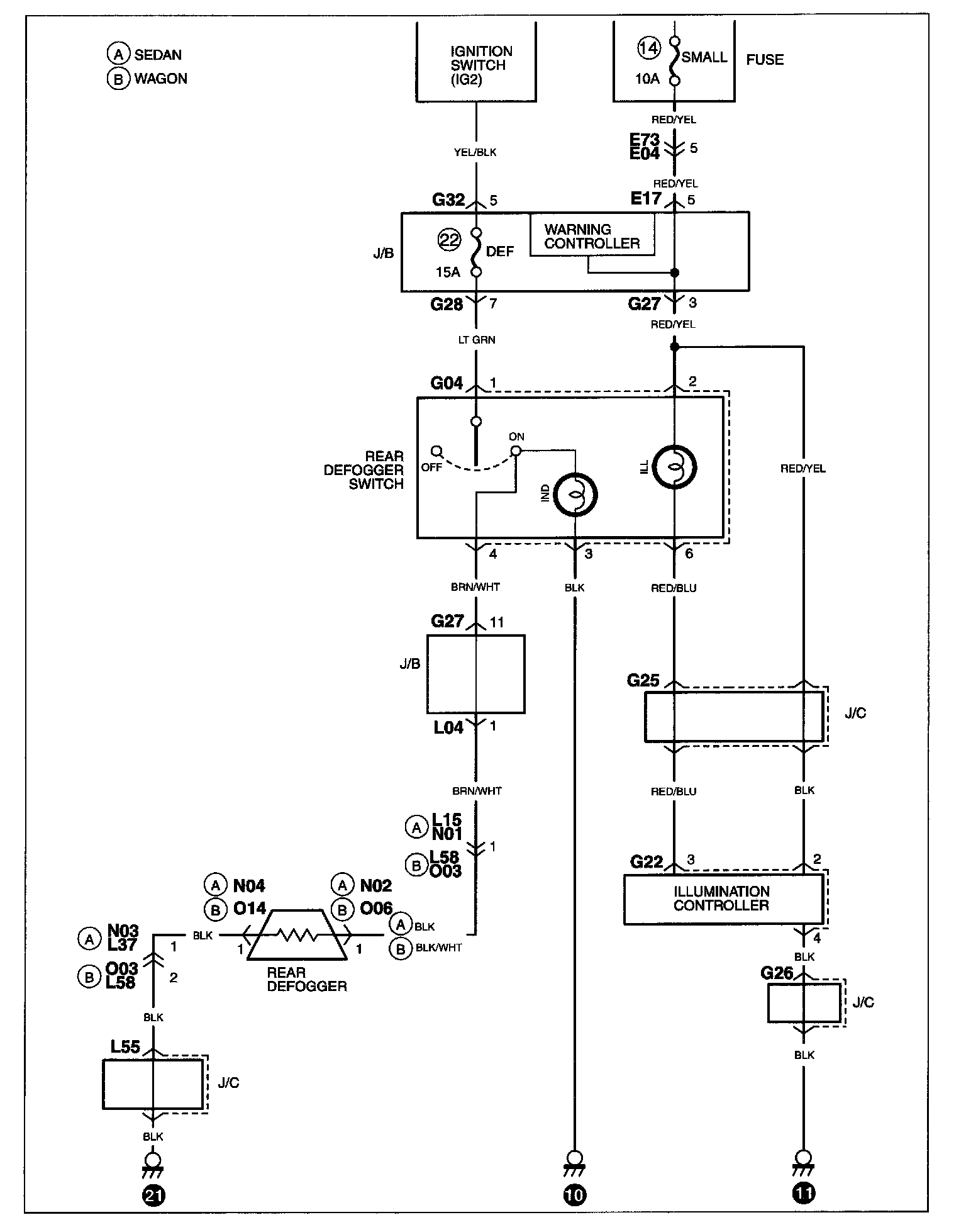

B-3 Rear Window Defogger

B-2 Rear Window Defogger <If Equipped>:
