Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> System Circuit Diagrams By Letter (A Thru Z) >> B-1 Windshield Wiper and Washer

B-1 Windshield Wiper and Washer

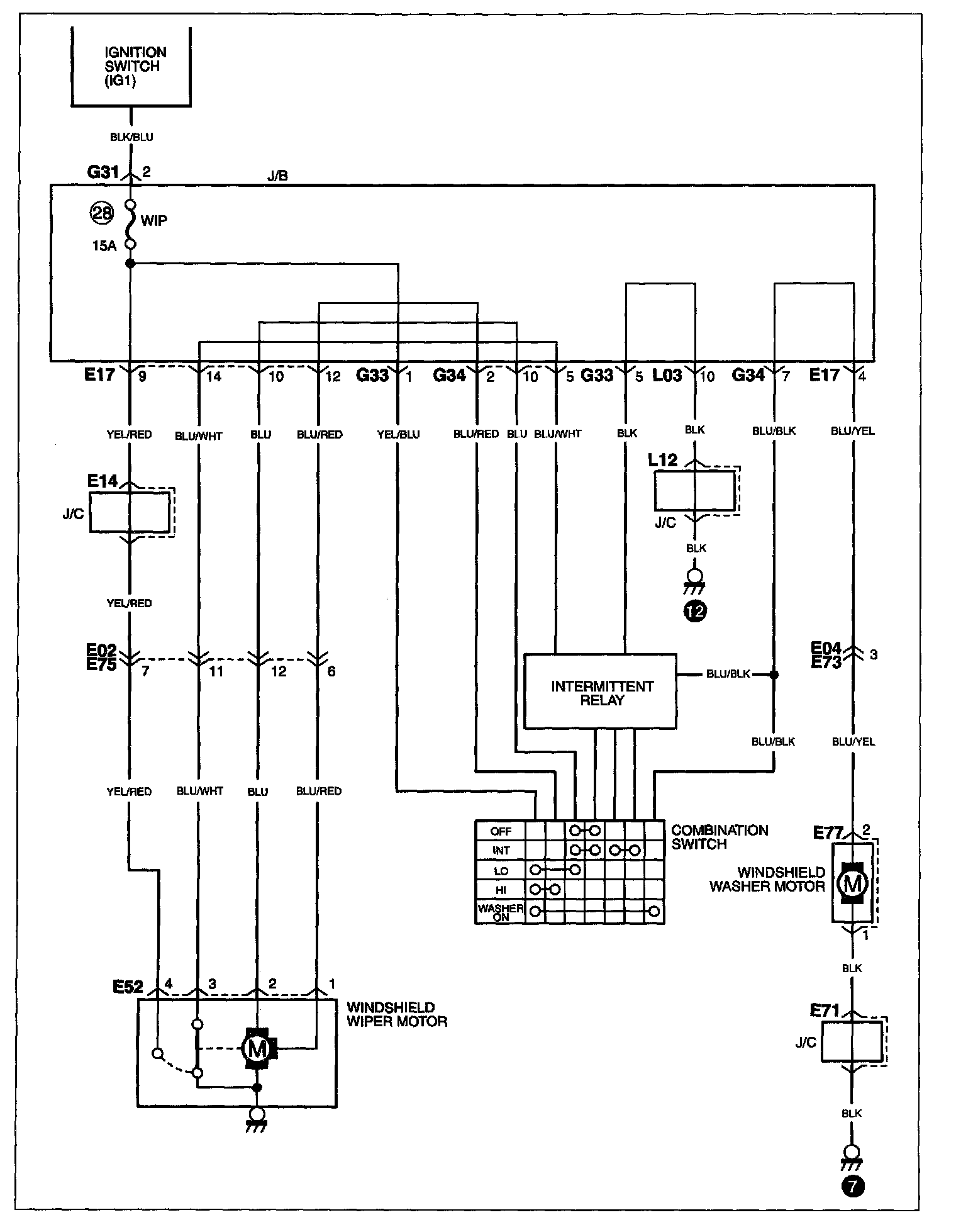

B-1 Windshield Wiper And Washer Part 1:
