Esteem GLX Wagon Plus L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
System Circuit Diagrams By Letter (A Thru Z)
>>
A-9 A/T Control System
A-9 A/T Control System

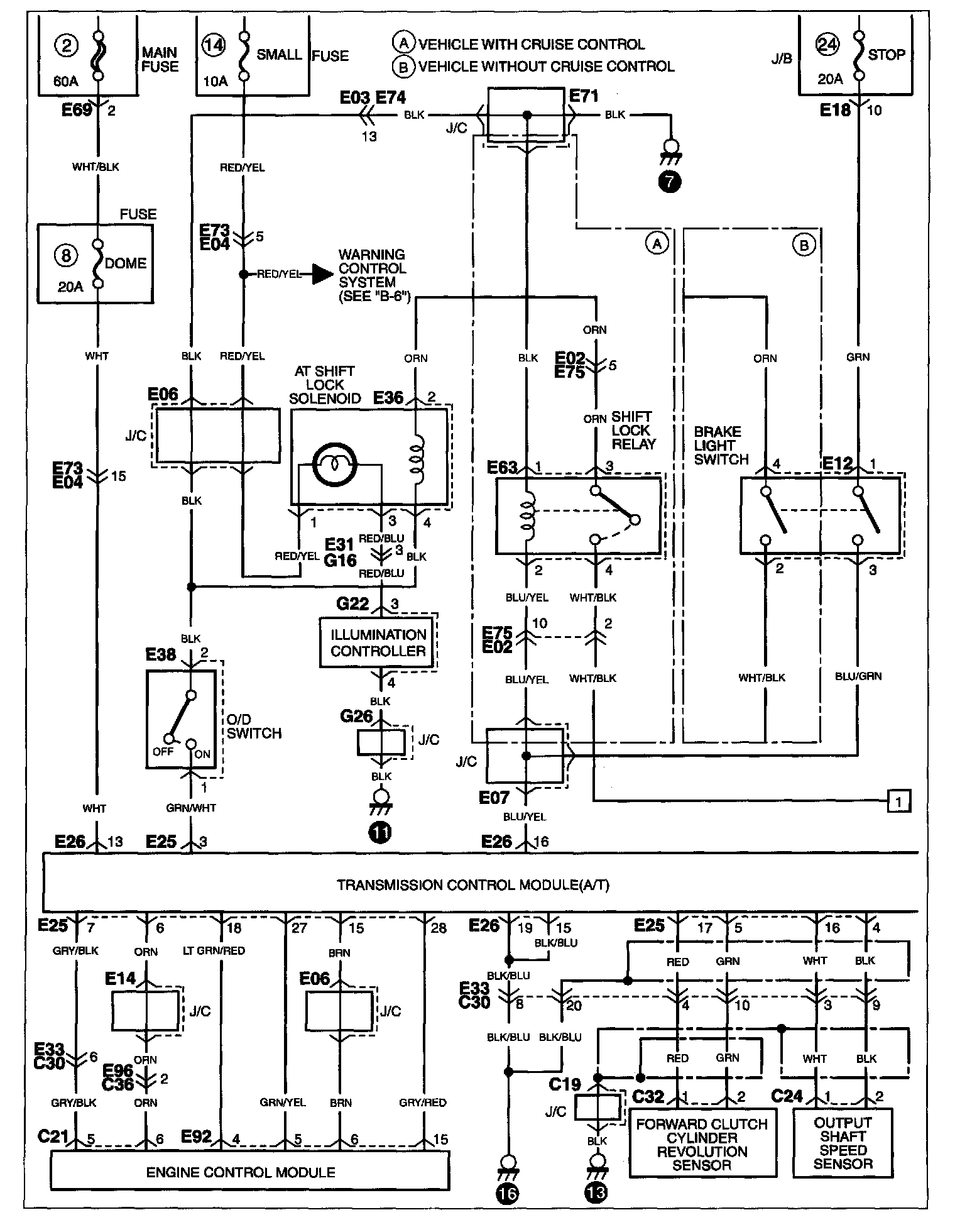

A-9 A/T Control System:

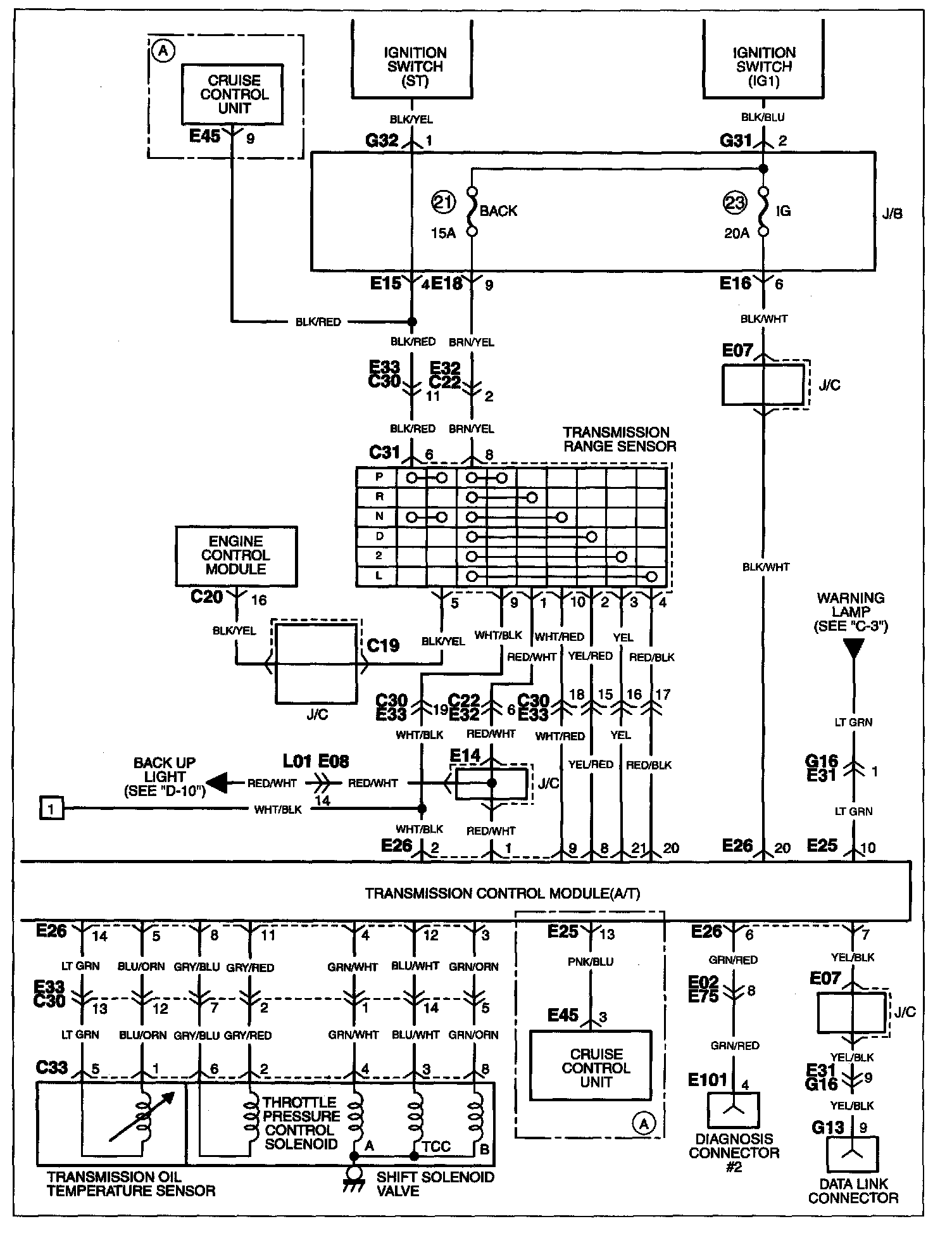

A-9 A/T Control System Part 2:
