FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Suzuki
>>
1999
>>
Esteem GLX Wagon Plus L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
System Circuit Diagrams By Letter (A Thru Z)
>>

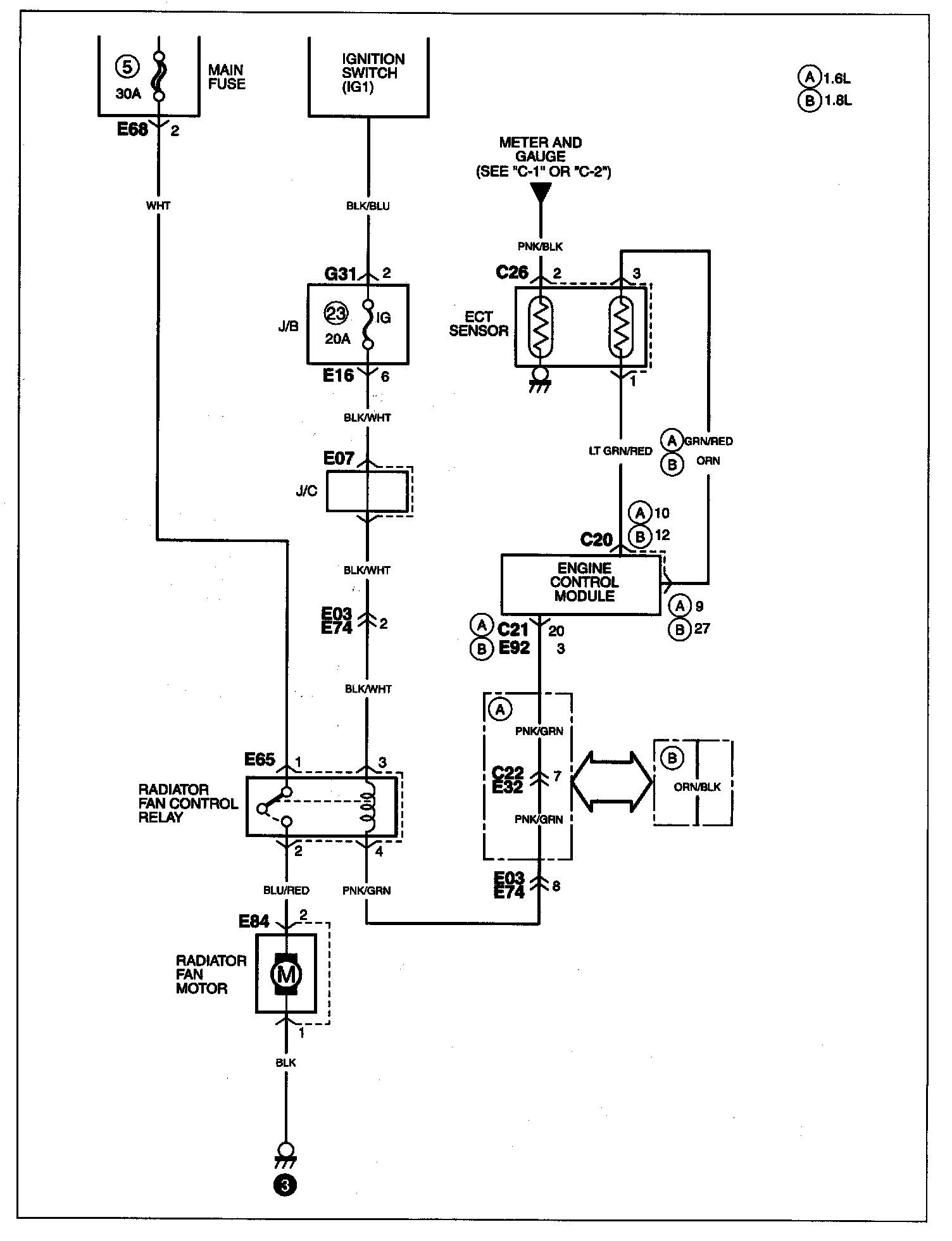

A-3 Cooling System
A-3 Cooling System
A-3 Cooling System:
