Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fog/Driving Lamp

Fog/Driving Lamp

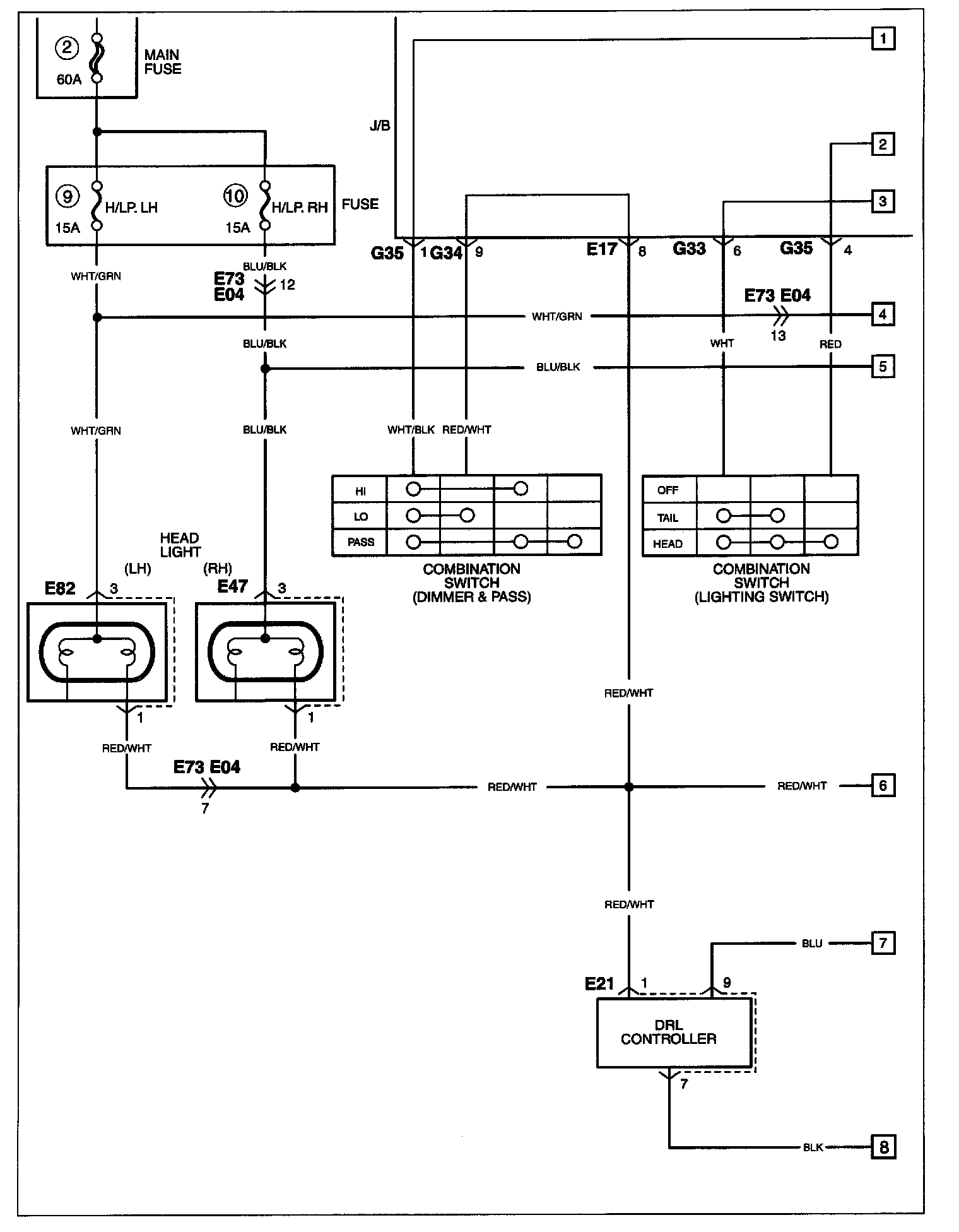

D-3 Fog Light <If Equipped> Part 1:

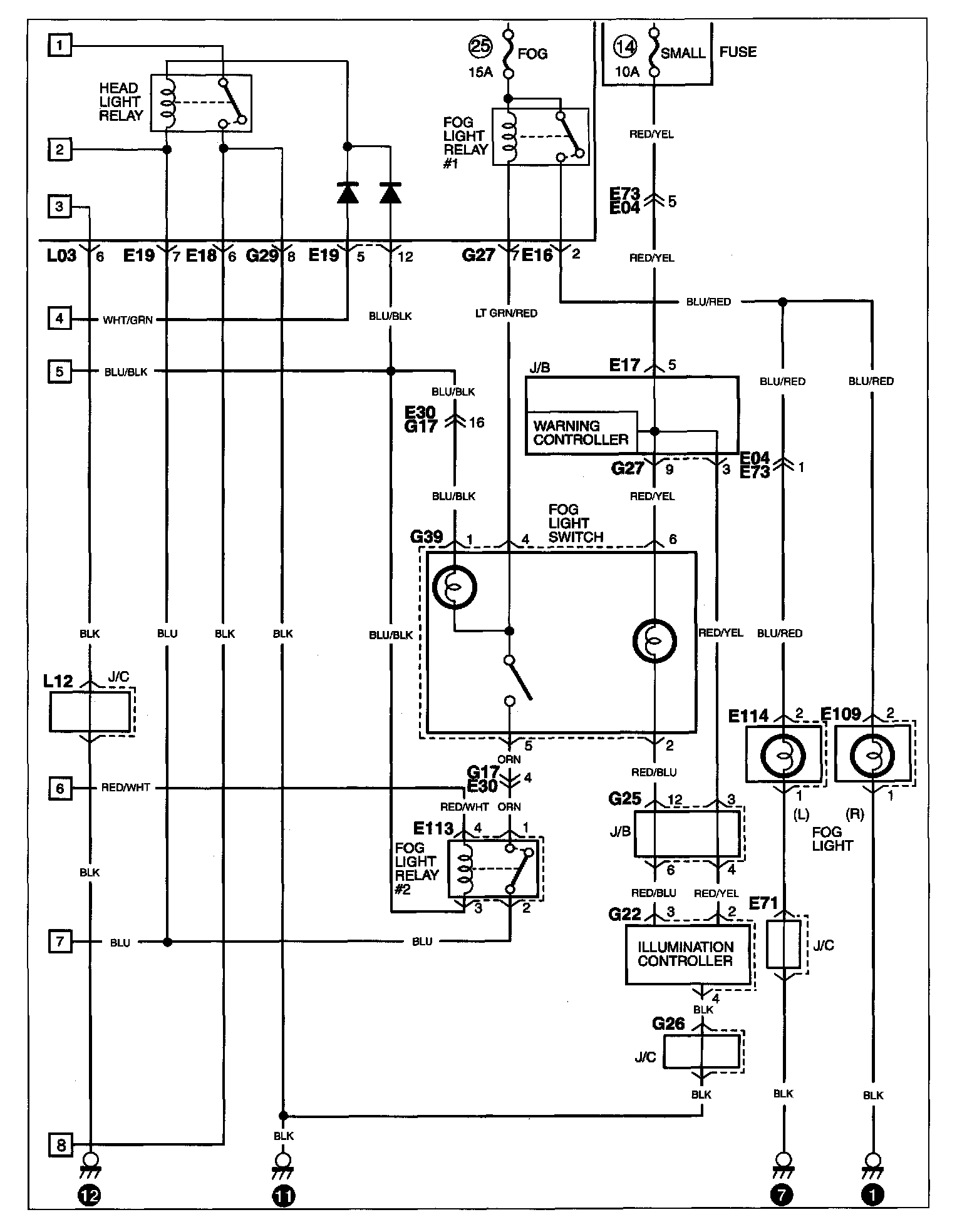

D-3 Fog Light <If Equipped> Part 2:
