Rear, Trunk Room
Rear, Trunk Room

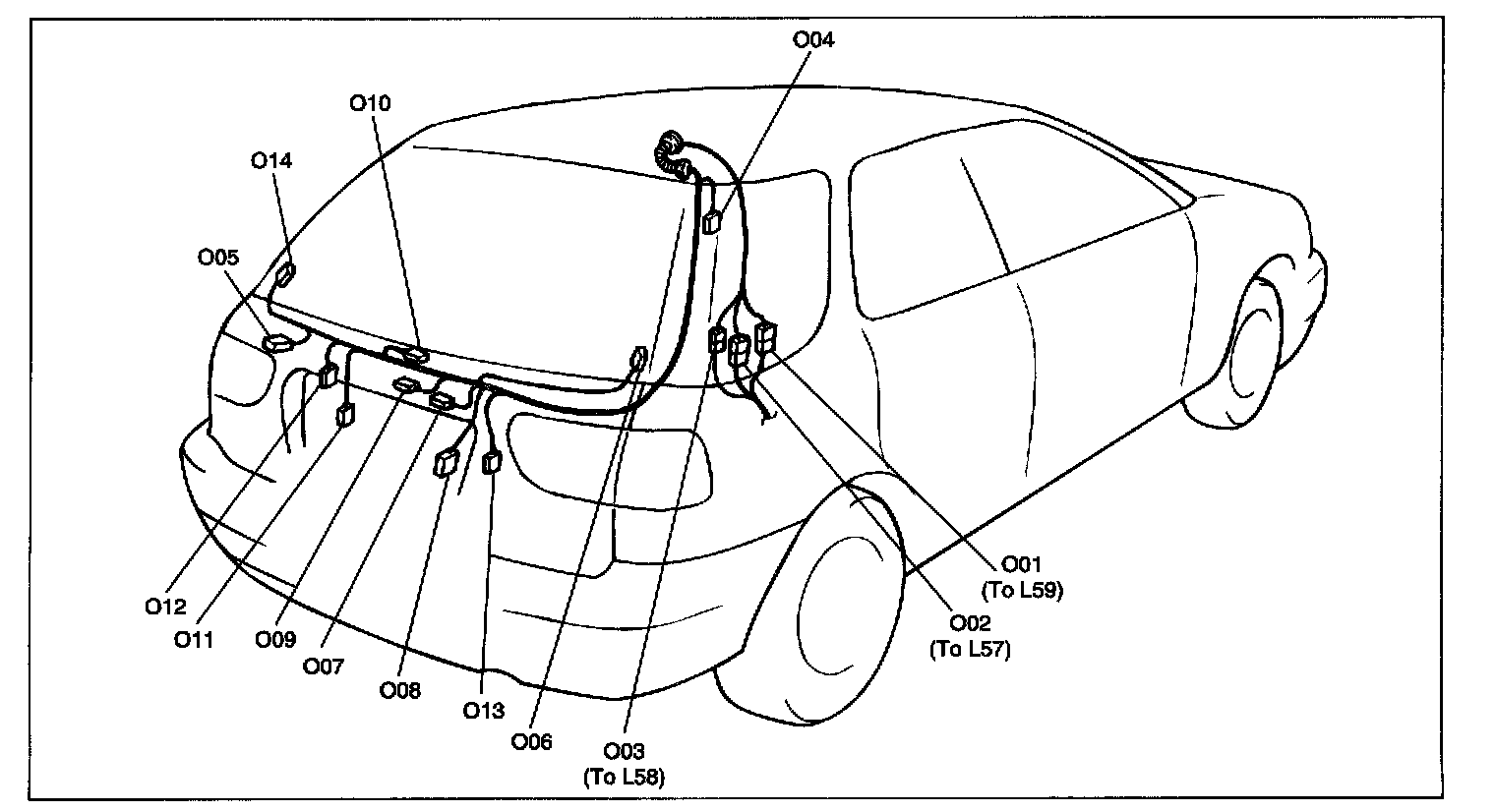

O: Back Door Harness (For Wagon):

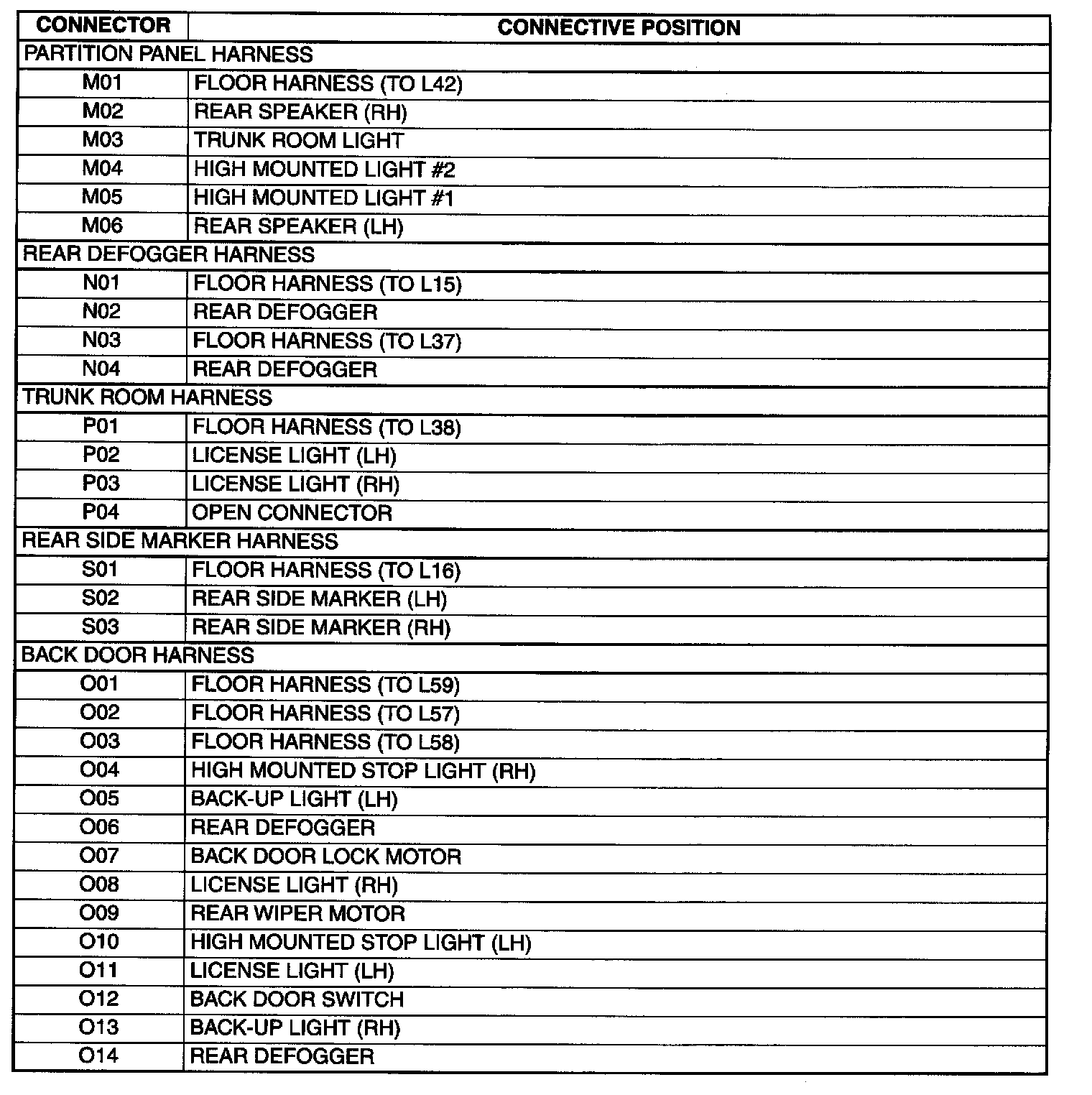

M: Partition Panel Harness, N: Rear Defogger Harness, P: Trunk Room Harness, S: Rear Side Marker Harness (For Sedan), O: Back Door Harness (For Wagon) Connectors:
