Engine Room

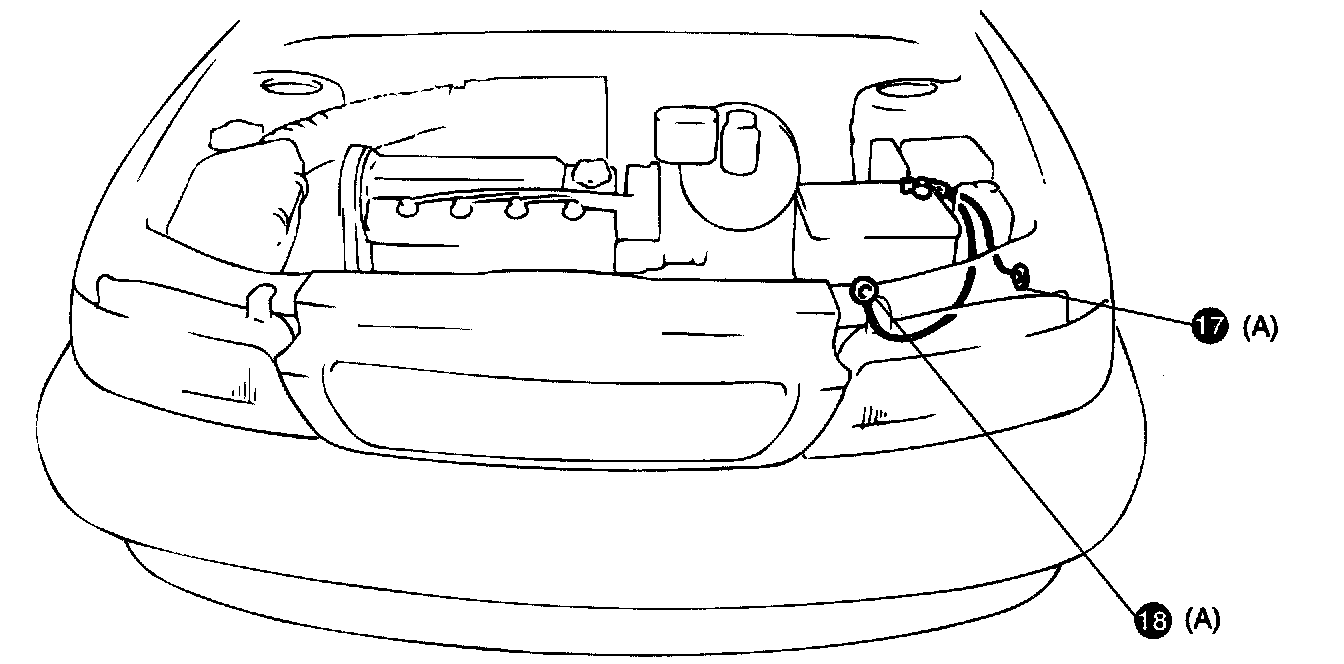

A: Battery Cable:

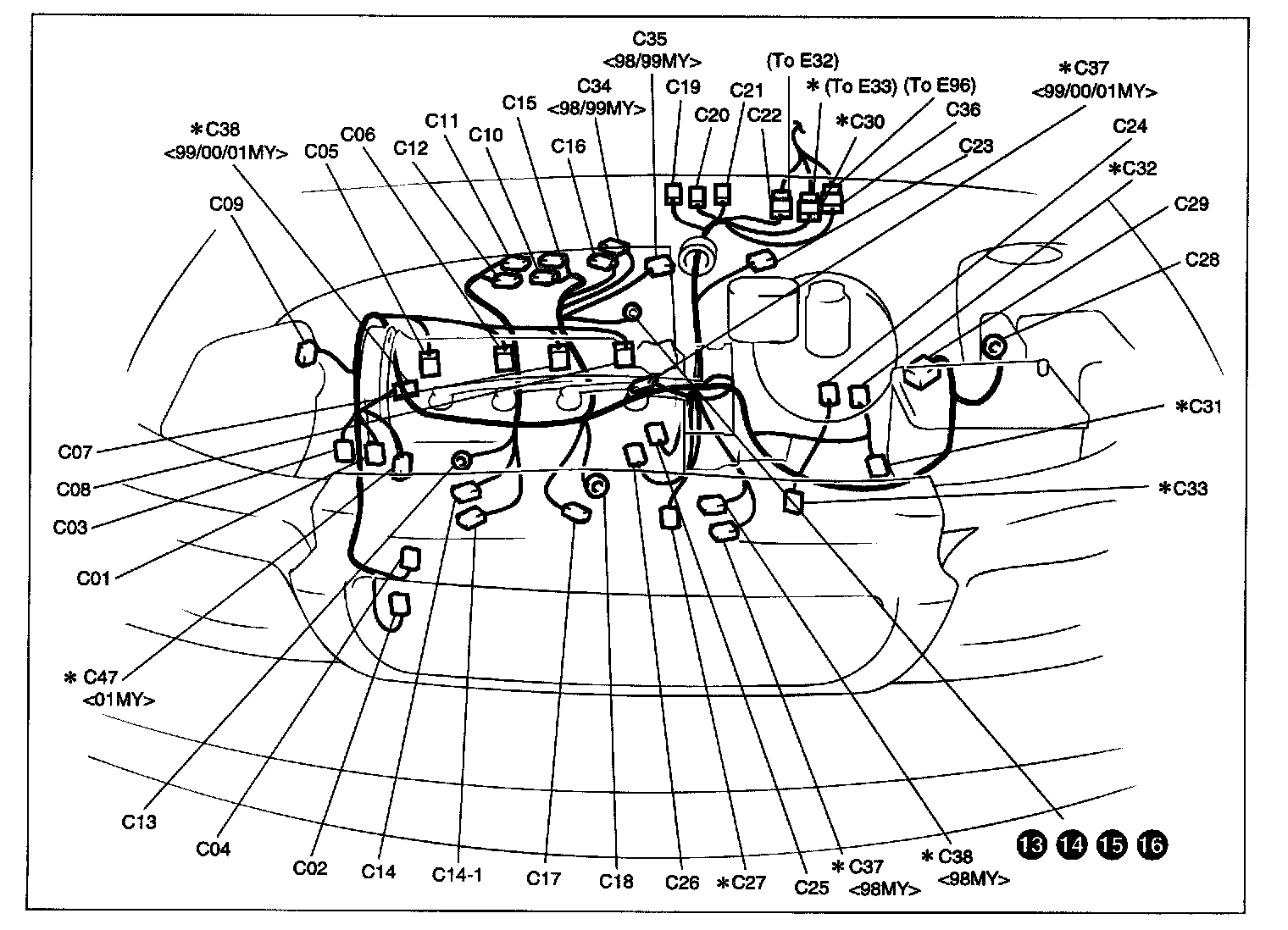

C: Engine Harness:

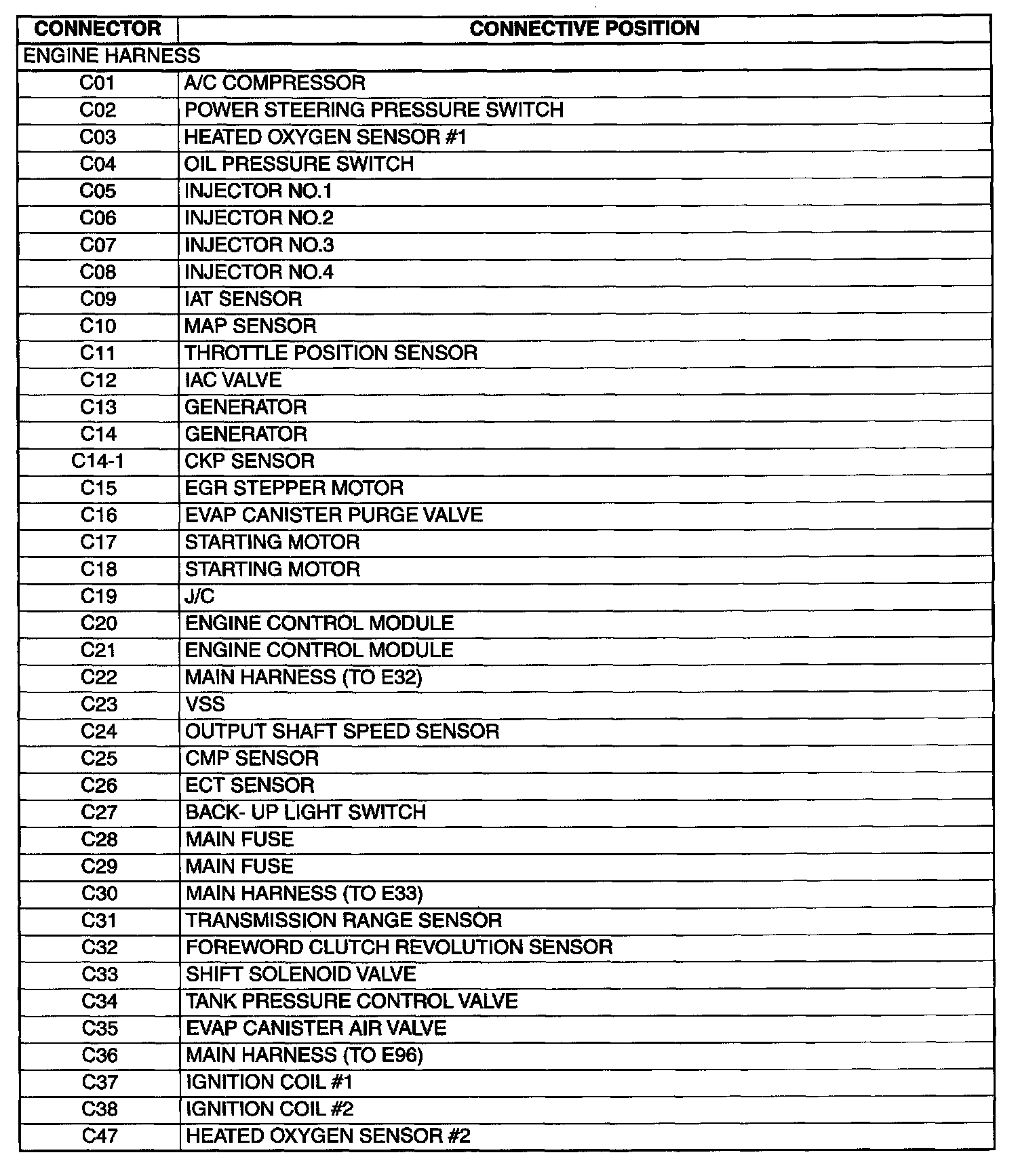

C: Engine Harness Connectors:



E: Main Harness:

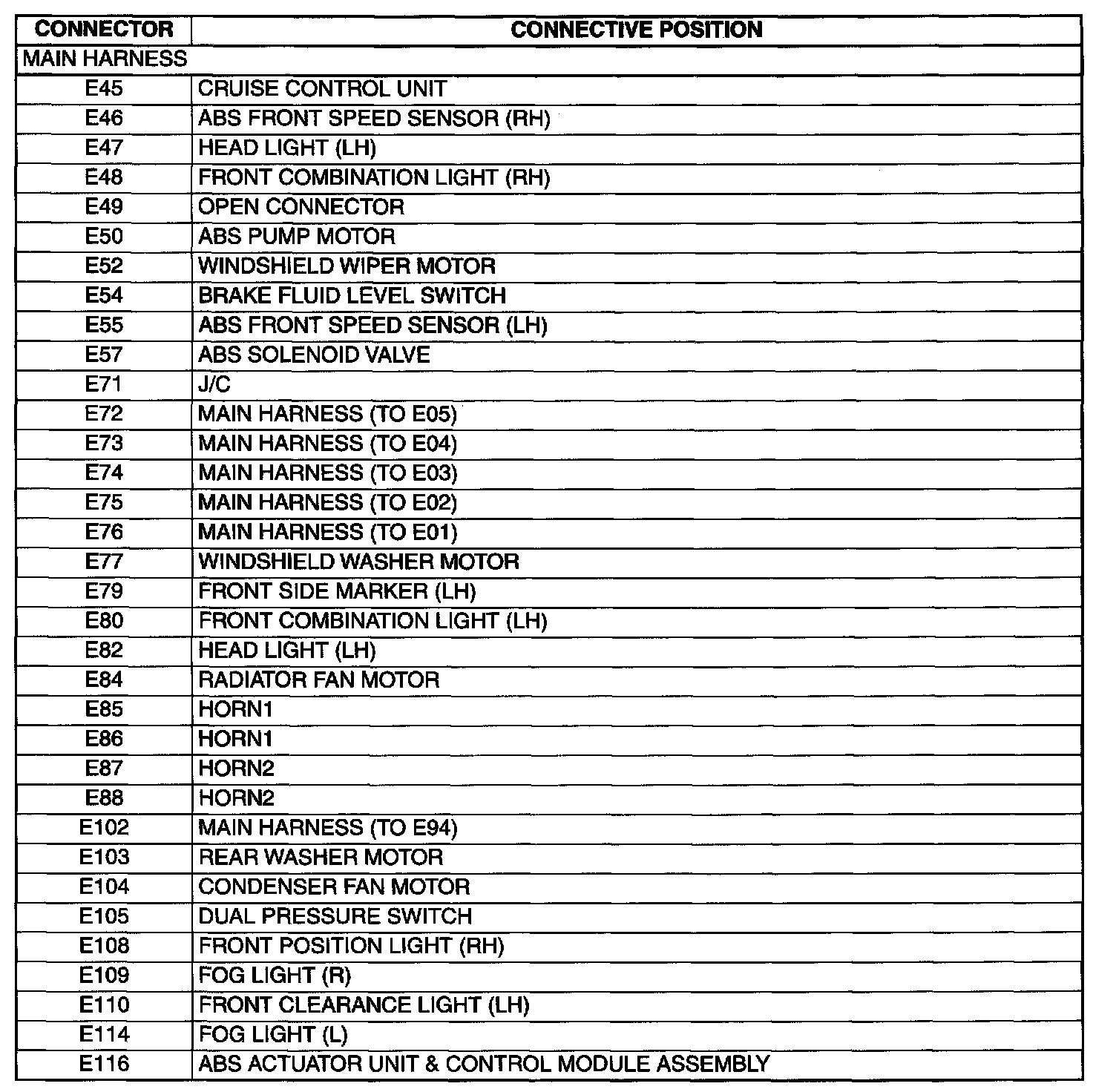

E: Main Harness Connectors:

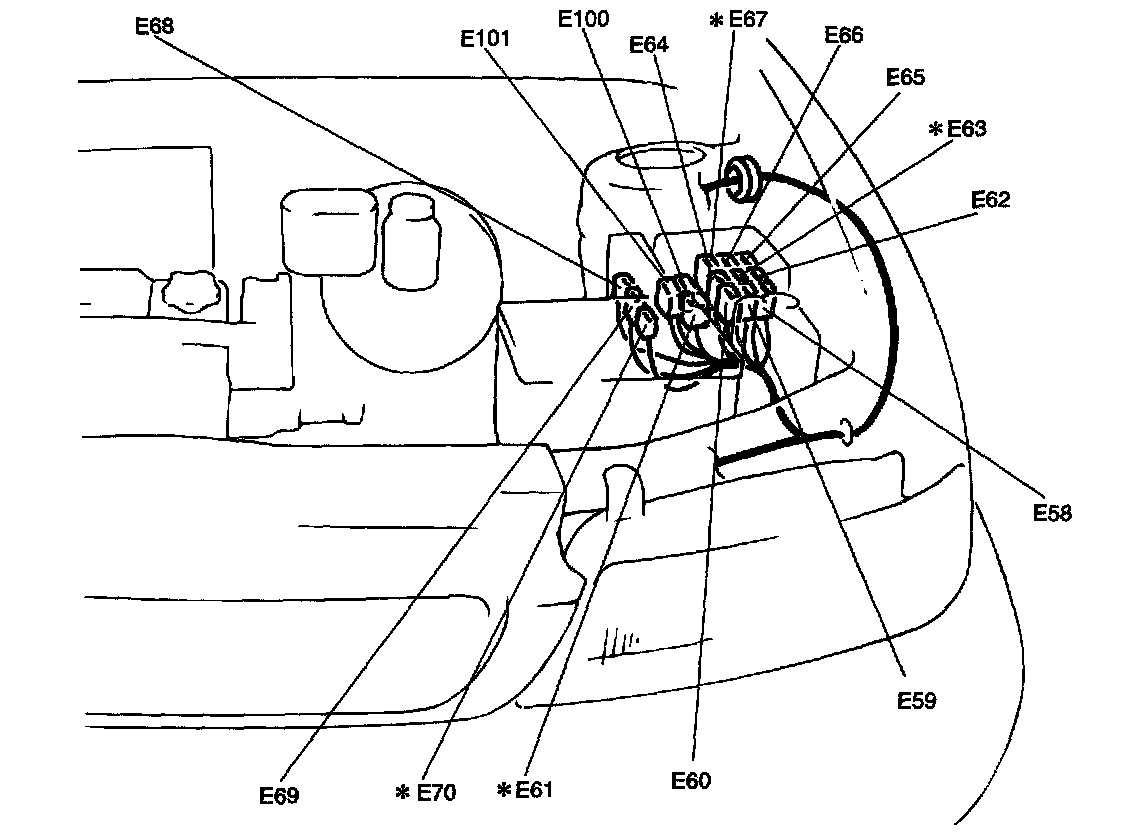

E: Main Harness (Relay Box):

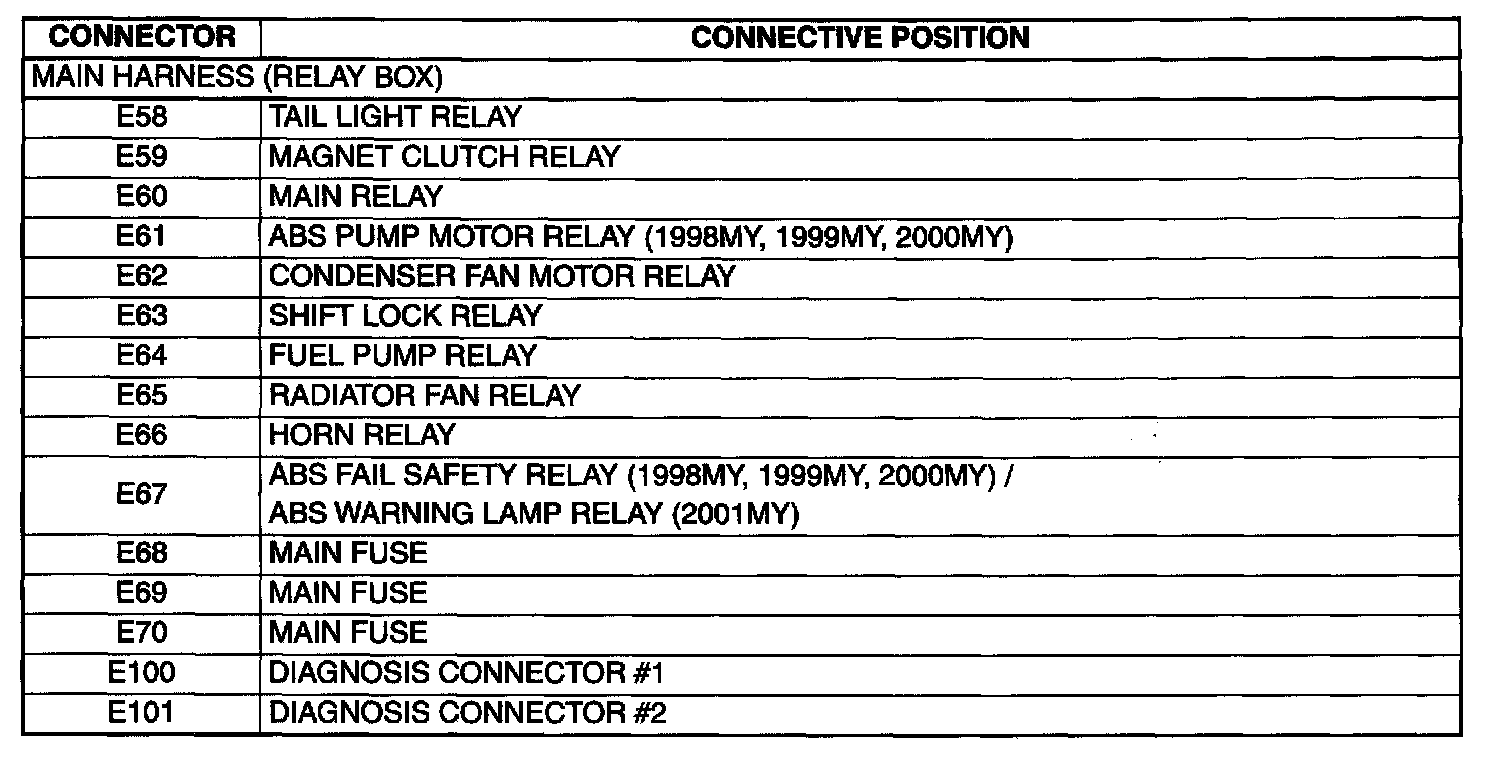

E: Main Harness (Relay Box) Connectors:
