Home >> Suzuki >> 1999 >> Esteem GLX Wagon Plus L4-1.6L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Stop Lamp Switch With Pedal Position Switch Circuits Check

Stop Lamp Switch With Pedal Position Switch Circuits Check

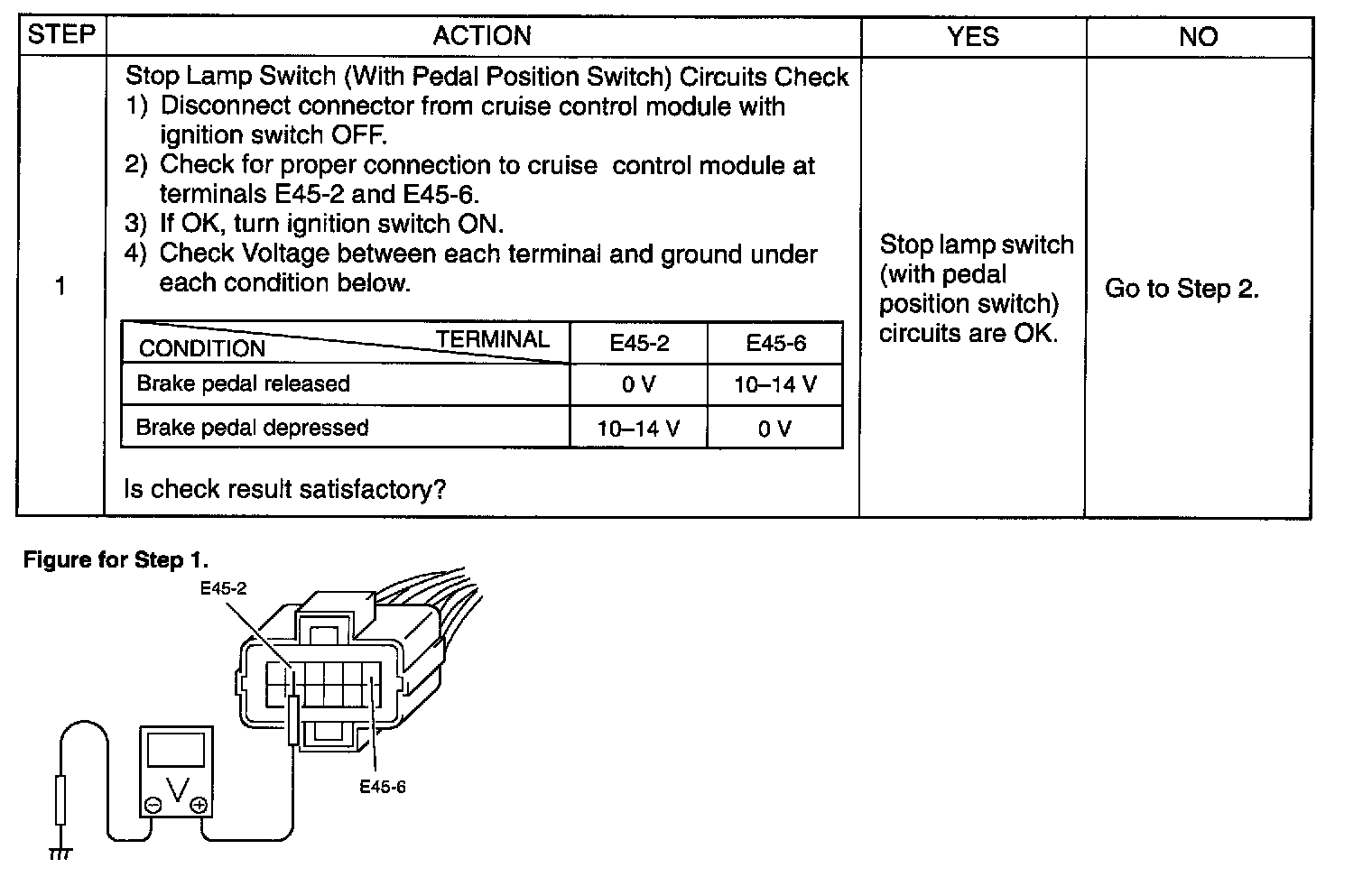

Step 1:

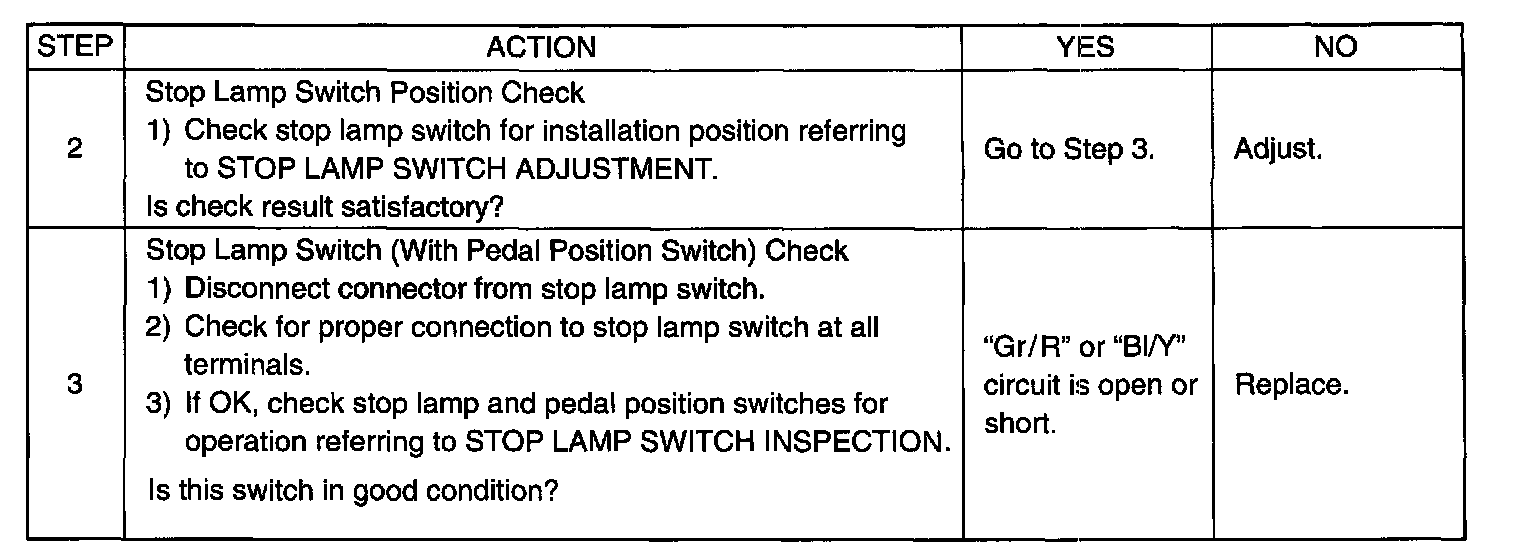

Steps 2 - 3:
