Table D: DTC No Output From Diag. Term W/Diag. Switch to Ground

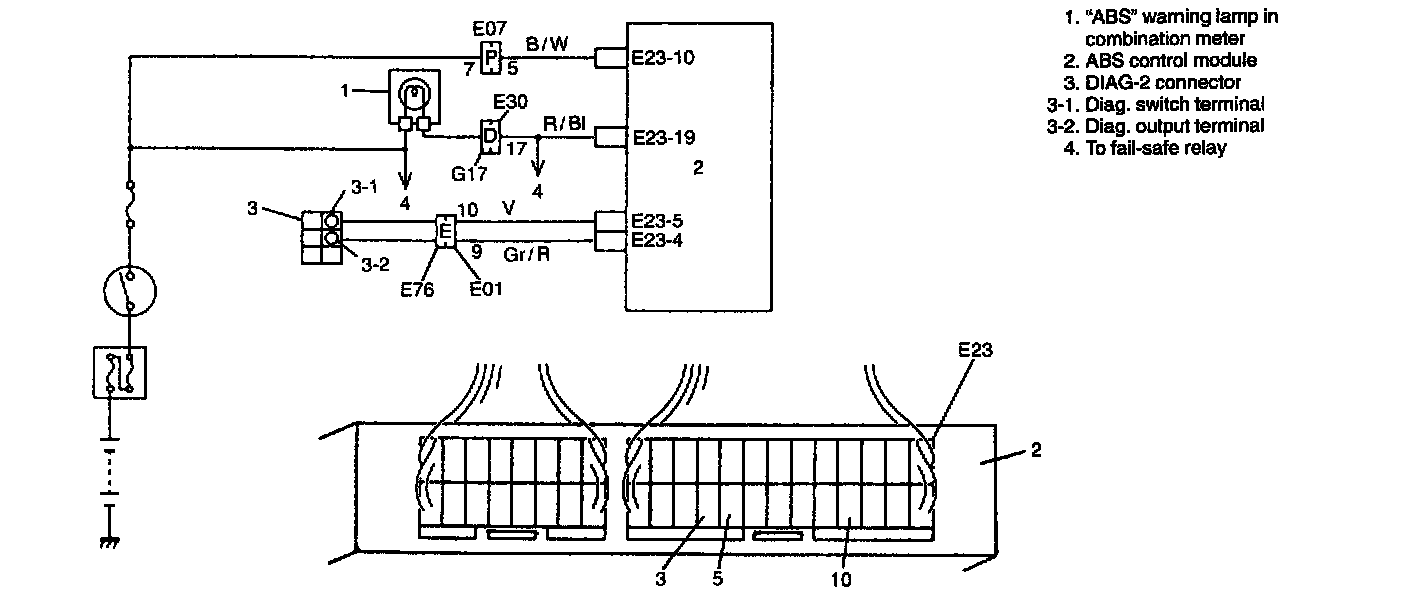

CIRCUIT DESCRIPTION
When the diag. switch terminal is connected to the ground with the ignition switch turned ON, the ABS control module outputs a diagnostic trouble code (DTC, voltage change signal) from the diag. output terminal. Connecting or shorting the diag. switch terminal and the output terminal will set the mode to clear DTC.

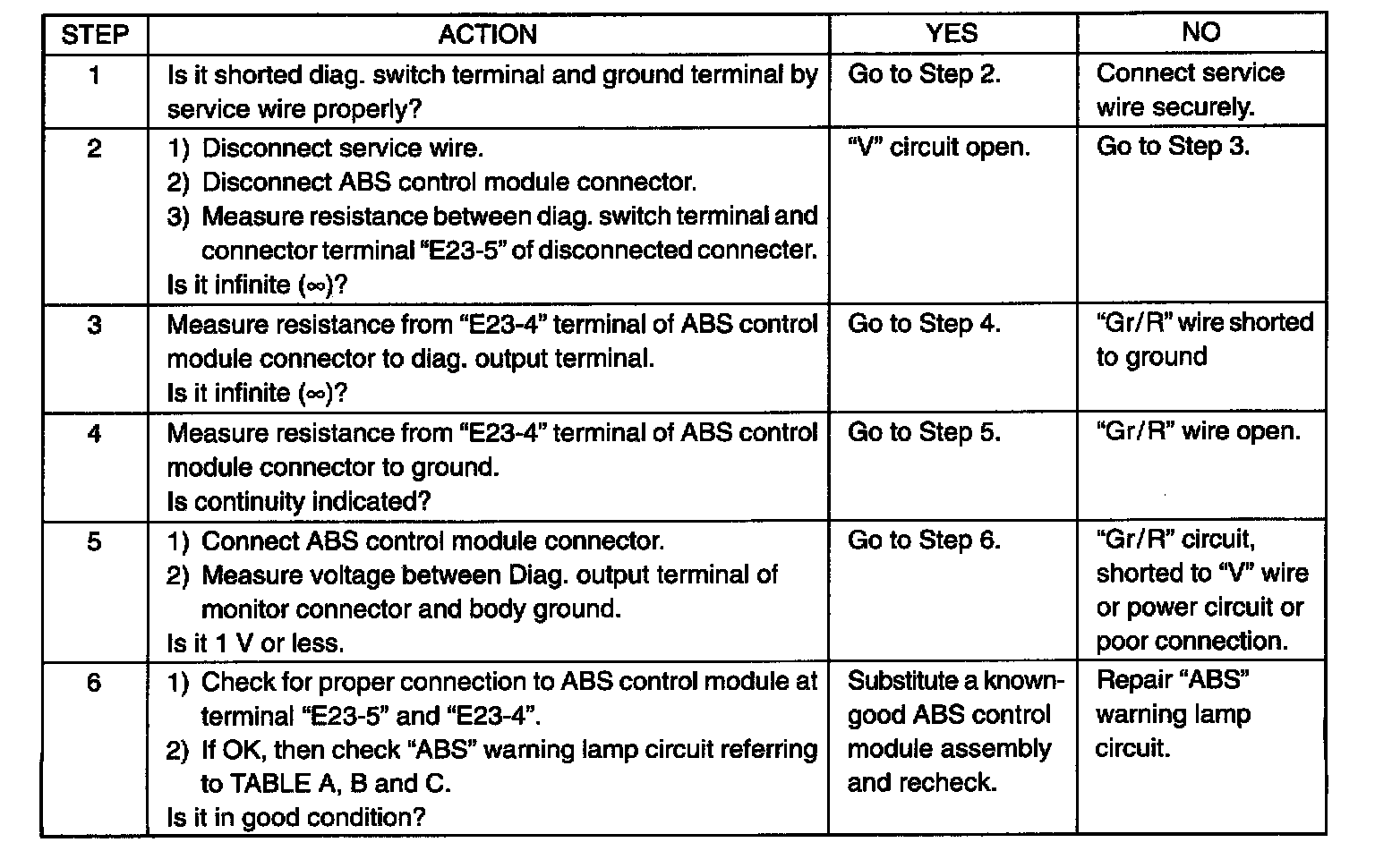

Steps 1-6:

INSPECTION
