With Manufacturer's Scan Tool

DIAGNOSTIC TROUBLE CODE (DTC) CHECK
USING SCAN TOOL

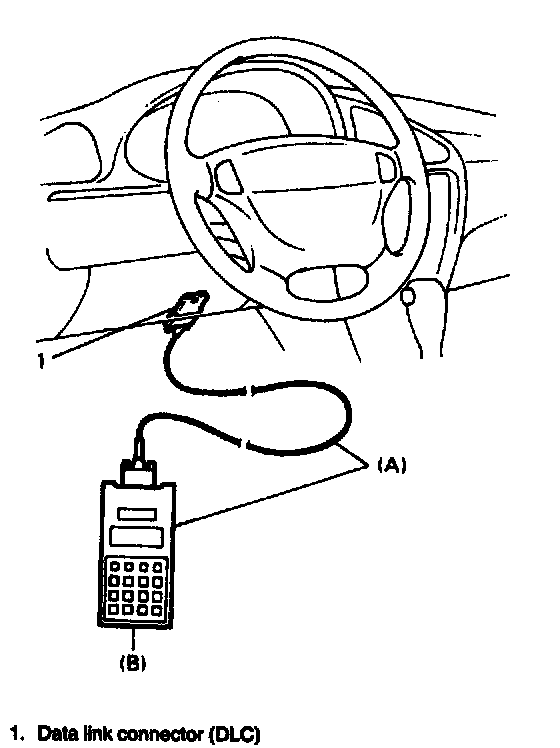

1. After setting cartridge for ABS to SUZUKI scan tool, connect SUZUKI scan tool to data link connector.
Special Tools
(A): 09931-76011 (SUZUKI scan tool)
(B): Cartridge for ABS or Mass Storage Cartridge
2. Turn ignition switch ON.
3. Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operator's manual for further details.
4. After completing the check, turn ignition switch off and disconnect SUZUKI scan tool from DLC.
