Front Door Panel: Service and Repair

Front Door Trim Panel Removal and Installation

1. Remove window regulator handle (2) (if equipped).
For its removal, pull off snap by using a cloth (1) as shown in figure.

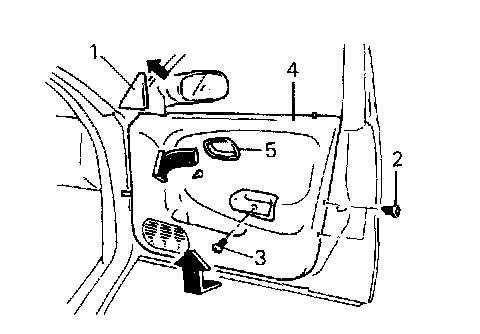

2. Remove door mirror garnish (1), clips (2), and door trim mounting screw (3).
3. Remove inside handle assembly mounting screw (5), and remove inside handle assembly from door trim by sliding it forward.




4. Remove door trim (4).
5. Disconnect power window switch coupler (if equipped).
6. Remove door grip stay.

Reverse removal procedure to install Door Trim Panel.

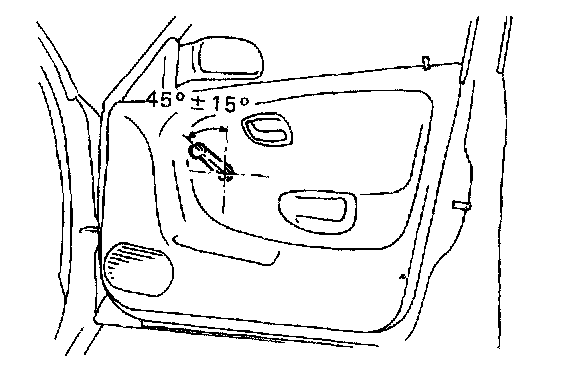

- Install door window regulator handle so that it has a 45 ° angle when glass is fully closed, as illustrated.
