Throttle Position Sensor: Testing and Inspection
Check
throttle position sensor

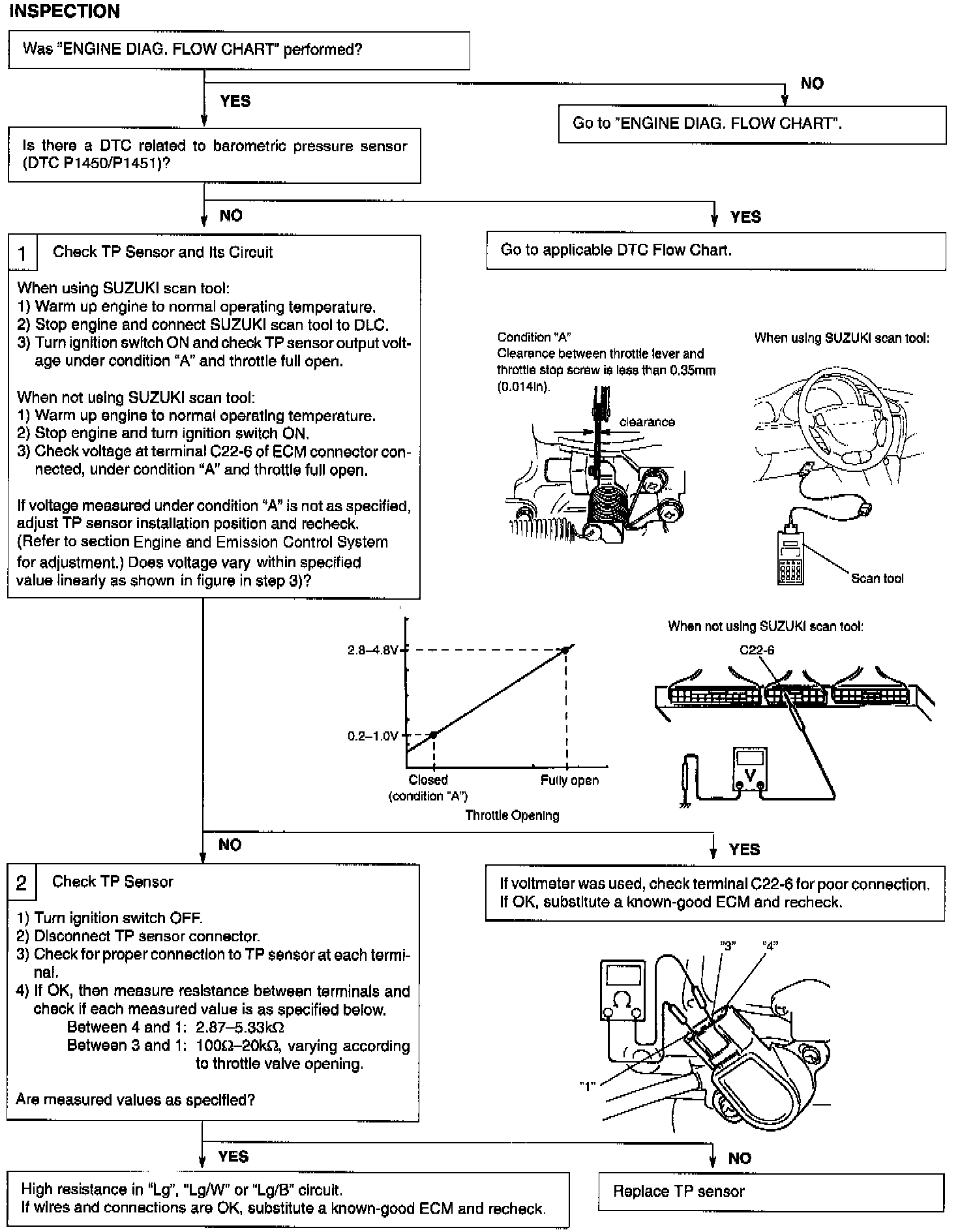

, referring to step 2 of DTC P0121 flow chart, shown above. If any malfunction is found, replace.
