Locations
>>
Connector Locations
>>

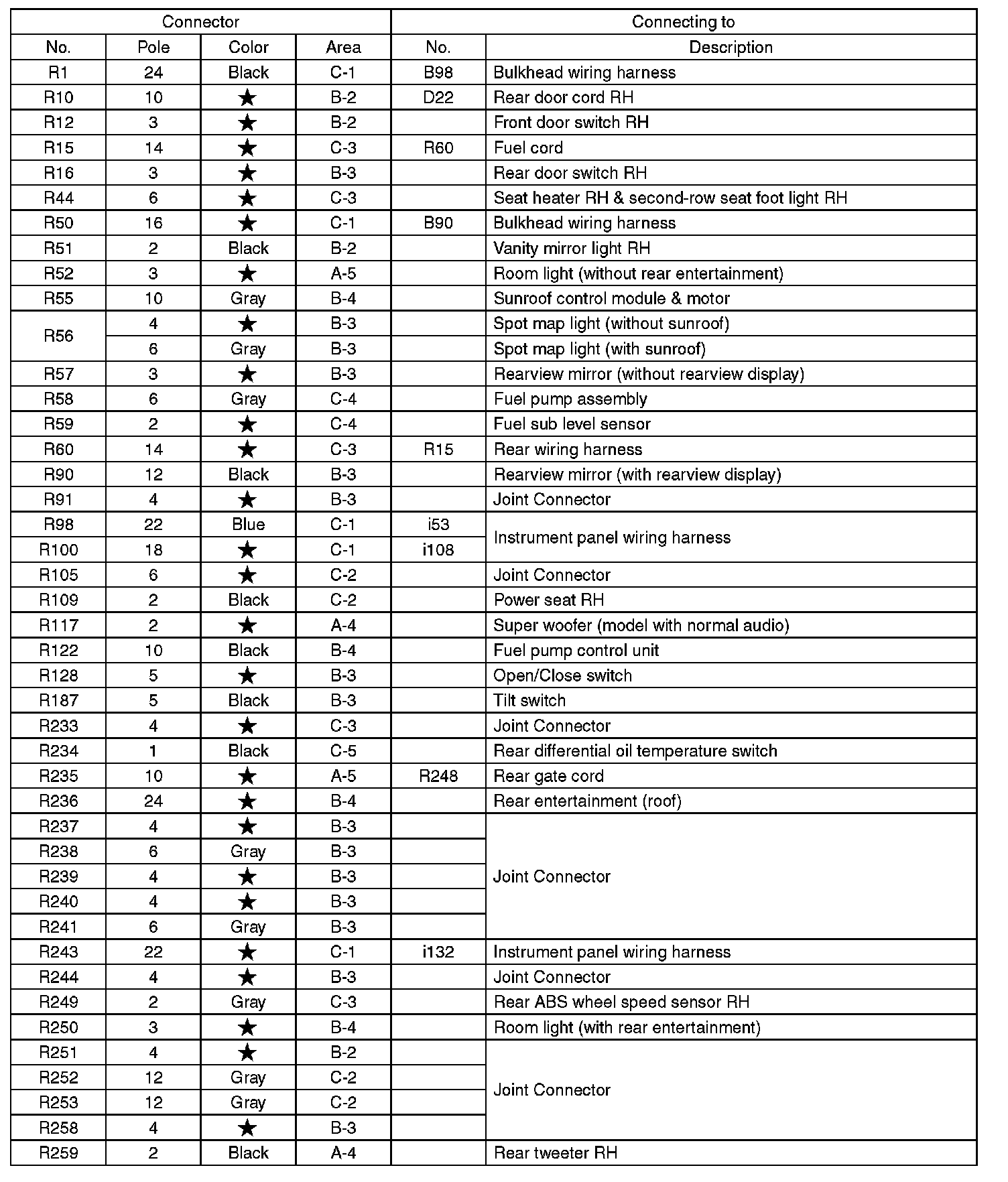

R1-R400, AB18-AB61 & R2-R287, AB17-AB41

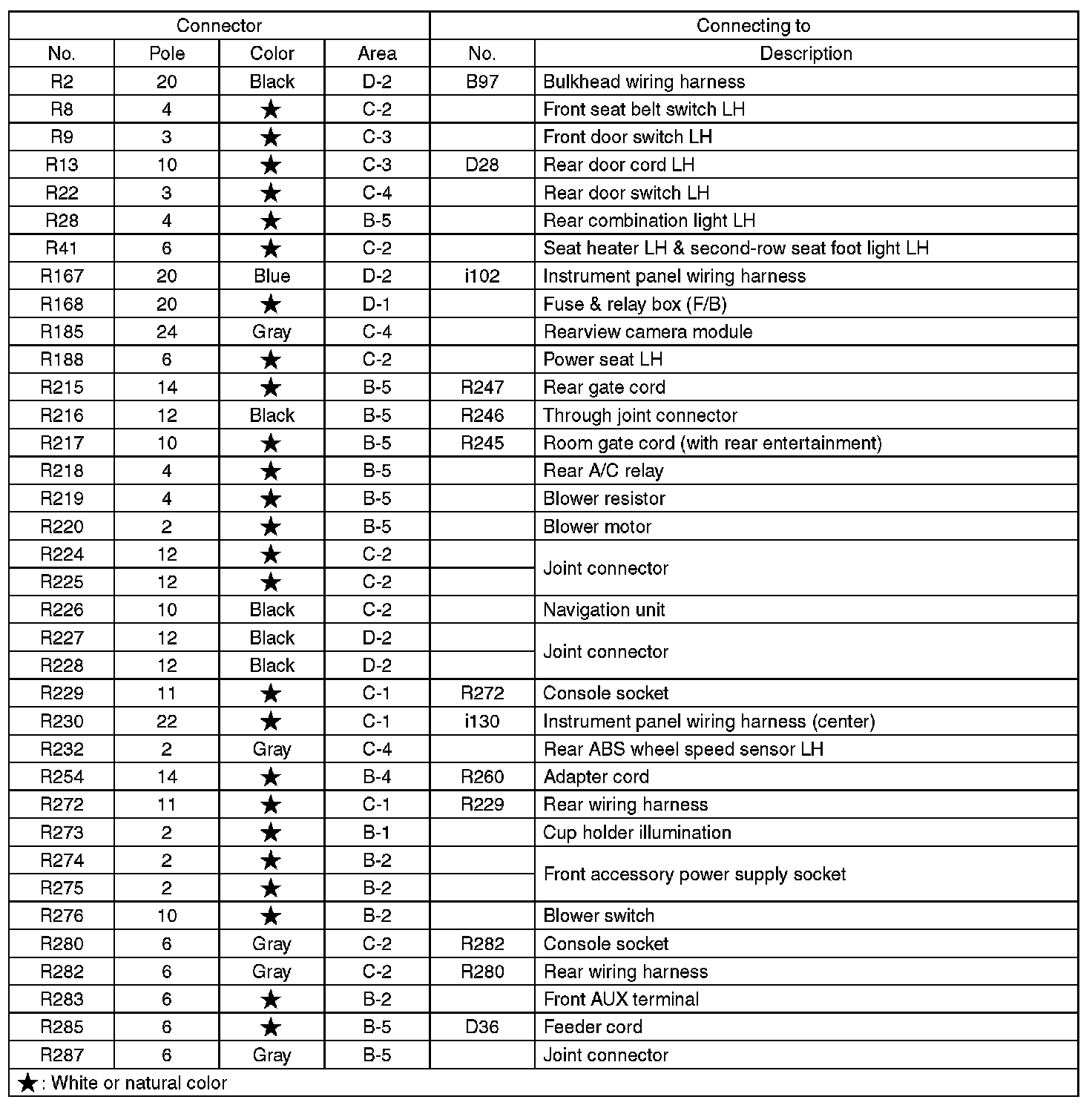

R1-R400, AB18-AB61 & R2-R287, AB17-AB41
Rear Wiring Harness
LOCATION
PASSENGER'S SIDE
DRIVER'S SIDE
