Outback F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Brake Hose/Line
Brake Hose/Line
FRONT BRAKE PIPES AND HOSES
^

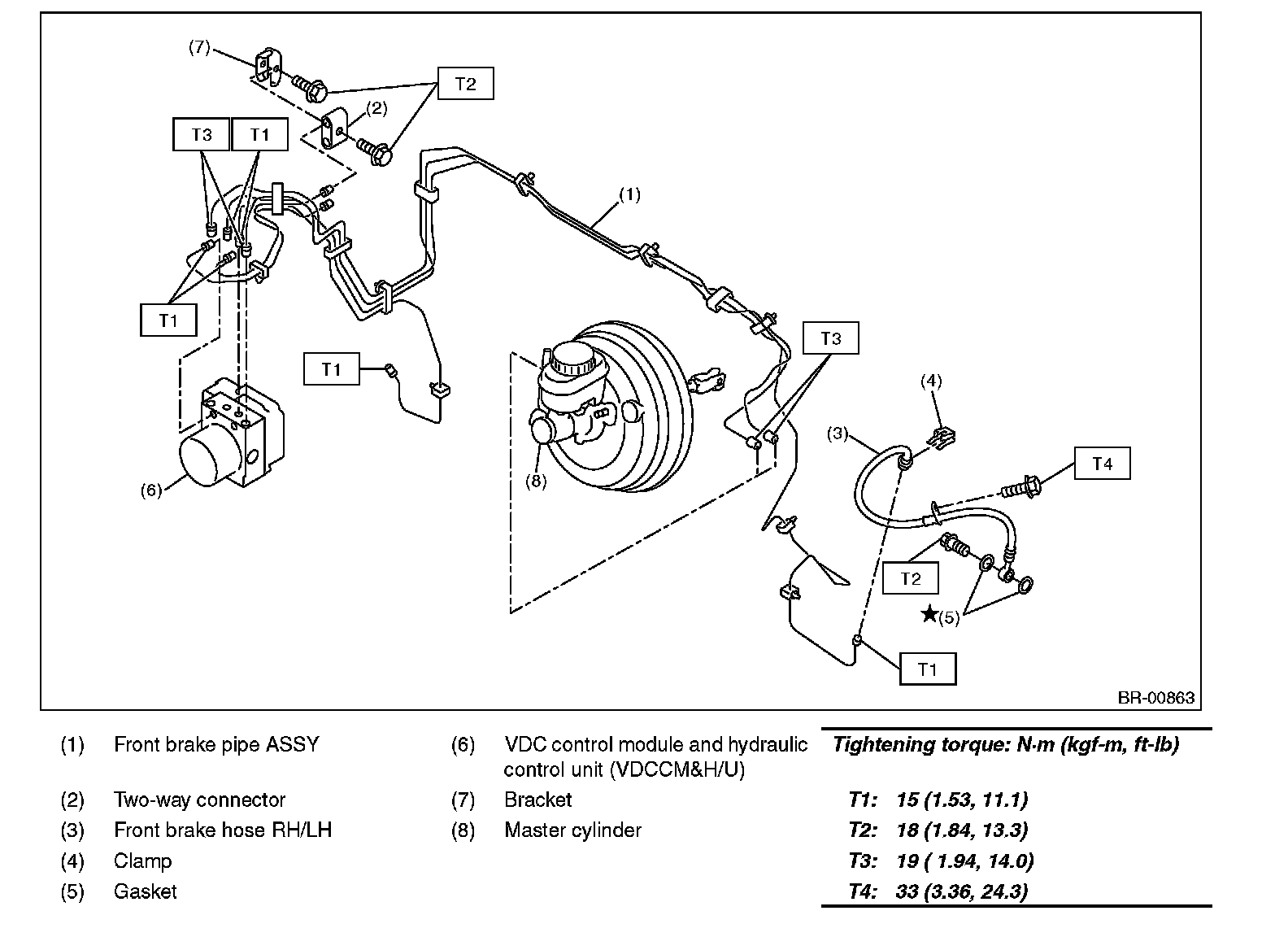

Models without EyeSight
^

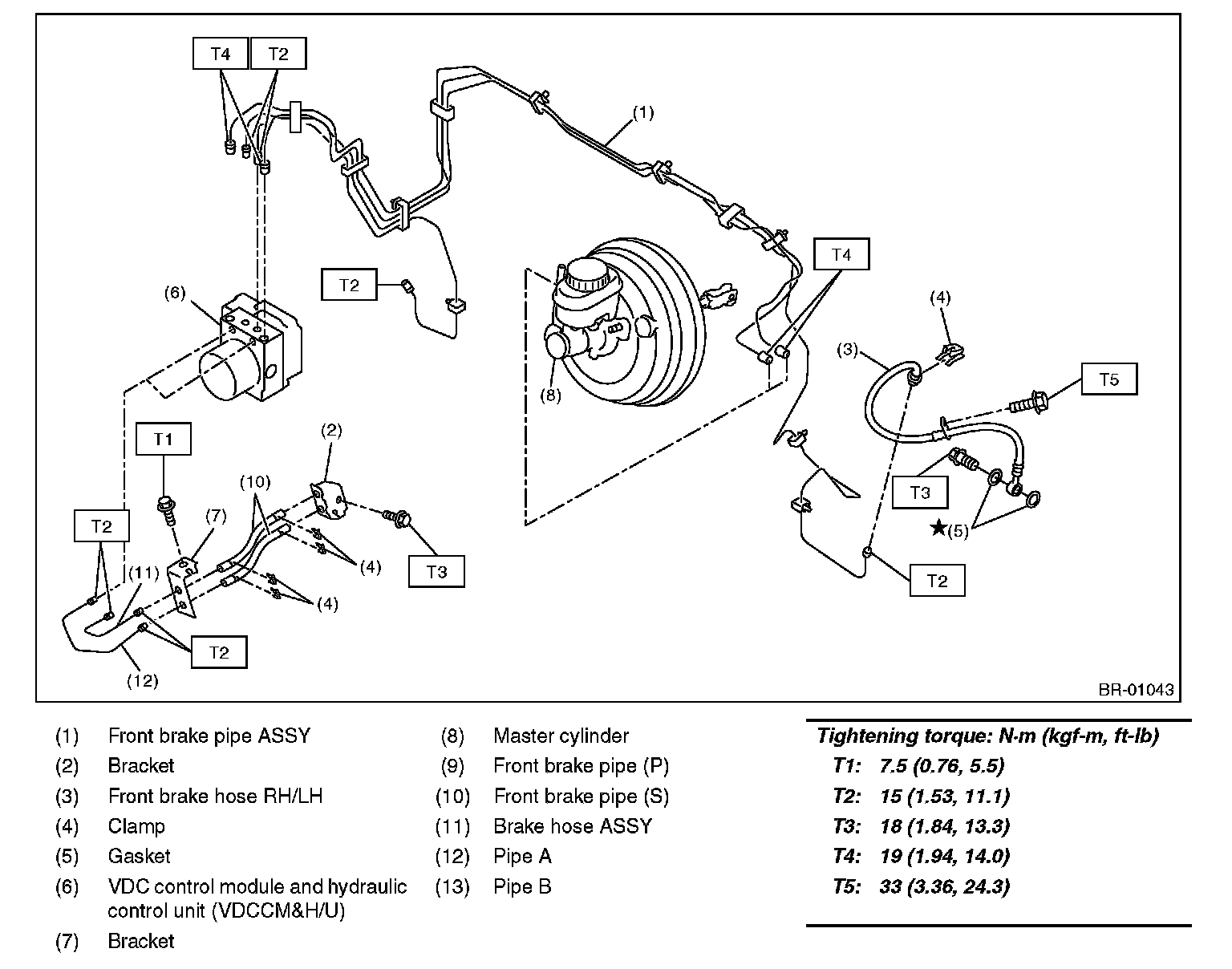

Models with EyeSight

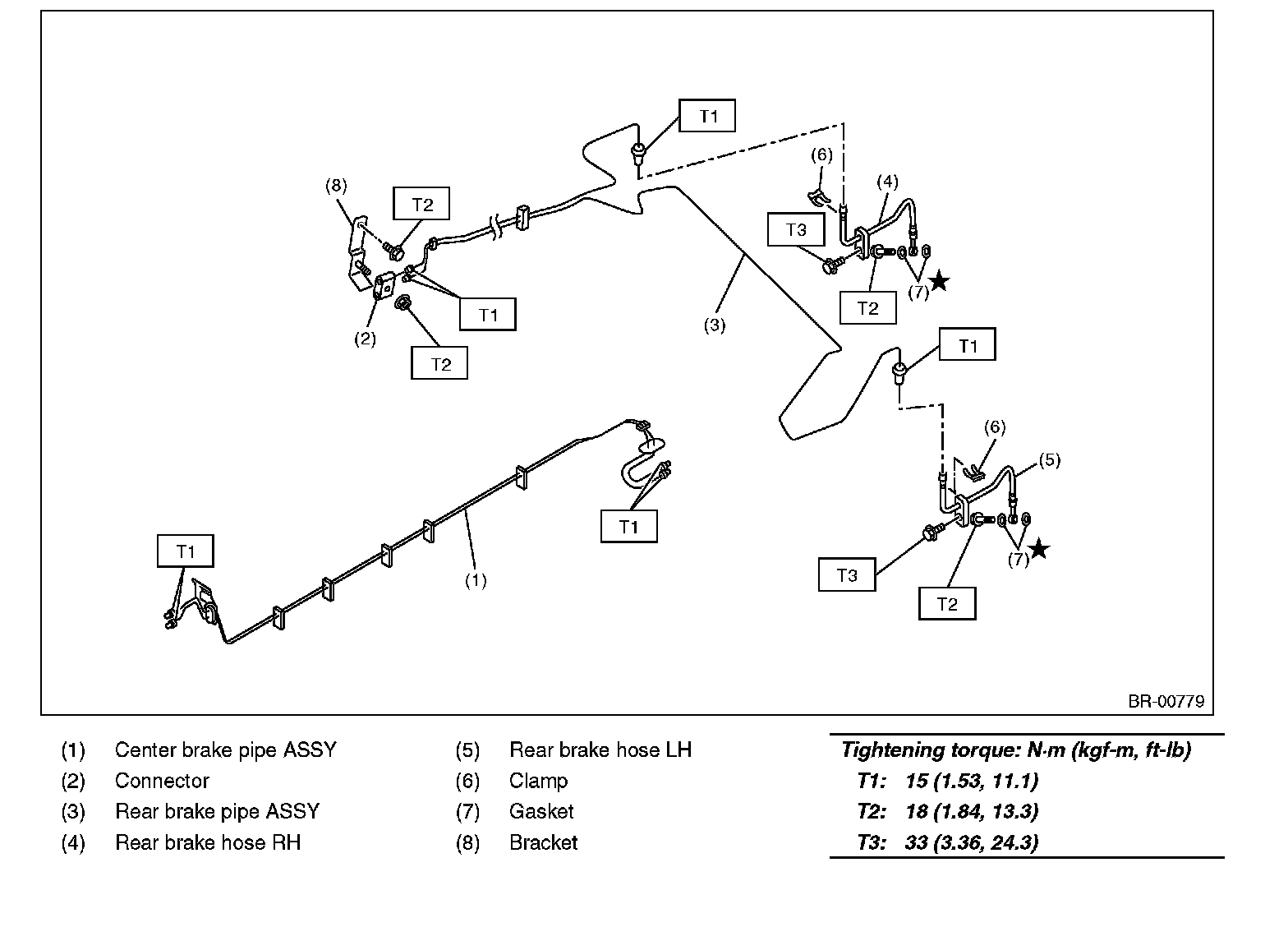

CENTER AND REAR BRAKE PIPES AND HOSES
