Exploded Views
>>
Body and Frame
Body and Frame
General Description
COMPONENT
1.

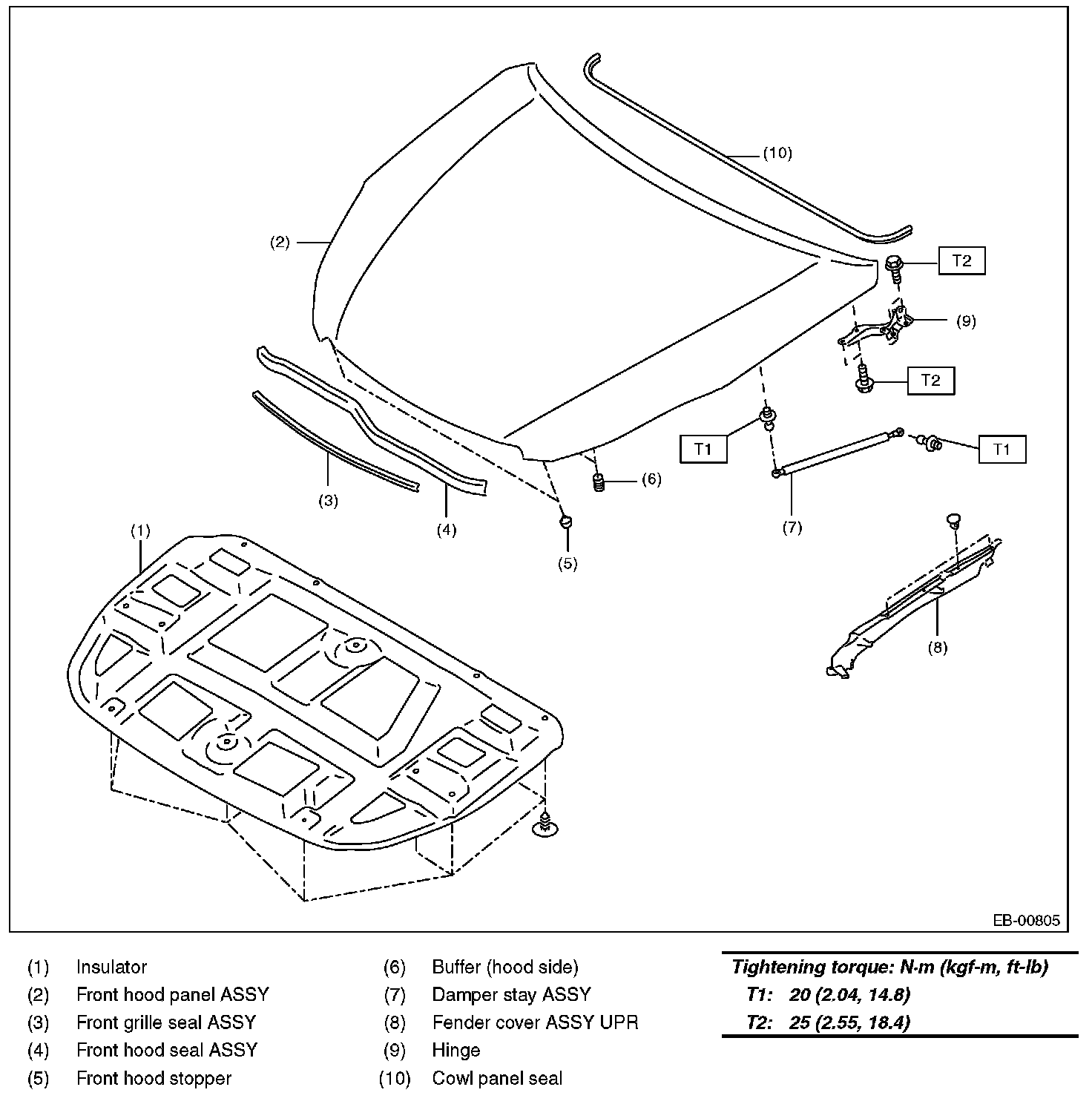

FRONT
HOOD
2.

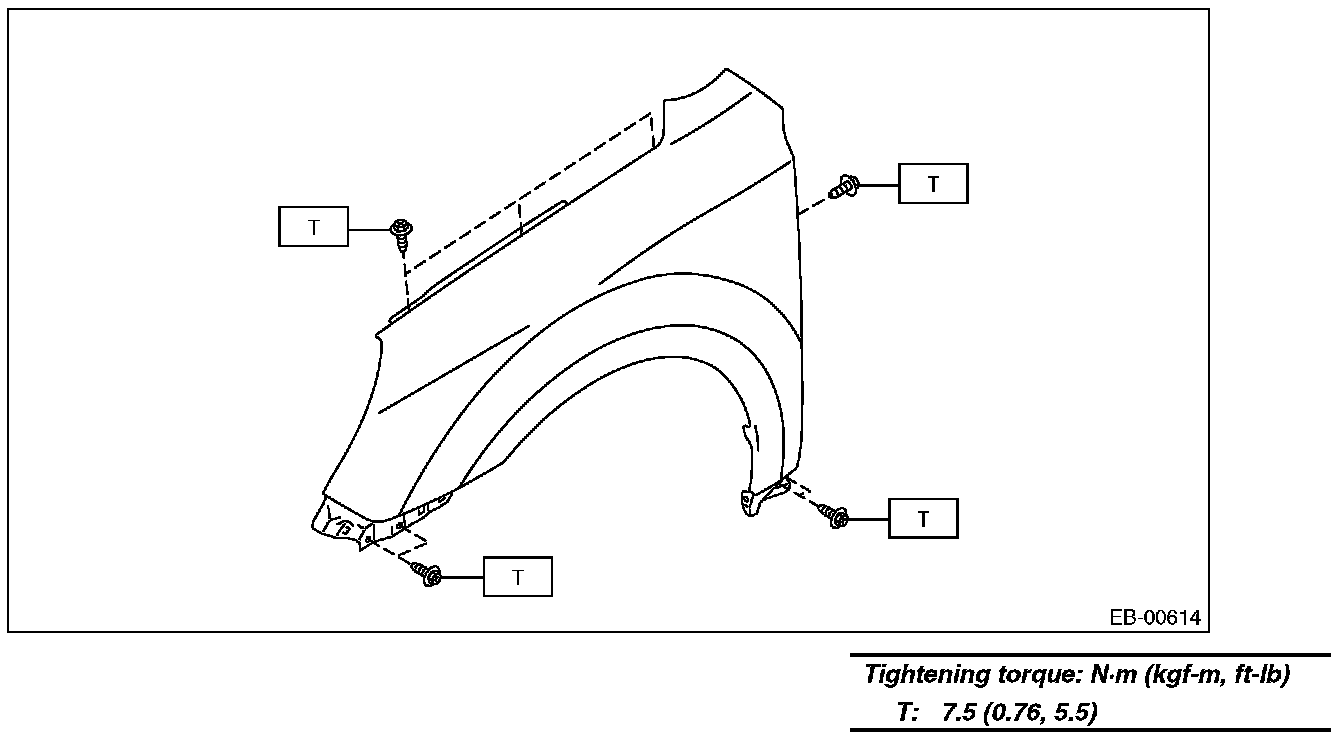

FRONT
FENDER
3.

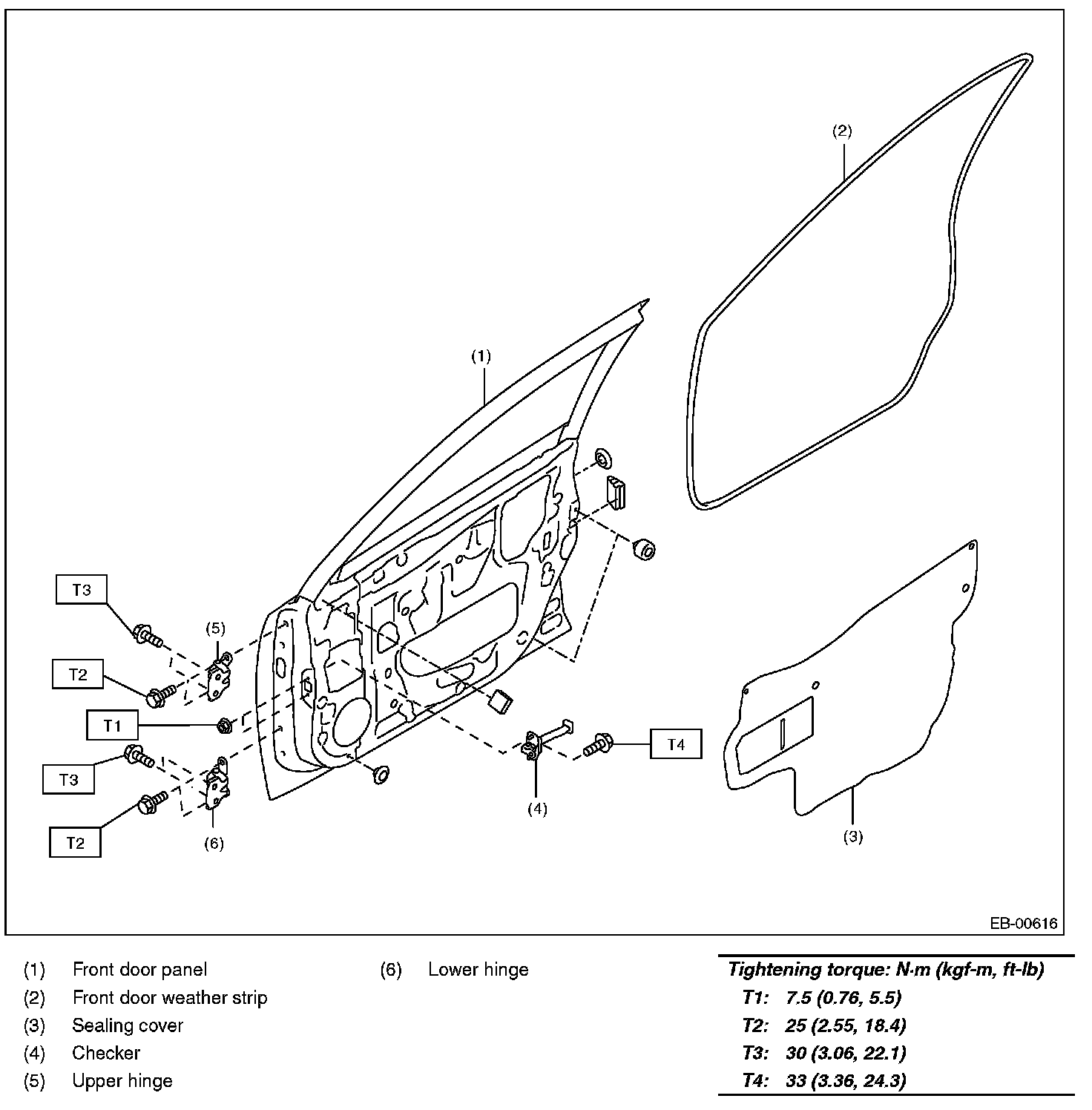

FRONT DOOR
4.

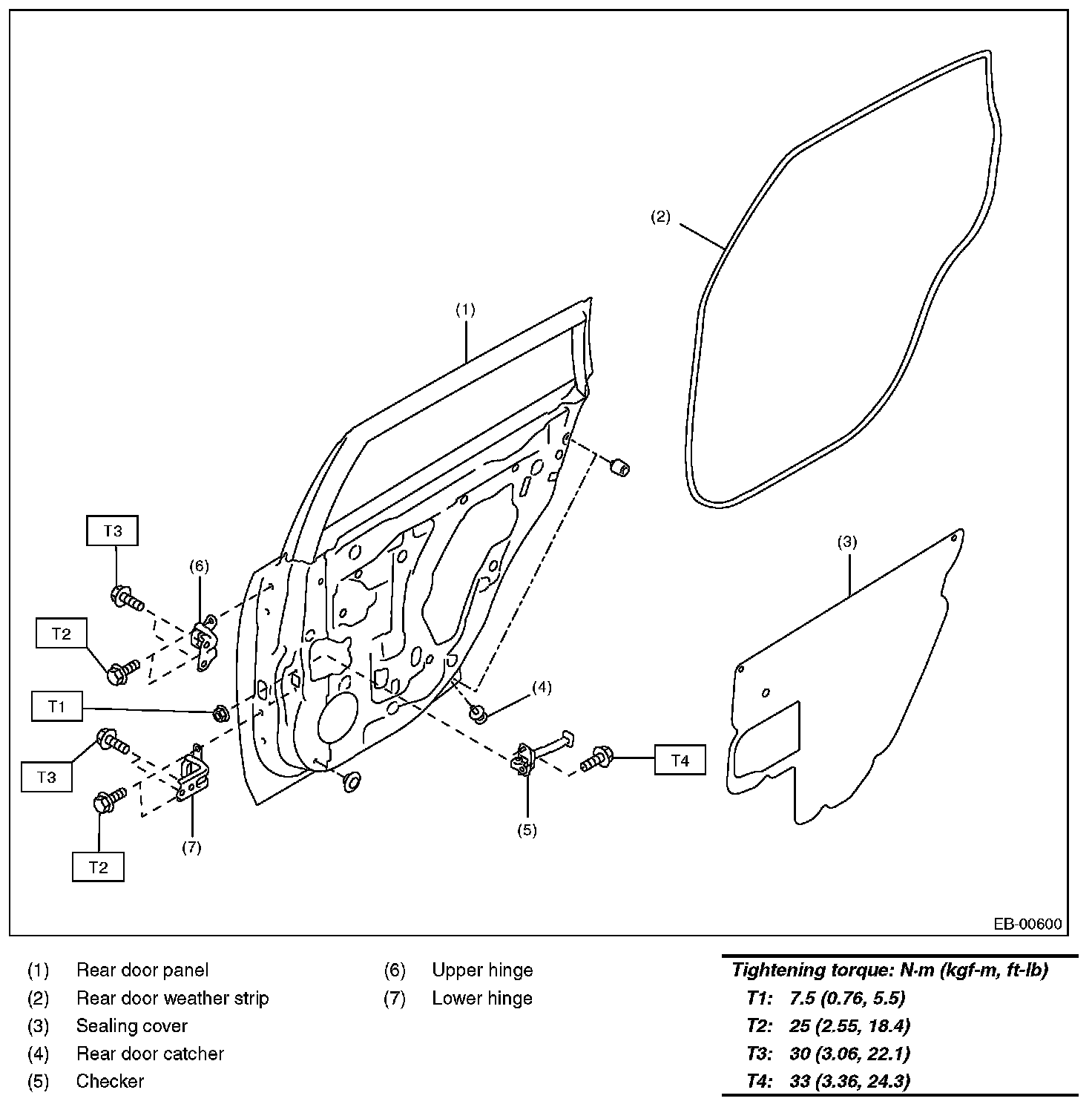

REAR DOOR
5.

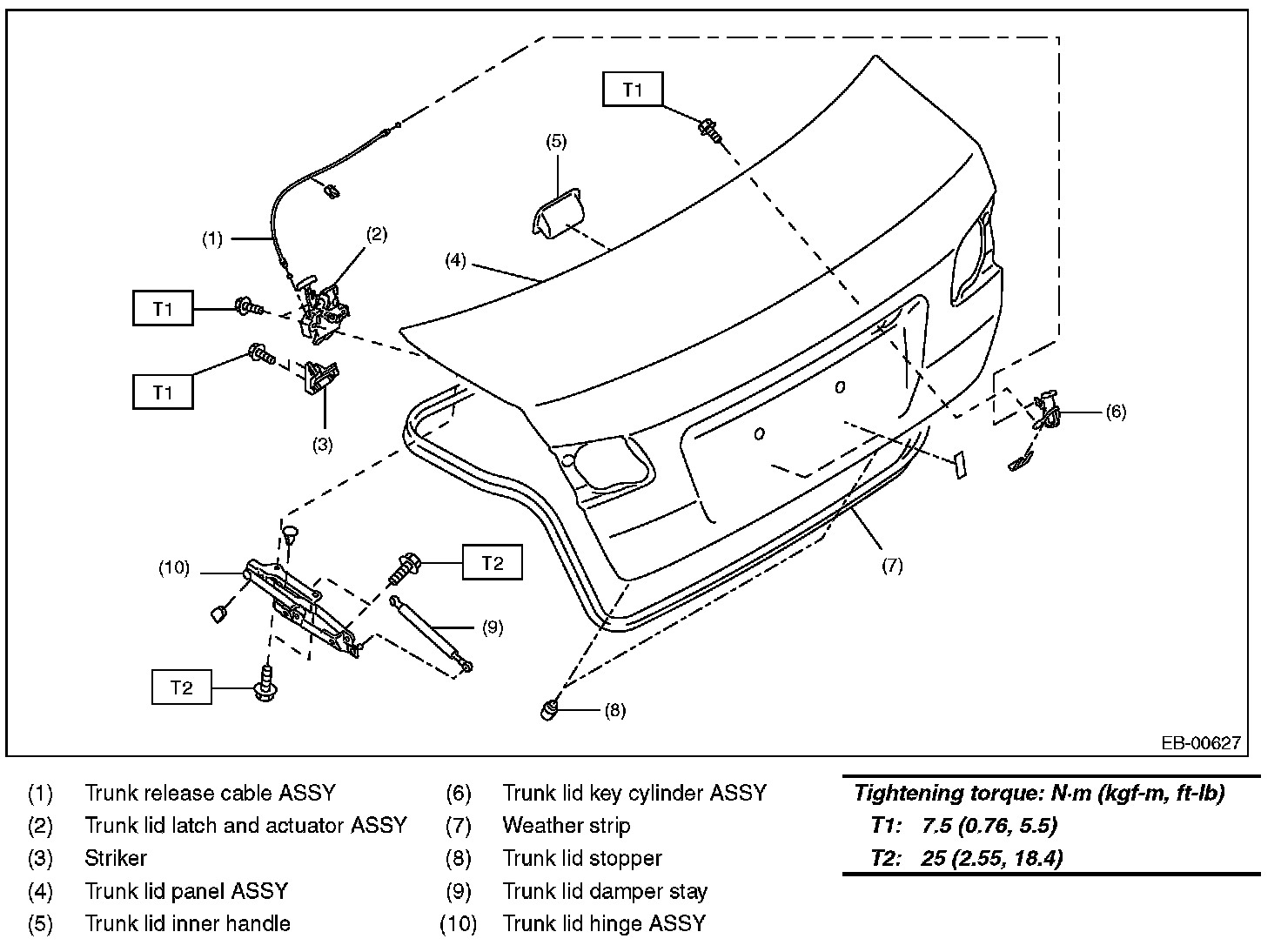

TRUNK LID PANEL
6.

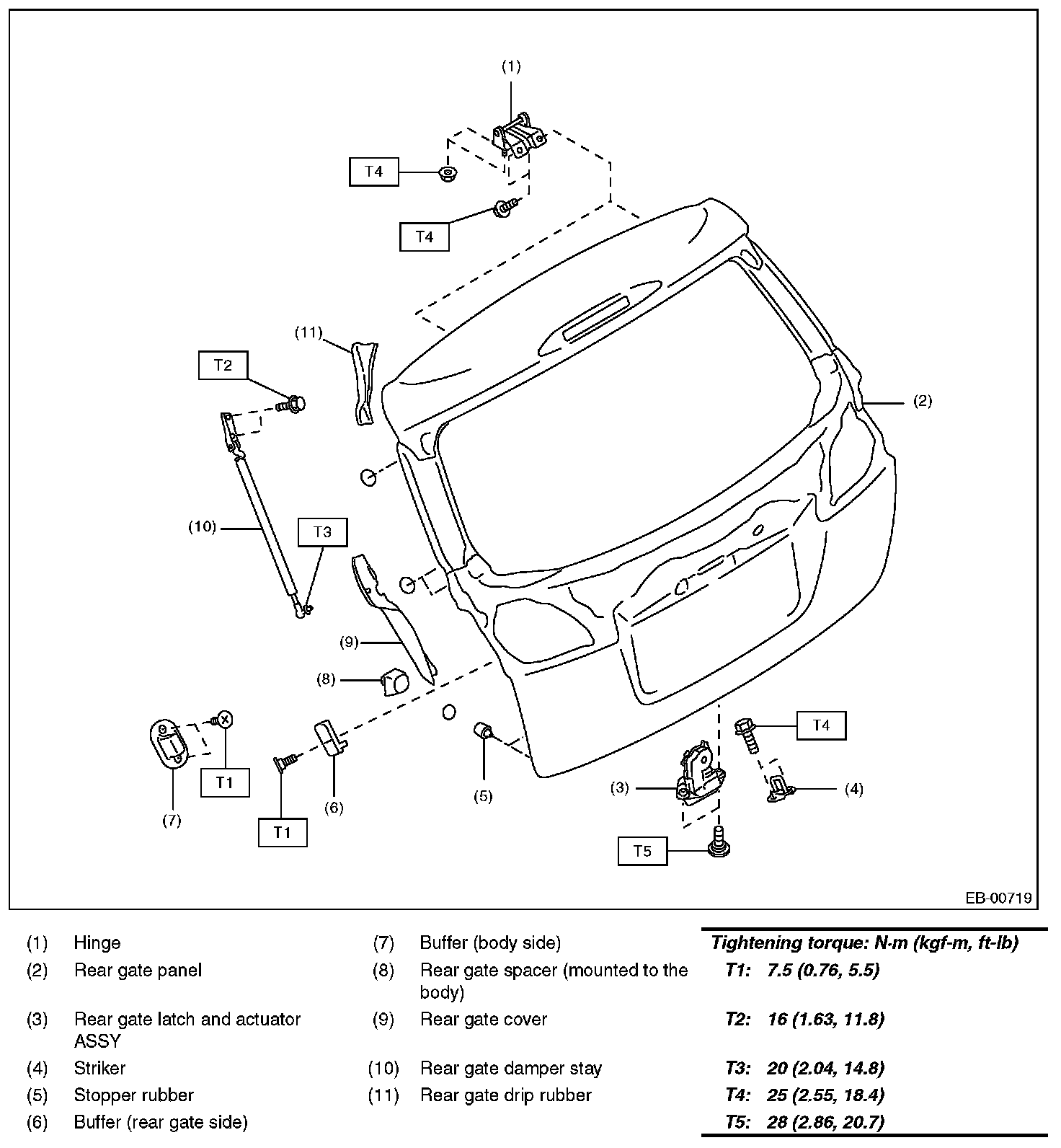

REAR GATE
