Primary Pulley, Secondary Pulley and Variator Chain and Reduction Drive
Primary Pulley, Secondary Pulley and Variator Chain and Reduction Drive

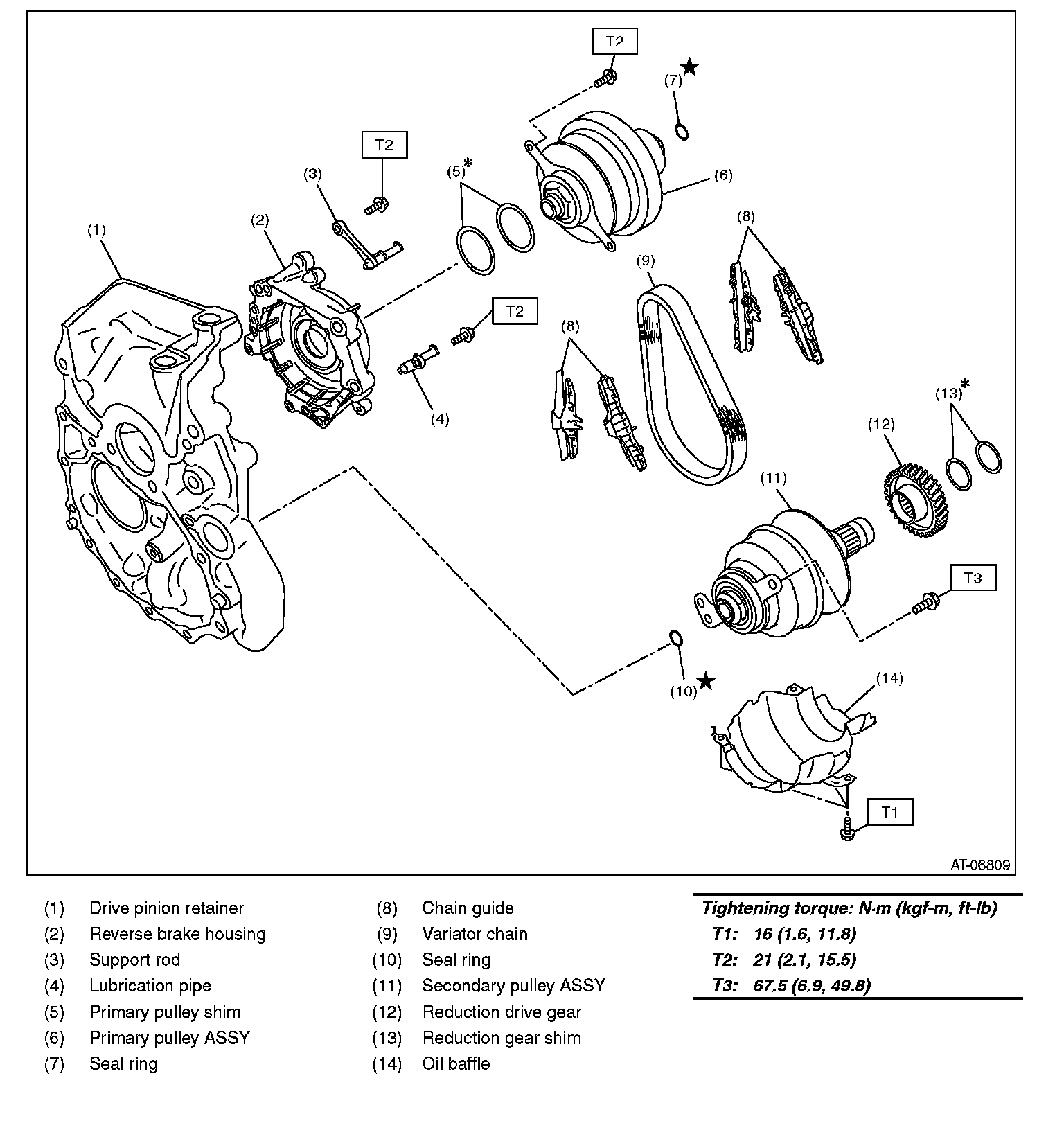

PRIMARY PULLEY, SECONDARY PULLEY & VARIATOR CHAIN AND REDUCTION DRIVE GEAR
