Heat Shield: Service and Repair

Heat Shield Cover

REMOVAL

1. FRONT HEAT SHIELD COVER

NOTE: For 2.5 L non-turbo model, refer to "EXHAUST SYSTEM" section.

1. Remove the rear exhaust pipe and muffler. (H6 model)
- Rear exhaust pipe
- Muffler

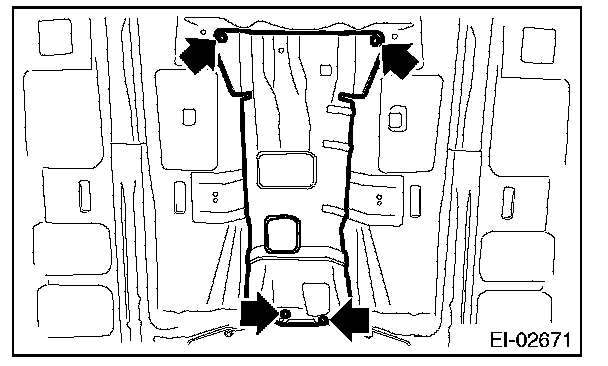

2. Remove the four bolts to remove the front heat shield cover.







2. REAR HEAT SHIELD COVER

NOTE: For 2.5 L non-turbo model, refer to "EXHAUST SYSTEM" section.

1. Remove the muffler. (H6 model)

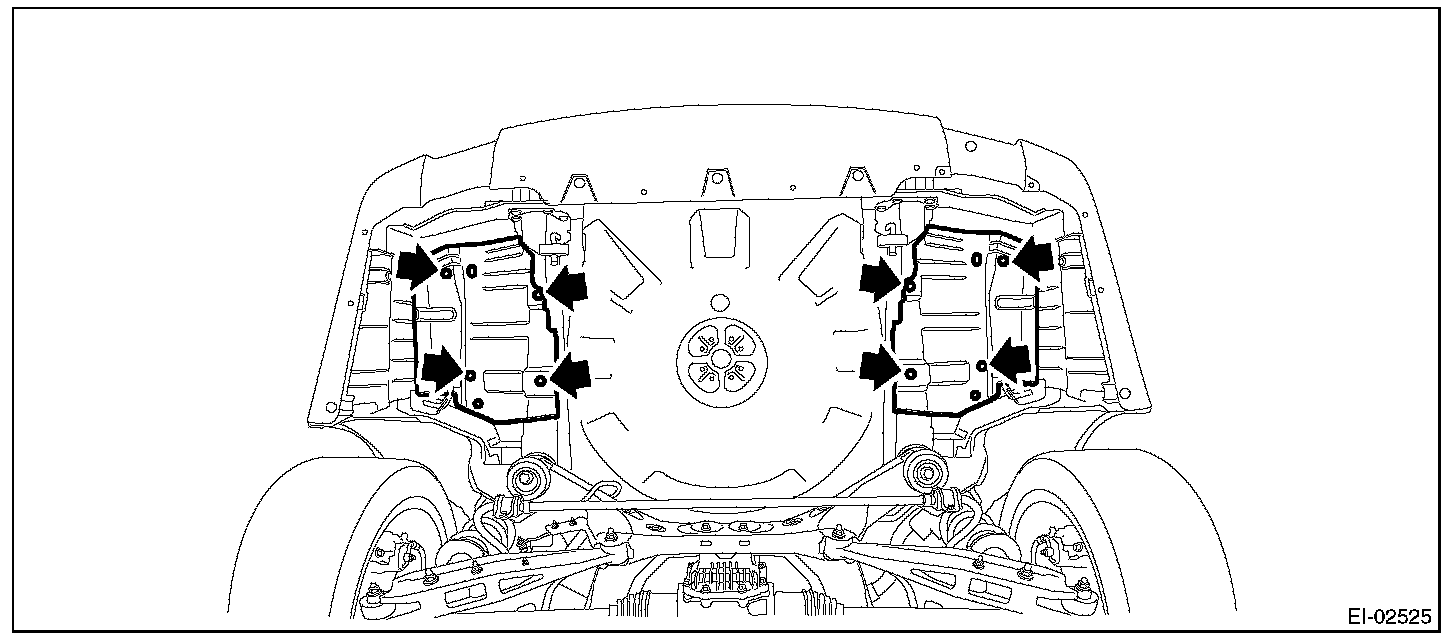

2. Remove the bolts, and remove the rear heat shield cover. (H6 model)







INSTALLATION

Install each part in the reverse order of removal.

Tightening torque:
Refer to "COMPONENT" of "General Description". [Ref. to HEAT SHIELD COVER, COMPONENT, General Description.]
