Extension Case Oil Seal

Extension Case Oil Seal

INSPECTION

Check for leakage of CVTF from the joint section of transmission and propeller shaft. If a leak is found, inspect the propeller shaft and replace the oil seal.

REPLACEMENT

CAUTION:
Immediately after the vehicle has been running or after idling for a long time, the CVTF will be hot. Be careful not to burn yourself.

1) Lift up the vehicle.
2) Remove the center exhaust pipe.

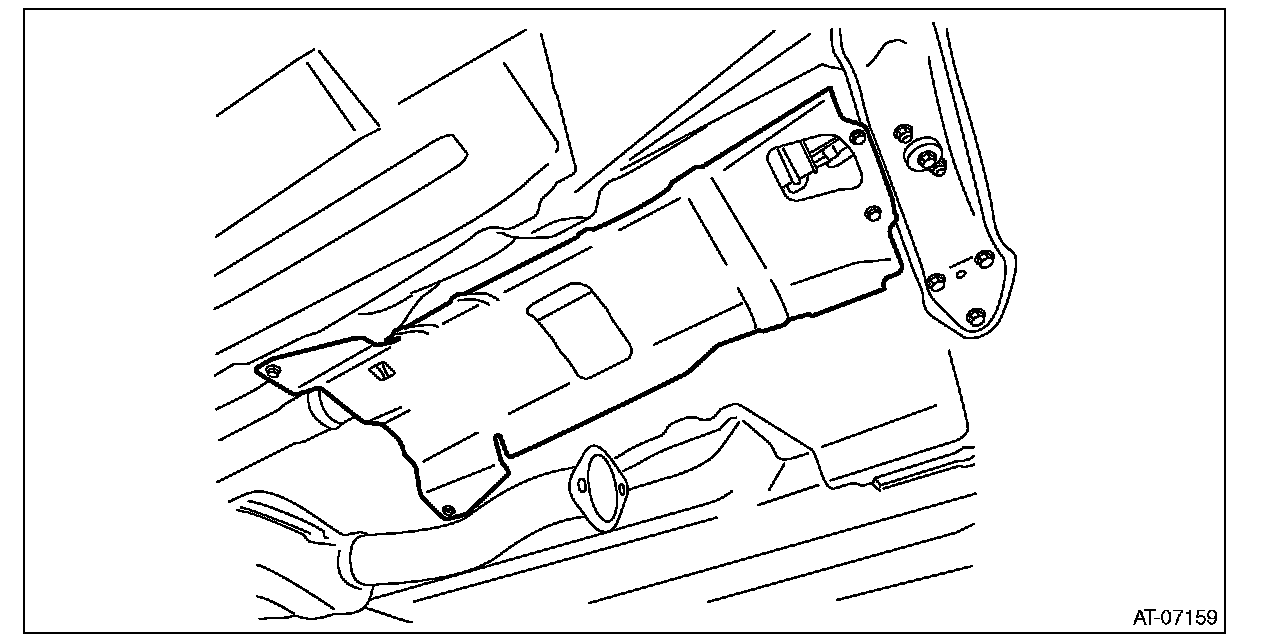

3) Remove the center exhaust cover.





4) Clean the transmission exterior.
5) Remove the propeller shaft.
6) Using a screwdriver or ST, remove the oil seal trying not to damage the extension case.
ST 398527700 PULLER ASSY
7) Using the ST, install the oil seal.

NOTE:
^ Use a new oil seal.
^ Apply CVTF to the oil seal lip and press-fitting surface.

ST 498057300 OIL SEAL INSTALLER
8) Install the propeller shaft.
9) Install the center exhaust cover.

Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)





10) Install the center exhaust pipe.
11) Adjust the CVTF level and check there is no leakage. Adjustments
