5AT Automatic Transmission (Diagnostics)
5AT Automatic Transmission (Diagnostics)

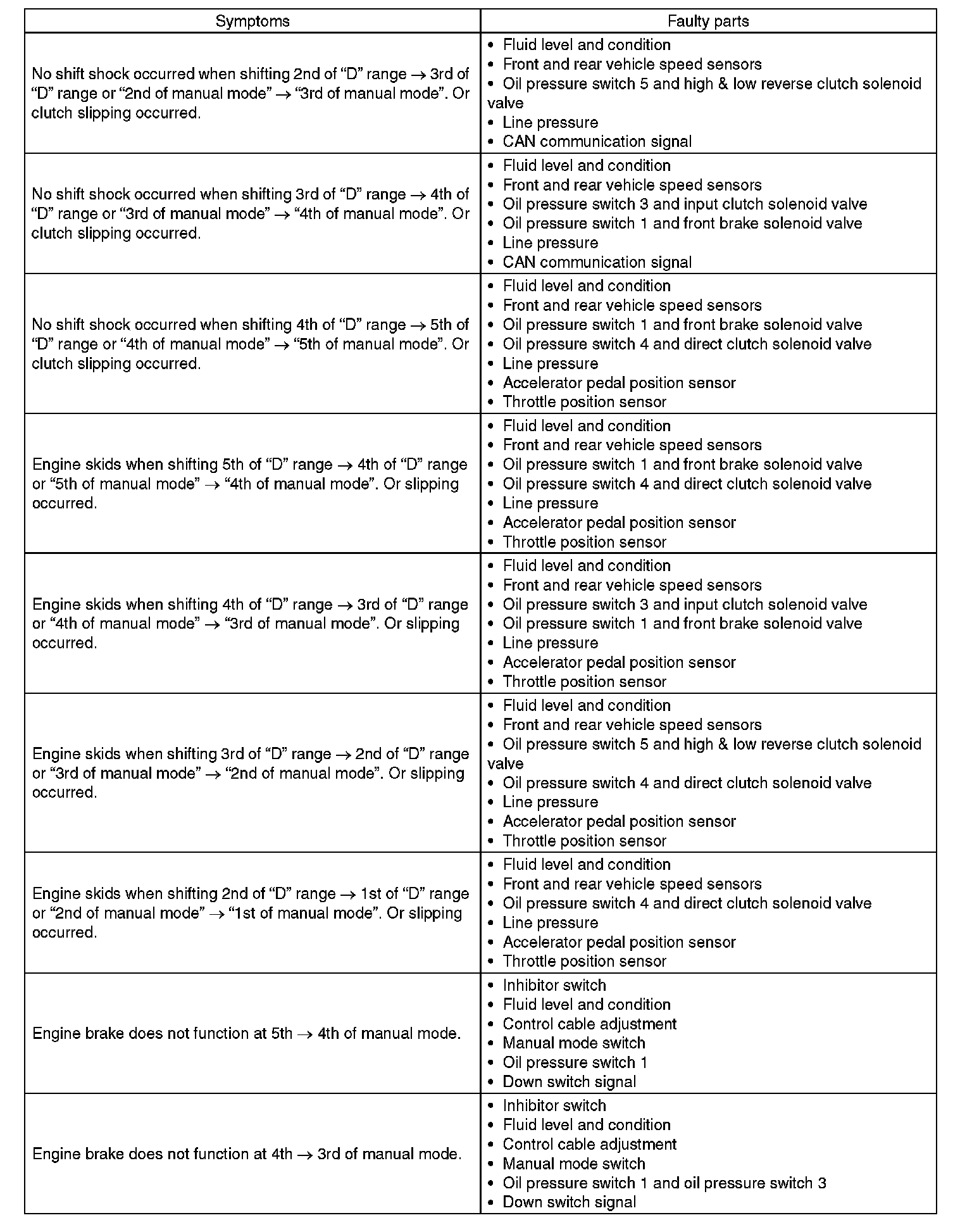

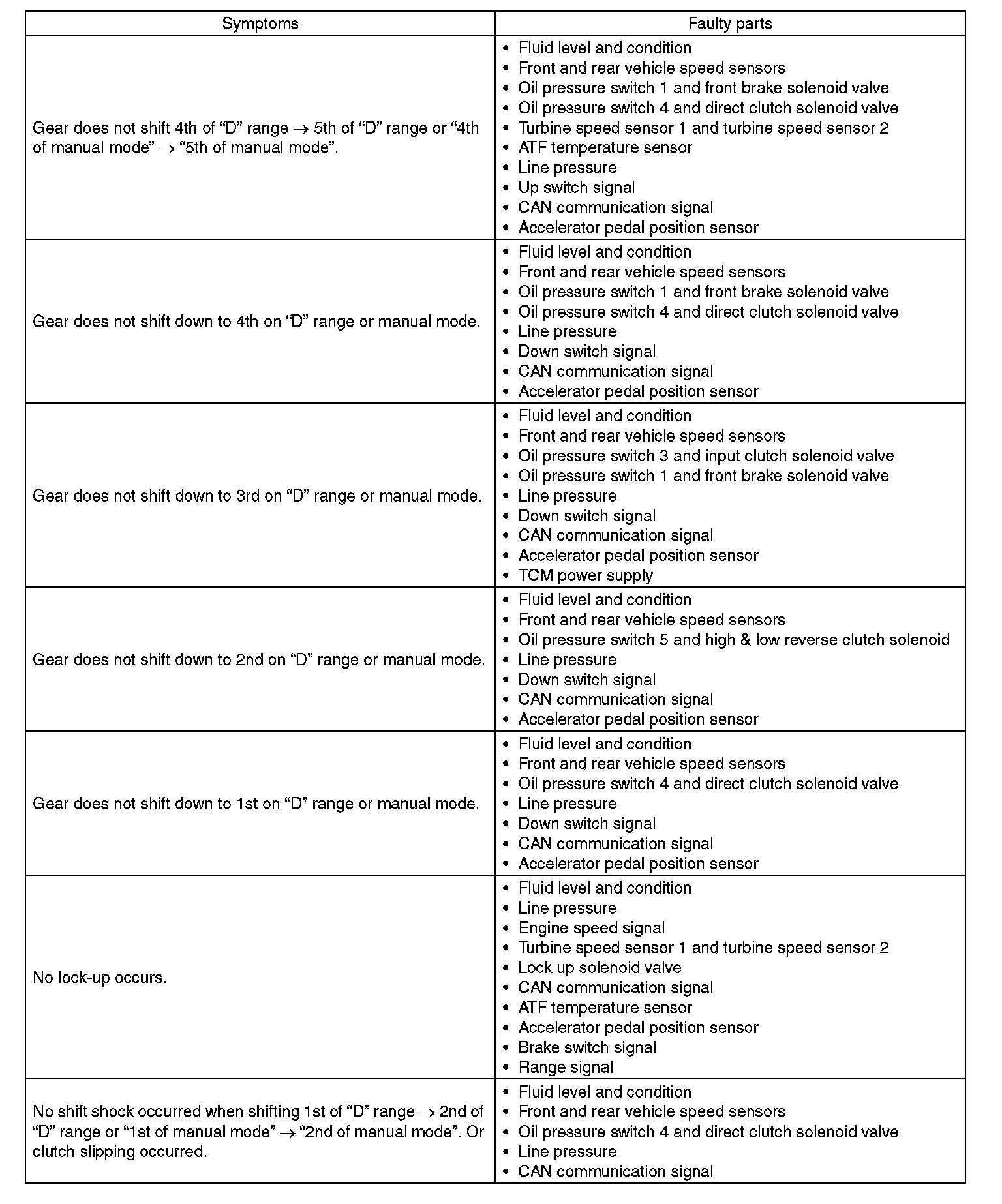

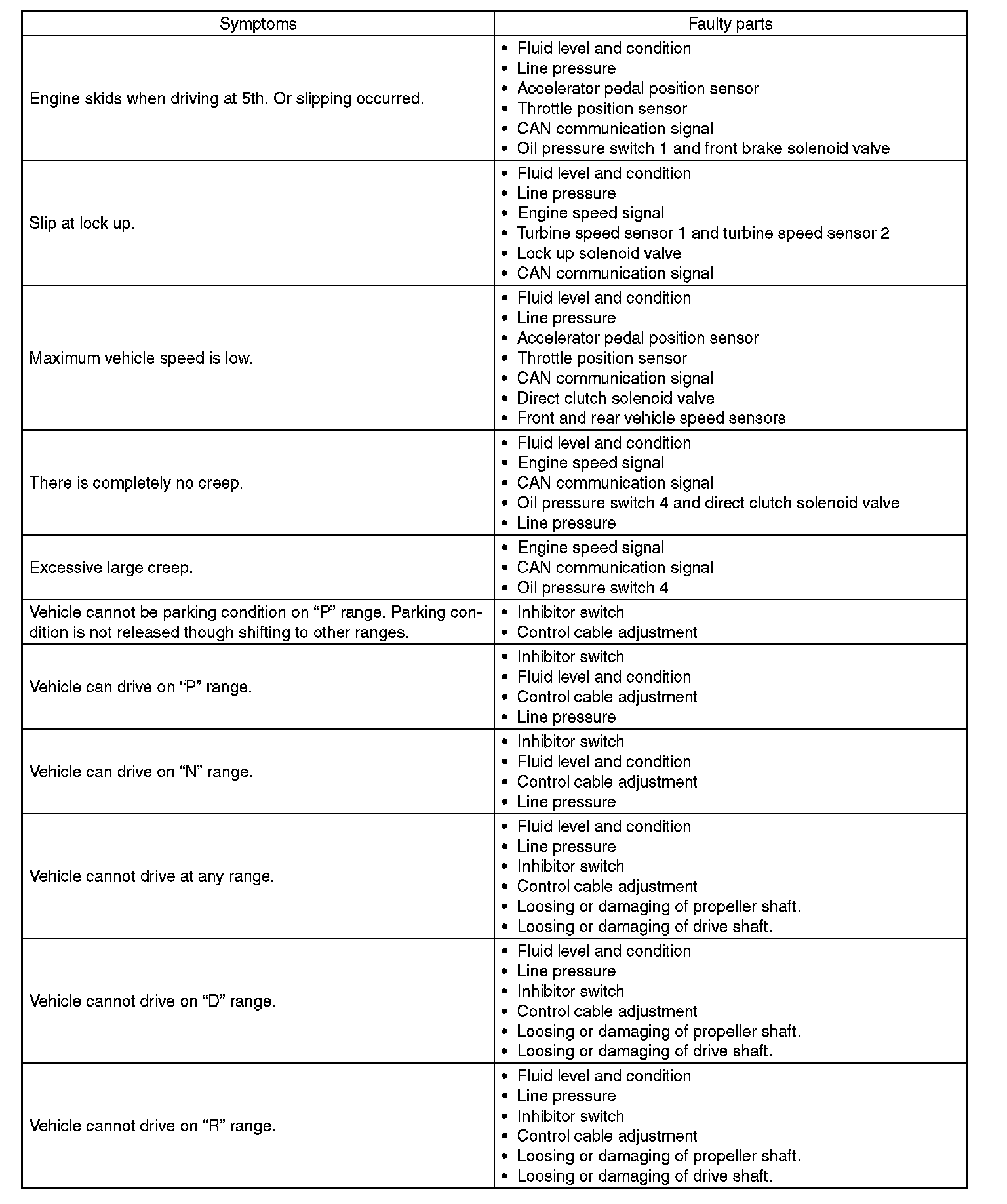

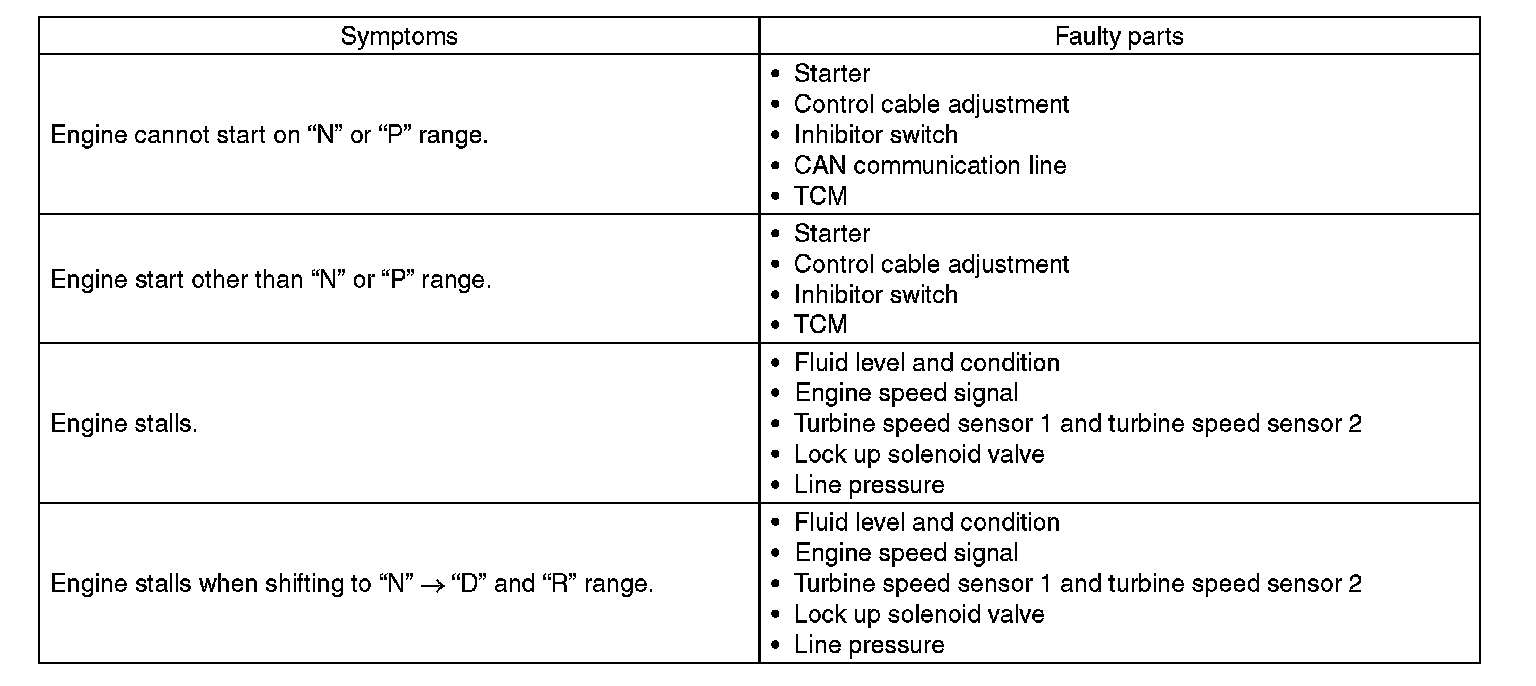

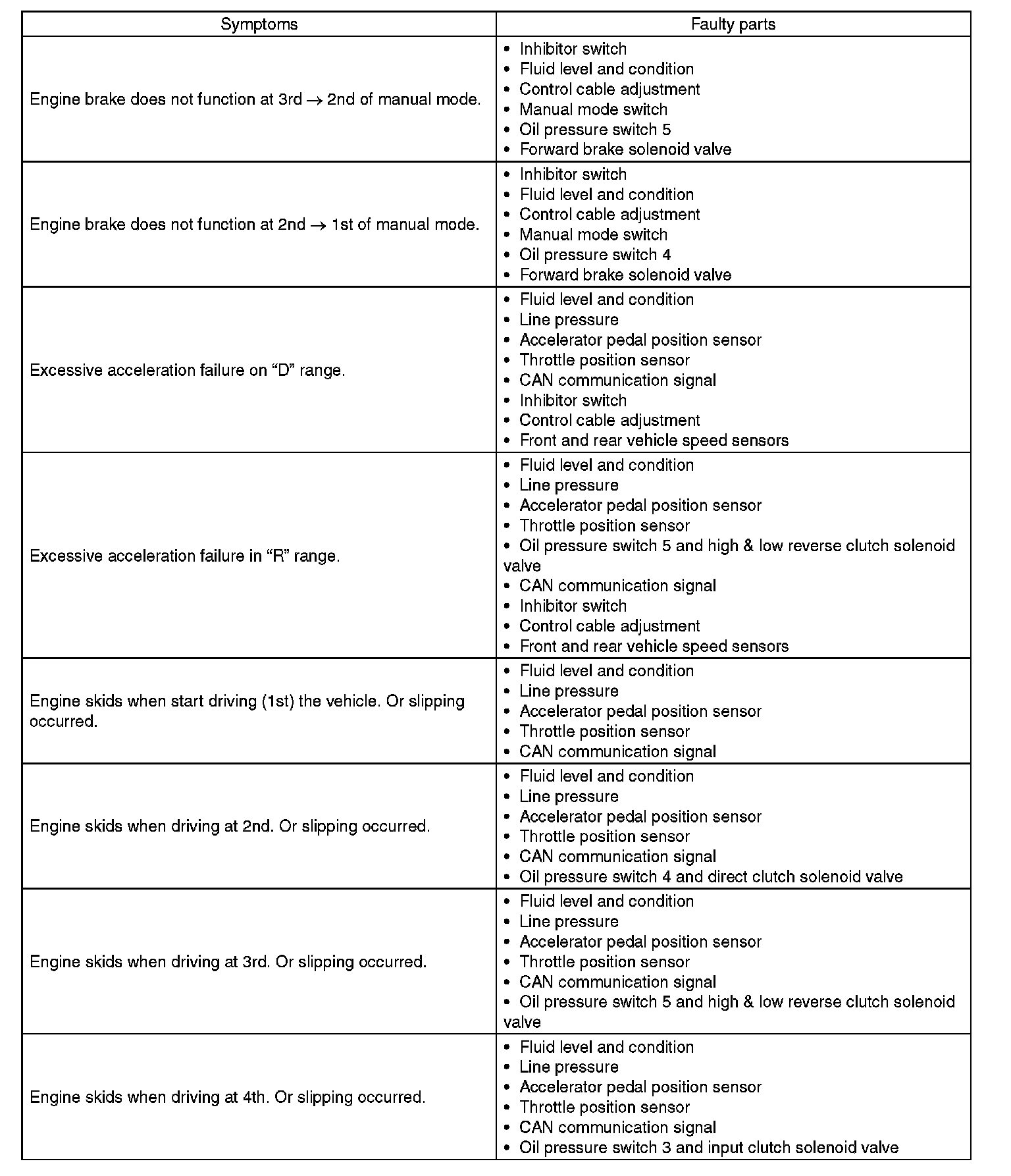

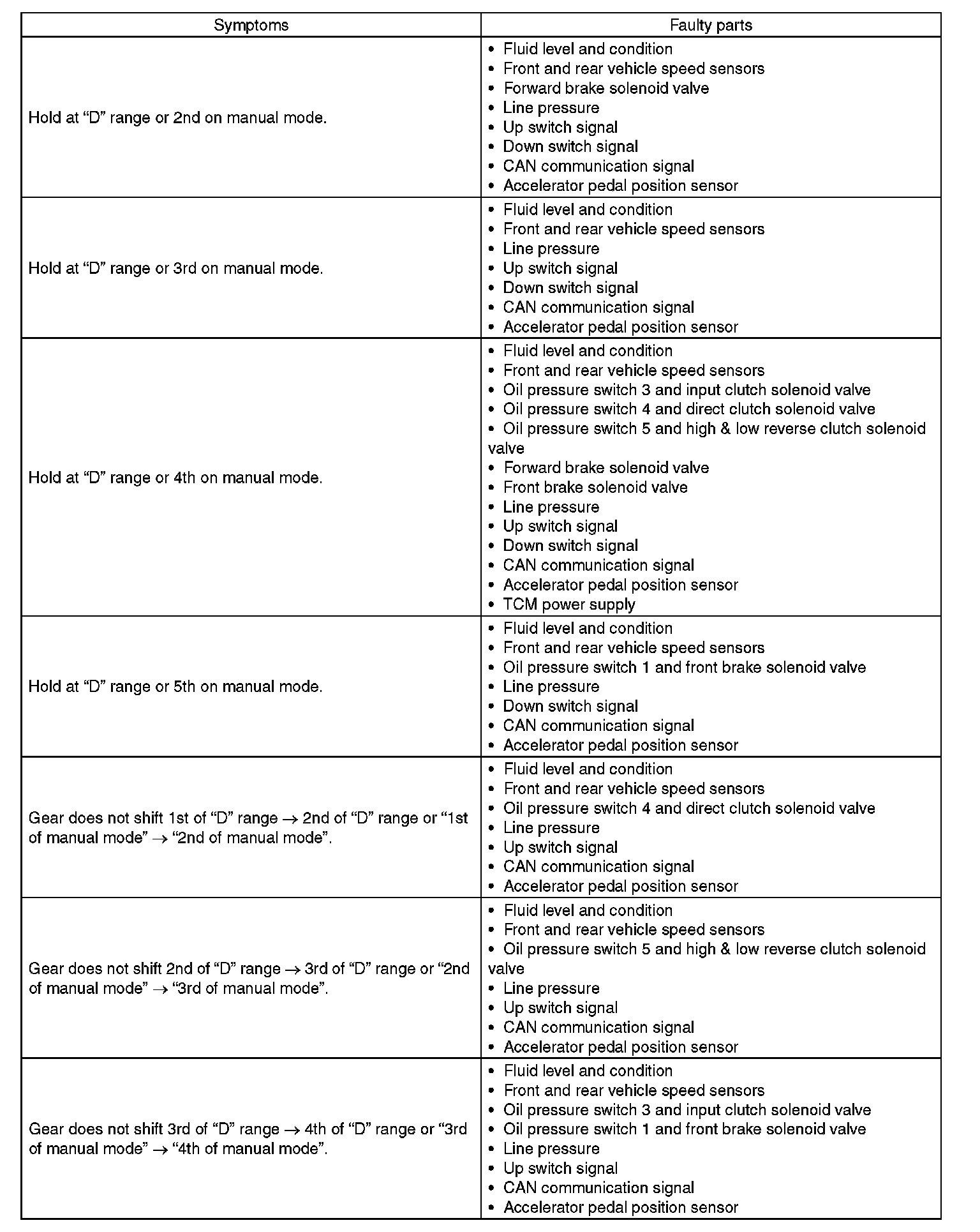

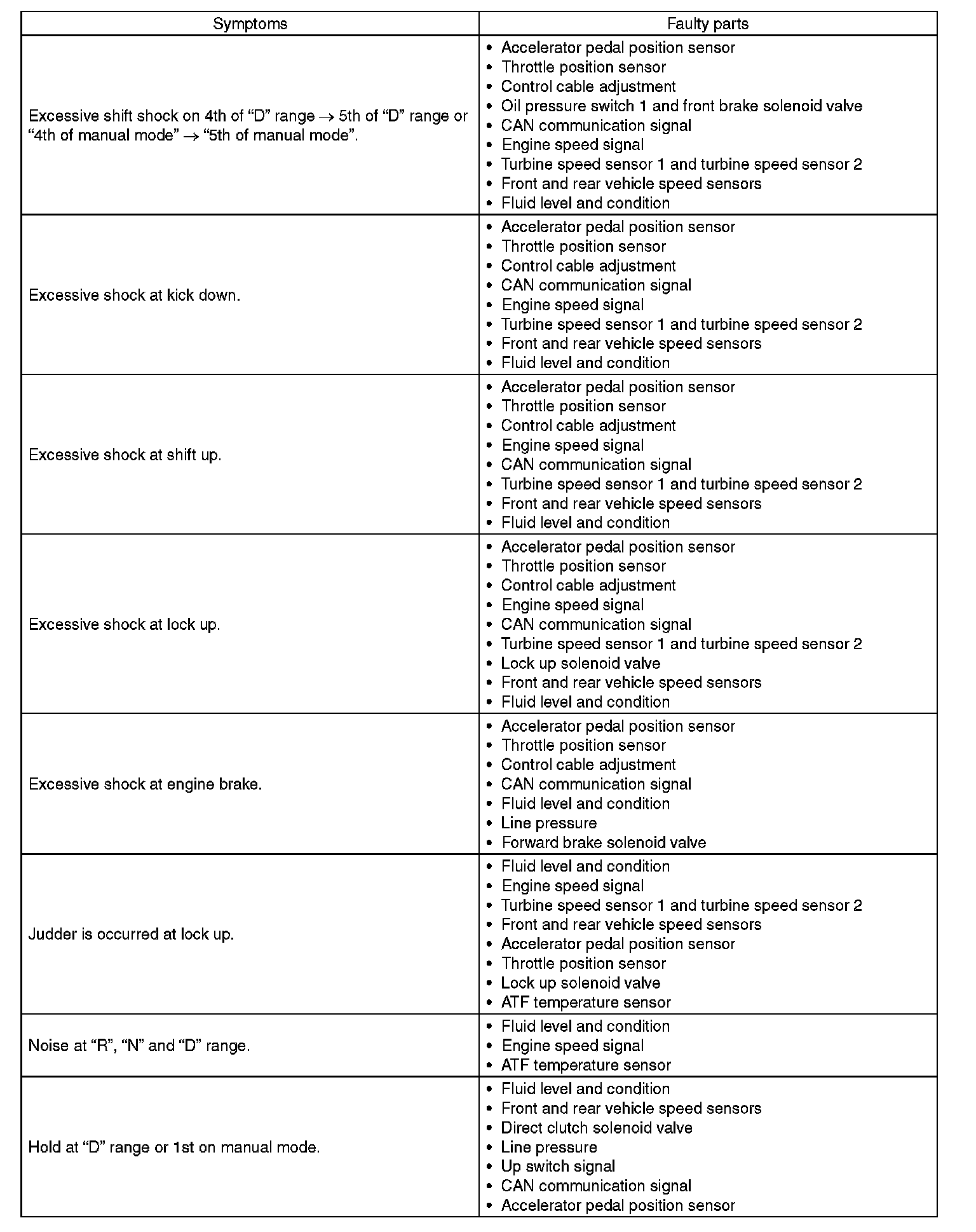

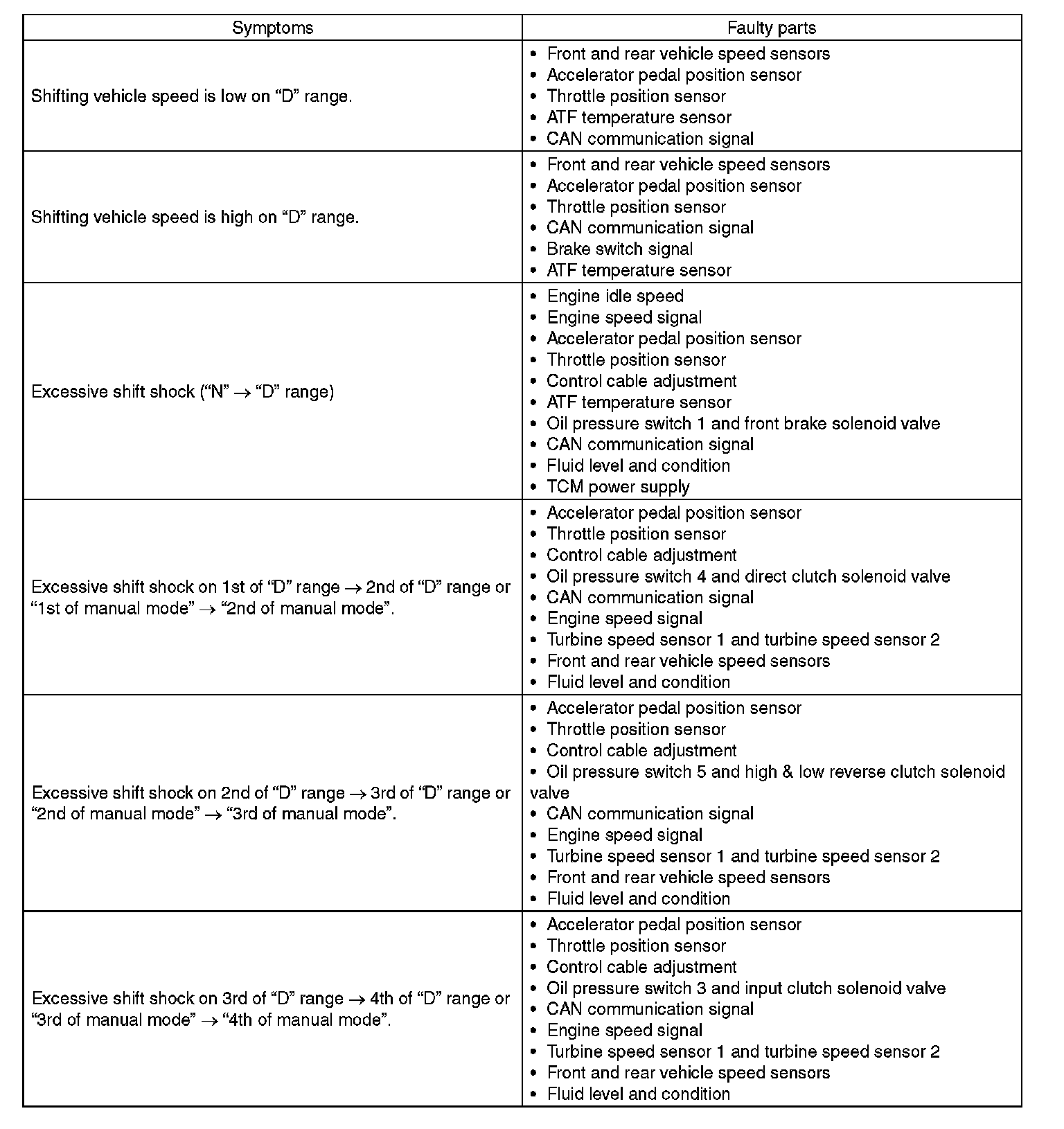

Diagnostics with Phenomenon
INSPECTION
