Removal

Universal Joint

REMOVAL

1) Adjust the tilt position of the steering column to the lowest position and lock the tilt lever.





2) Prevent the steering wheel from turning using the seat belt.

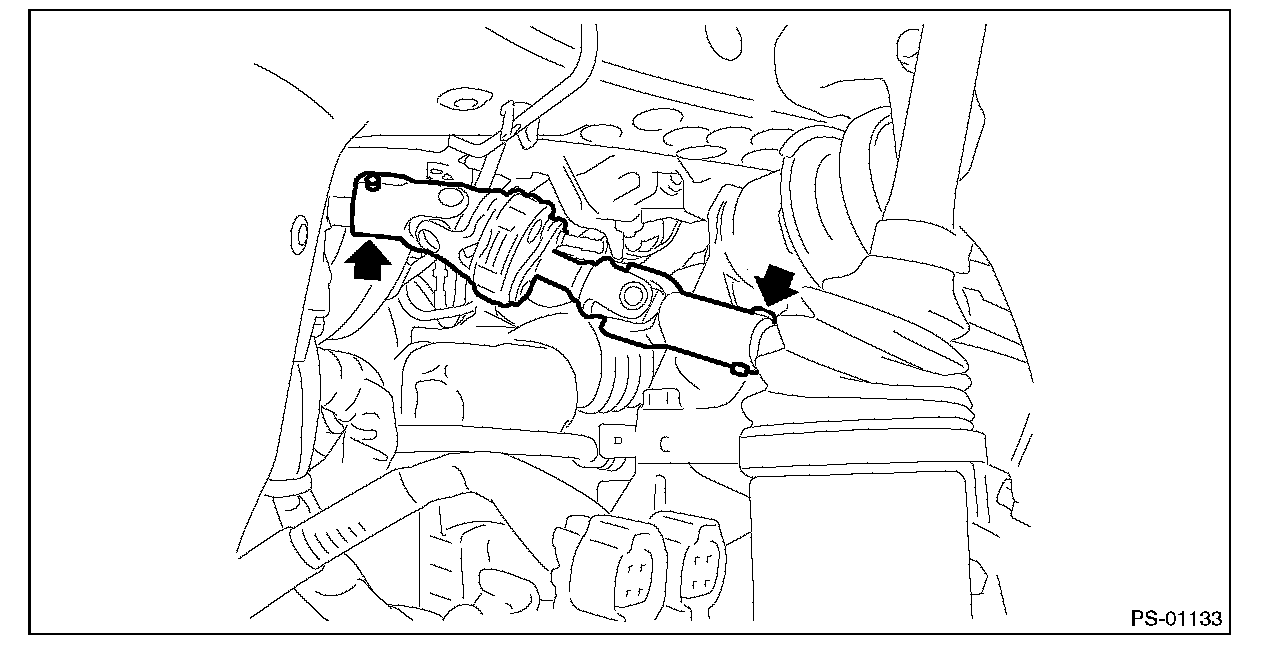

3) Remove the universal joint.
(1) Place alignment marks on universal joint.
(2) Remove the universal joint bolt and remove the universal joint.
